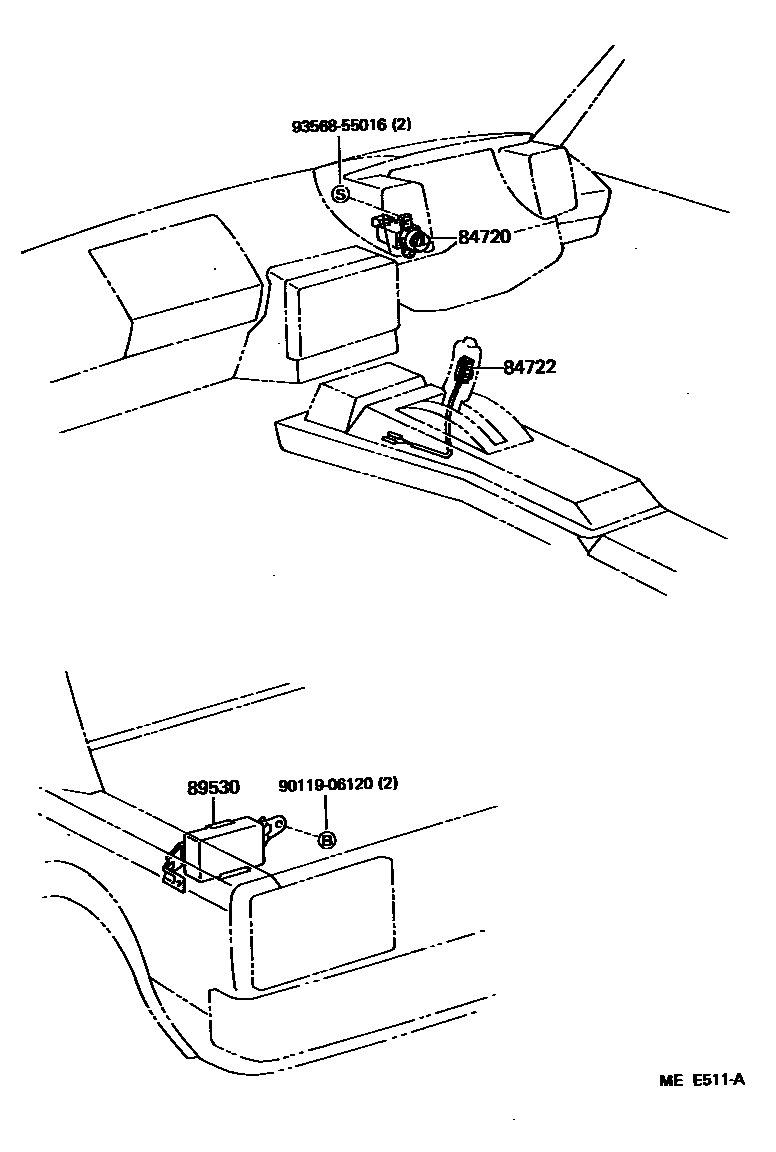

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

84720SWITCH ASSY, PATTERN SELECT

main84720-17010iAW11..4FC198406-198912

84722SWITCH, TRANSMISSION CONTROL

main84722-17010iAW1#..4FC198406-198608

main84722-17030-01iAW1#..4FC198608-198803

BLACK,BLACK

main84722-17030-04iAW1#..4FC198803-198912

DARK BLUE,TRIM8#

main84722-17030-11iAW1#..4FC198808-198912

BLACK,TRIM2#

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-17010iAW11..4FC198406-198608

DENSO

main89530-17020iAW11..4FC198406-198608

AISIN

main89530-17060iAW11..4FC..TWC198608-198709

main89530-17080iAW11..4FC..SPC198608-198709

main89530-17120iAW11..4FC..TWC198709-198912

main89530-17160iAW11..4FC..SPC198709-198912

9011906120

main90119-06120

9356855016

main93568-55016

5 parts on this diagram · 3 diagrams in section
