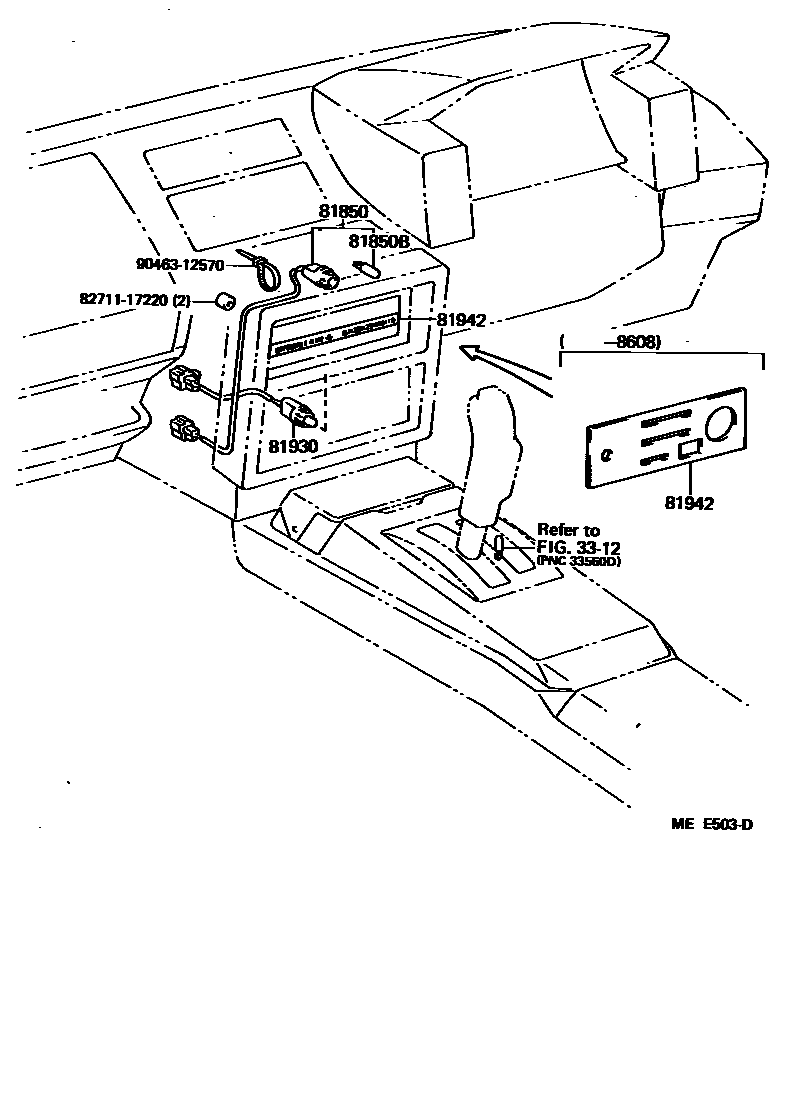

INDICATOR

3312

81850LAMP ASSY, INDICATOR

main81850-17040iAW1#198406-198608

81850BBULB, INDICATOR LAMP

main90981-11014iAW1#198406-198608

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-17010iAW1#198406-198608

81942SHEET, HEATER CONTROL NAME

main81942-17010iAW1#198406-198608

main81942-17020iAW11198406-198608

W/AUTOMATIC AIR CONDITIONER

main81942-17021iAW11198608-198803

W/AUTOMATIC AIR CONDITIONER

main81942-17021iAW11198803-198912

8271117220WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-17220

9046312570

main90463-12570

7 parts on this diagram · 1 diagram in section
