EPC Data

WIRING & CLAMP

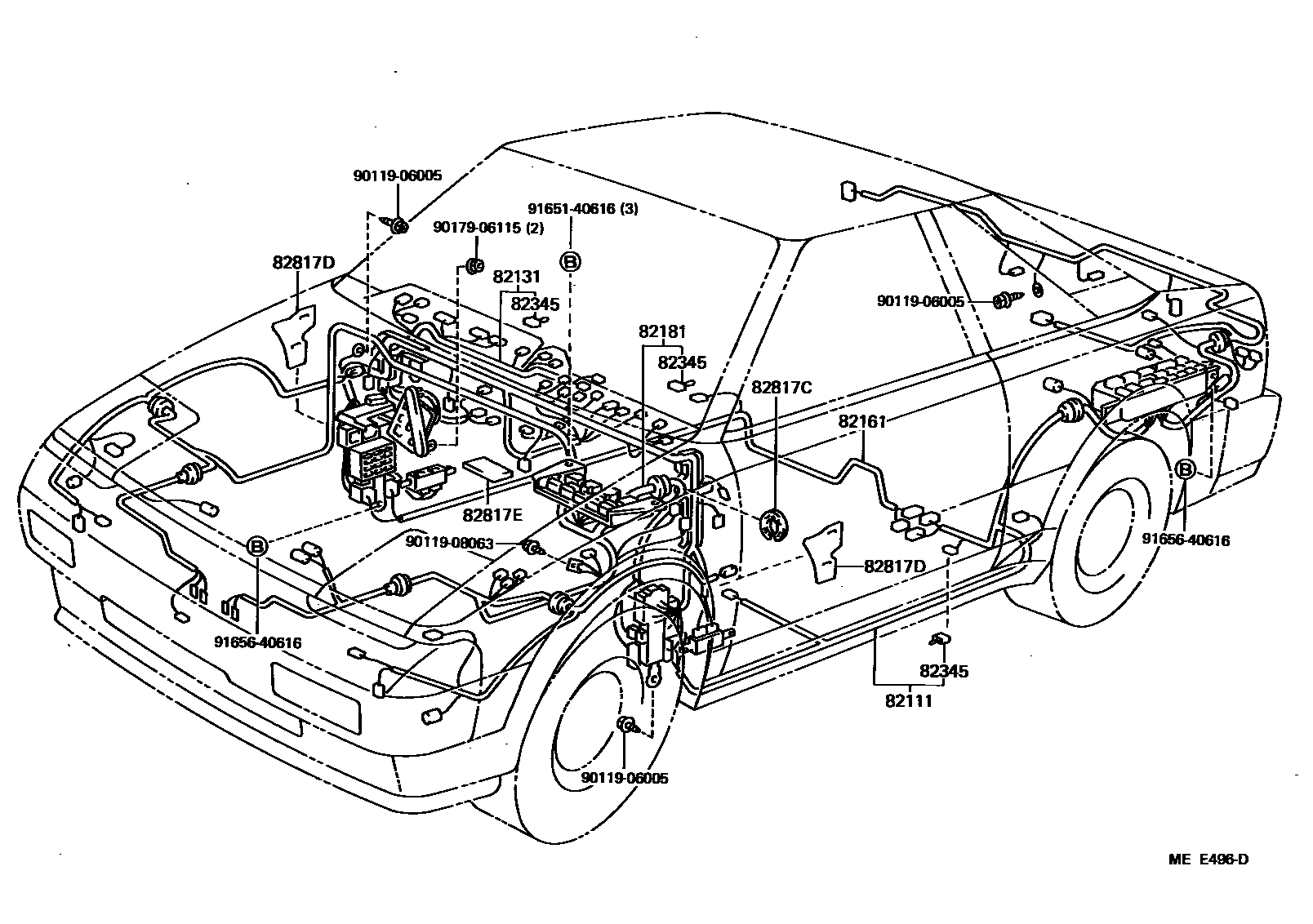

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-17010i198406-198411
main82111-17011i198411-198608
main82111-17020i198406-198411
main82111-17021i198411-198608
main82111-17030i198406-198608
main82111-17040i198406-198608
W/*AD
main82111-17230i198608-198912
main82111-17240i198608-198912
main82111-17250i198608-198709
main82111-17251i198709-198808
main82111-17252i198808-198912
main82111-17260i198608-198709
W/*AD
main82111-17261i198803-198808
main82111-17262i198808-198912
main82111-17270i198608-198709
main82111-17271i198709-198808
main82111-17272i198808-198912
main82111-17280i198608-198709
W/*AD
main82111-17281i198709-198803
W/*AD
main82111-17282i198808-198912
main82111-17290i198608-198912
main82111-17300i198608-198709
W/*AD
main82111-17301i198709-198803
W/*AD
main82111-17310i198608-198709
main82111-17311i198709-198912
main82111-17320i198608-198709
W/*AD
main82111-17321i198709-198803
W/*AD
82131WIRE, COWL
main82131-17010i198406-198407
main82131-17011i198407-198412
main82131-17012i198412-198608
main82131-17020i198406-198407
main82131-17021i198407-198412
main82131-17022i198412-198608
main82131-17030i198406-198407
main82131-17031i198407-198608
main82131-17040i198406-198407
W/*PW OR *AD
main82131-17041i198407-198412
W/*PW OR *AD
main82131-17042i198412-198608
W/*PW OR *AD
main82131-17160i198608-198709
main82131-17161i198709-198912
main82131-17260i198608-198709
main82131-17261i198709-198912
main82131-17270i198608-198709
main82131-17271i198709-198912
main82131-17280i198608-198709
W/*PW OR *AD
main82131-17281i198709-198803
W/*PW OR *AD
main82131-17290i198608-198709
main82131-17291i198709-198912
main82131-17300i198608-198709
W/*PW OR *AD
main82131-17301i198709-198803
W/*PW OR *AD
main82131-17310i198608-198709
main82131-17311i198709-198912
main82131-17320i198608-198709
W/*PW,W/O*AD
main82131-17321i198803-198912
main82131-17330i198608-198709
W/*AD,W/*PW & *AD
main82131-17331i198709-198803
W/*AD,W/*PW & *AD
main82131-17340i198608-198709
main82131-17341i198709-198912
main82131-17350i198608-198709
W/*PW OR *AD
main82131-17351i198803-198912
main82131-17550i198808-198912
main82131-17560i198808-198912
main82131-17570i198808-198912
main82131-17580i198808-198912
main82131-17590i198808-198912
82161WIRE, FLOOR
main82161-17010i198406-198608
main82161-17020i198406-198608
main82161-17030i198406-198608
main82161-17040i198406-198608
W/*AD
main82161-17190i198608-198912
main82161-17200i198608-198912
main82161-17210i198608-198709
main82161-17211i198709-198912
main82161-17220i198608-198709
W/*AD
main82161-17221i198709-198912
main82161-17230i198608-198709
main82161-17231i198709-198912
main82161-17240i198608-198709
W/*AD
main82161-17241i198709-198912
82181WIRE, LUGGAGE ROOM, NO.1
main82181-17010i198406-198608
main82181-17020i198406-198608
main82181-17070i198608-198912
main82181-17100i198608-198709
main82181-17101i198709-198912
82345DIODE
main82345-12050×2i198803-198912
2 POLE CONNECTOR,NO.1
main82345-20060i198709-198803
2 POLE CONNECTOR,NO.2
main82345-22010i198803-198912
4 POLE CONNECTOR
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-20320i198803-198912
82817CPROTECTOR, WIRING HARNESS, NO.4
main82817-32010i198406-198912
82817DPROTECTOR, WIRING HARNESS, NO.5
main82817-17090i198406-198803
82817EPROTECTOR, WIRING HARNESS, NO.6
main82817-91707i198803-198912
9011906005
main90119-06005
9011908063
main90119-08063
9017906115
main90179-06115
9165140616
main91651-40616
9165640616
main91656-40616

14 parts on this diagram · 4 diagrams in section
