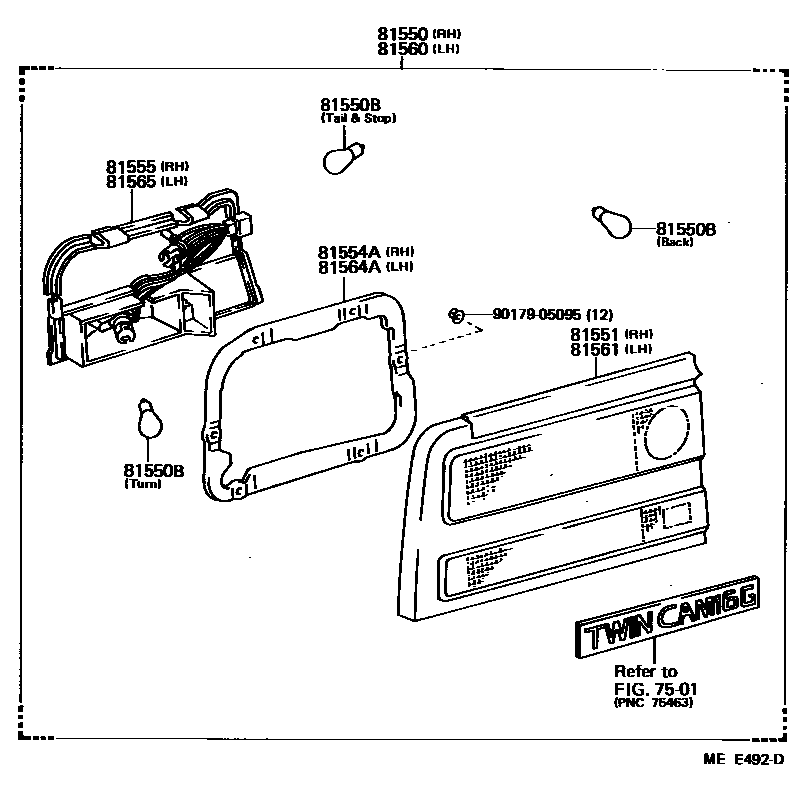

REAR COMBINATION LAMP

0001 1 0002 1

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

81550LAMP ASSY, REAR COMBINATION, RH

main81550-17040iAW1#198608-198912

main81550-80220iAW1#198406-198608

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11075×2iAW1#198608-198803

main99132-11230×4iAW1#198406-198803

main99132-21210×2iAW1#198803-198912

81551LENS, REAR COMBINATION LAMP, RH

main81551-17010iAW1#198406-198608

main81551-17040iAW1#198608-198912

81554AGASKET, REAR COMBINATION LAMP BODY, NO.1 RH

main81554-17010iAW1#198406-198912

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-17010iAW1#198406-198608

main81555-17040iAW1#198608-198912

81560LAMP ASSY, REAR COMBINATION, LH

main81560-17011iAW10198608-198912

main81560-17041iAW11198608-198912

main81560-17080iAW11..5F..SPC198801-198803

SUPER EDITION

main81560-17090iAW1#198901-198912

SUPER EDITION

main81560-80225iAW10198406-198608

main81560-80235iAW11198406-198608

81561LENS, REAR COMBINATION LAMP, LH

main81561-17010iAW10198406-198608

main81561-17011iAW10198608-198912

main81561-17040iAW11198406-198608

main81561-17041iAW11198608-198912

81564AGASKET, REAR COMBINATION LAMP BODY, NO.1 LH

main81554-17010iAW1#198406-198912

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-17010iAW1#198406-198608

main81565-17011iAW1#198608-198912

9017905095

main90179-05095

11 parts on this diagram · 2 diagrams in section
