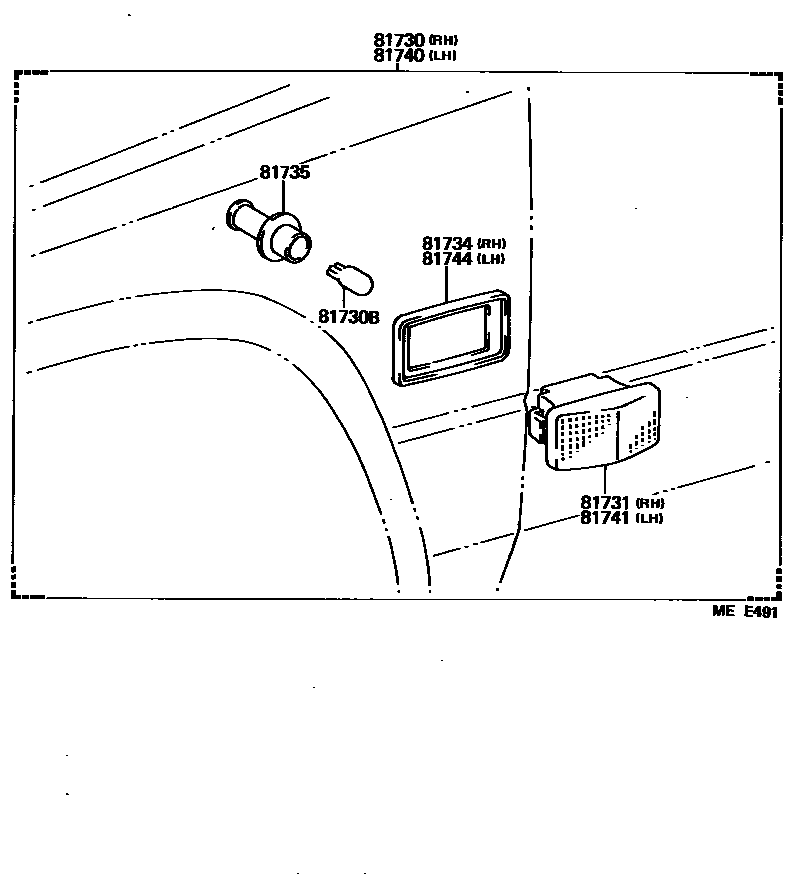

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-17010iAW1#198406-198411

main81730-17011iAW1#198411-198912

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2iAW1#198406-198803

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-17010iAW1#198406-198411

main81731-17011iAW1#198411-198912

81734GASKET, SIDE TURN SIGNAL LAMP BODY, RH

main81732-17010iAW1#198406-198912

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main81735-12180×2iAW1#198406-198912

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-17010iAW1#198406-198411

main81730-17011iAW1#198411-198912

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-17010iAW1#198406-198411

main81731-17011iAW1#198411-198912

81744GASKET, SIDE TURN SIGNAL LAMP BODY, LH

main81732-17010iAW1#198406-198912

8 parts on this diagram · 1 diagram in section
