FRONT TURN SIGNAL LAMP

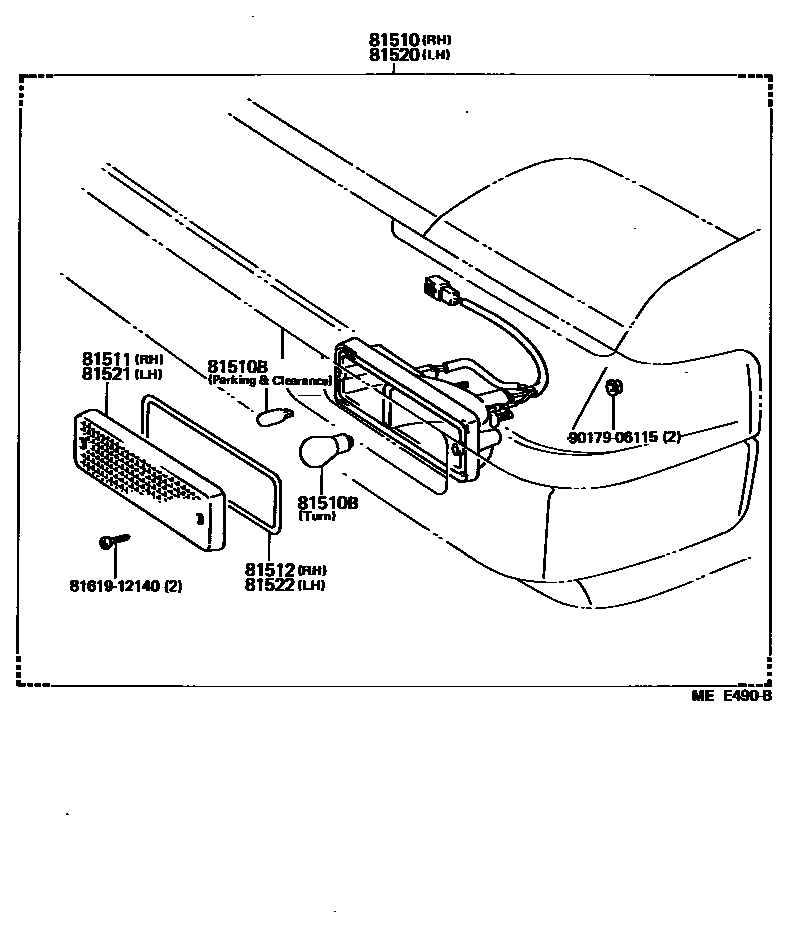

Parts diagram

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-80012i198406-198912

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11230×2i198406-198803

main99132-12050×2i198406-198803

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-22221i198406-198912

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14140i198406-198912

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-80012i198406-198912

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-22221i198406-198912

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14140i198406-198912

8161912140

main81619-12140

9017906115

main90179-06115

9 parts on this diagram · 1 diagram in section
