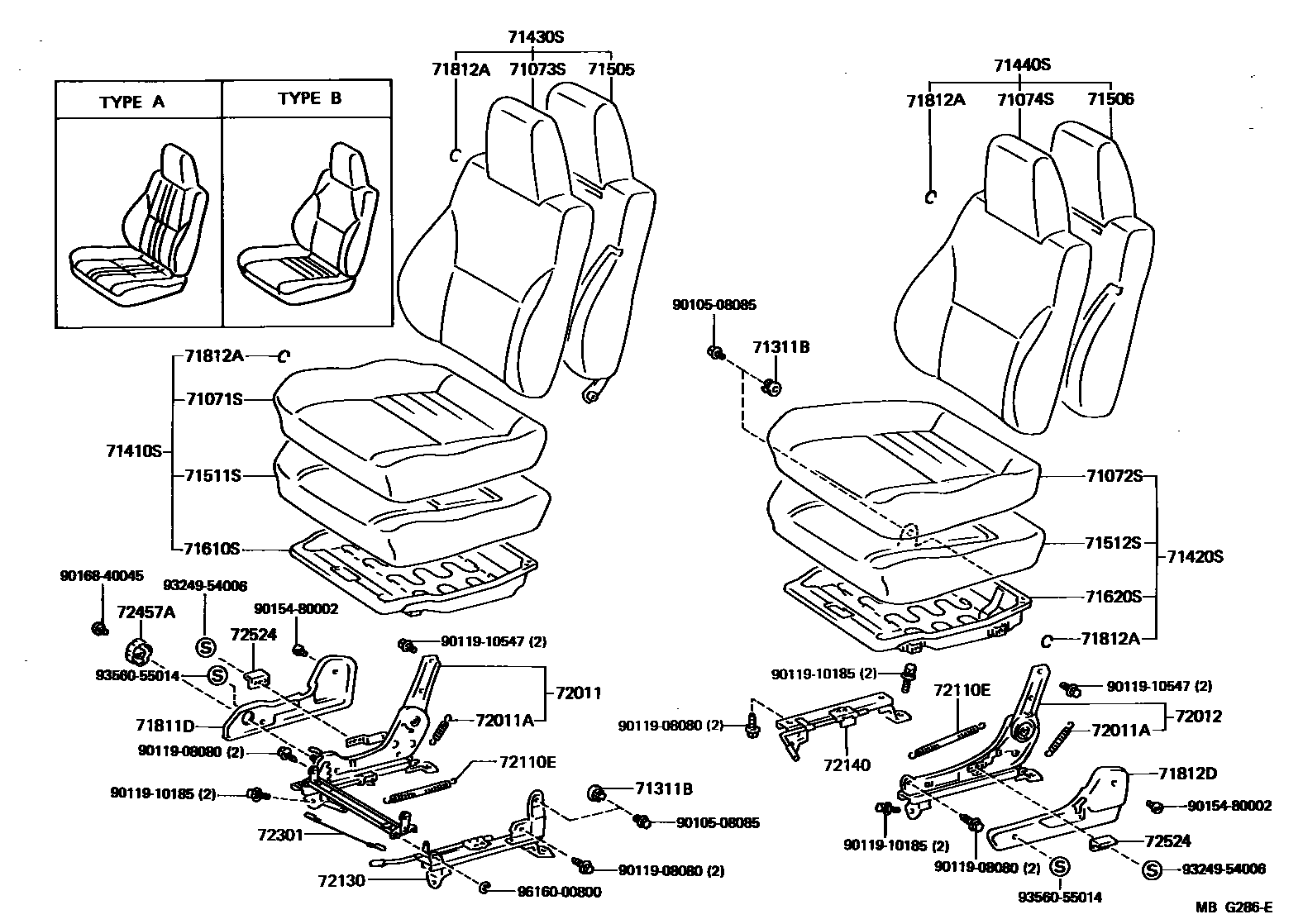

FRONT SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
FB,TYPE A,BLACK & RED,BLACK/RED
FB,TYPE A,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & YELLOW,BLACK/YELLOW
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & GRAY,BLACK/GRAY
FB,TYPE B,BLACK & BEIGE,BLACK/BEIGE
FB,W/*SPS,BLACK & RED,BLACK/RED
FB,W/*SPS,BLACK & BLUE,BLACK/SKY BLUE
FB,W/*SPS,BLACK & YELLOW,BLACK/YELLOW
FB,W/*SPS,BLACK & RED,BLACK/RED
WHITE LANNER,FB,*SPS,BLACK&RED,BLACK/RED
FB,W/*SPS,BLACK & GRAY,BLACK/GRAY
FB,W/*SPS,BLACK & BEIGE,BLACK/BEIGE
BLACK LIMITED,GRAY,GRAY
FB,BLACK,BLACK
BLACK,TRIM2#
FB,BLUE,DARK BLUE
DARK BLUE,TRIM8#
BLACK,TRIM2#
BLUE,TRIM8#
FB,W/*SPS,BLACK,BLACK
FB,W/*SPS,BLUE,DARK BLUE
DARK BLUE,TRIM8#
SUPER EDITION,BLACK,BLACK
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
FB,TYPE A,BLACK & RED,BLACK/RED
FB,TYPE A,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & YELLOW,BLACK/YELLOW
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B, BLACK & GRAY,BLACK/GRAY
FB,TYPE B, BLACK & BEIGE,BLACK/BEIGE
FB,W/*SPS,BLACK & RED,BLACK/RED
FB,W/*SPS,BLACK & BLUE,BLACK/SKY BLUE
FB,W/*SPS,BLACK & YELLOW,BLACK/YELLOW
WHITE LANNER,FB,*SPS,BLACK&RED,BLACK/RED
FB,W/*SPS,BLACK & RED,BLACK/RED
FB,W/*SPS,BLACK & GRAY,BLACK/GRAY
FB,W/*SPS,BLACK & BEIGE,BLACK/BEIGE
BLACK LIMITED,GRAY,GRAY
BLACK,TRIM2#
FB,BLACK,BLACK
FB,BLUE,DARK BLUE
DARK BLUE,TRIM8#
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,W/*SPS,BLACK,BLACK
FB,W/*SPS,BLUE,DARK BLUE
BLUE,TRIM8#
SUPER EDITION,BLACK,BLACK
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
FB,TYPE A,BLACK & RED,BLACK/RED
FB,TYPE A,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & YELLOW,BLACK/YELLOW
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & GRAY,BLACK/GRAY
FB,TYPE B,BLACK & BEIGE,BLACK/BEIGE
FB,W/*SPS,BLACK & RED,BLACK/RED
FB,W/*SPS,BLACK & BLUE,BLACK/BLUE
FB,W/*SPS,BLACK & BEIGE,BLACK/BEIGE
FB,W/*SPS,BLACK & YELLOW,BLACK/YELLOW
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & YELLOW,BLACK/YELLOW
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & GRAY,BLACK/GRAY
FB,TYPE B,BLACK & BEIGE,BLACK/BEIGE
WHITE LANNER,FB,*SPS,BLACK&RED,BLACK/RED
FB,W/*SPS,BLACK & RED,BLACK/RED
FB,W/*SPS,BLACK & GRAY,BLACK/GRAY
FB,W/*SPS,BLACK & BEIGE,BLACK/BEIGE
BLACK LIMITED,GRAY,GRAY
BLACK,TRIM2#
FB,BLACK,BLACK
DARK BLUE,TRIM8#
FB,BLUE,DARK BLUE
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,W/*SPS,BLACK,BLACK
FB,W/*SPS,BLUE,DARK BLUE
FB,BLACK,BLACK
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,BLUE,DARK BLUE
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,W/*SPS,BLACK,BLACK
FB,W/*SPS,BLUE,DARK BLUE
SUPER EDITION,BLACK,BLACK
SUPER EDITION,BLACK,BLACK
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
FB,TYPE A,BLACK & RED,BLACK/RED
FB,TYPE A,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & YELLOW,BLACK/YELLOW
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & GRAY,BLACK/GRAY
FB,TYPE B,BLACK & BEIGE,BLACK/BEIGE
FB,W/*SPS,BLACK & RED,BLACK/RED
FB,W/*SPS,BLACK & BLUE,BLACK/BLUE
FB,W/*SPS,BLACK & BEIGE,BLACK/BEIGE
FB,W/*SPS,BLACK & YELLOW,BLACK/YELLOW
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & YELLOW,BLACK/YELLOW
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & GRAY,BLACK/GRAY
FB,TYPE B,BLACK & BEIGE,BLACK/BEIGE
WHITE LANNER,FB,*SPS,BLACK&RED,BLACK/RED
FB,W/*SPS,BLACK & RED,BLACK/RED
FB,W/*SPS,BLACK & GRAY,BLACK/GRAY
FB,W/*SPS,BLACK & BEIGE,BLACK/BEIGE
BLACK LIMITED,GRAY,GRAY
FB,BLACK,BLACK
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,BLUE,DARK BLUE
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,W/*SPS,BLACK,BLACK
FB,W/*SPS,BLUE,DARK BLUE
FB,BLACK,BLACK
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,DARK BLUE,DARK BLUE
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,W/*SPS,BLACK,BLACK
FB,W/*SPS,DARK BLUE,DARK BLUE
SUPER EDITION,BLACK,BLACK
SUPER EDITION,BLACK,BLACK
71311BBUSH (FOR FRONT SEAT HINGE PIN)
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
FB,TYPE A,BLACK & RED,BLACK/RED
FB,TYPE A,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & YELLOW,BLACK/YELLOW
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & GRAY,BLACK/GRAY
FB,TYPE B,BLACK & BEIGE,BLACK/BEIGE
FB,W/*SPS,BLACK & RED,BLACK/RED
FB,W/*SPS,BLACK & BLUE,BLACK/SKY BLUE
FB,W/*SPS,BLACK & YELLOW,BLACK/YELLOW
FB,W/*SPS,BLACK & RED,BLACK/RED
FB,W/*SPS,BLACK & GRAY,BLACK/GRAY
FB,W/*SPS,BLACK & BEIGE,BLACK/BEIGE
FB,BLACK,BLACK
BLACK,TRIM2#
FB,BLUE,DARK BLUE
DARK BLUE,TRIM8#
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,W/*SPS,BLACK,BLACK
FB,W/*SPS,BLUE,DARK BLUE
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
FB,TYPE A,BLACK & RED,BLACK/RED
FB,TYPE A,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & YELLOW,BLACK/YELLOW
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & GRAY,BLACK/GRAY
FB,TYPE B,BLACK & BEIGE,BLACK/BEIGE
FB,W/*SPS,BLACK & RED,BLACK/RED
FB,W/*SPS,BLACK & BLUE,BLACK/SKY BLUE
FB,W/*SPS,BLACK & YELLOW,BLACK/YELLOW
FB,W/*SPS,BLACK & RED,BLACK/RED
FB,W/*SPS,BLACK & GRAY,BLACK/GRAY
FB,W/*SPS,BLACK & BEIGE,BLACK/BEIGE
FB,BLACK,BLACK
BLACK,TRIM2#
FB,BLUE,DARK BLUE
DARK BLUE,TRIM8#
DARK BEIGE,TRIM8#
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,W/*SPS,BLACK,BLACK
FB,W/*SPS,BLUE,DARK BLUE
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
FB,TYPE A,BLACK & RED,BLACK/RED
FB,TYPE A,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & YELLOW,BLACK/YELLOW
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & GRAY,BLACK/GRAY
FB,TYPE B,BLACK & BEIGE,BLACK/BEIGE
FB,W/*SPS,BLACK & RED,BLACK/RED
FB,W/*SPS,BLACK & BLUE,BLACK/BLUE
FB,W/*SPS,BLACK & BEIGE,BLACK/BEIGE
FB,W/*SPS,BLACK & YELLOW,BLACK/YELLOW
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & GRAY,BLACK/GRAY
FB,TYPE B,BLACK & BEIGE,BLACK/BEIGE
FB,W/*SPS,BLACK & RED,BLACK/RED
FB,W/*SPS,BLACK & GRAY,BLACK/GRAY
FB,W/*SPS,BLACK & BEIGE,BLACK/BEIGE
FB,BLACK,BLACK
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,BLUE,DARK BLUE
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,W/*SPS,BLACK,BLACK
FB,W/*SPS,BLUE,DARK BLUE
FB,BLACK,BLACK
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,BLUE,DARK BLUE
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,W/*SPS,BLACK,BLACK
FB,W/*SPS,BLUE,DARK BLUE
DARK BEIGE,TRIM8#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
FB,TYPE A,BLACK & RED,BLACK/RED
FB,TYPE A,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & YELLOW,BLACK/YELLOW
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & GRAY,BLACK/GRAY
FB,TYPE B,BLACK & BEIGE,BLACK/BEIGE
FB,W/*SPS,BLACK & RED,BLACK/RED
FB,W/*SPS,BLACK & BLUE,BLACK/BLUE
FB,W/*SPS,BLACK & BEIGE,BLACK/BEIGE
FB,W/*SPS,BLACK & YELLOW,BLACK/YELLOW
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & BLUE,BLACK/BLUE
FB,TYPE B,BLACK & YELLOW,BLACK/YELLOW
FB,TYPE B,BLACK & RED,BLACK/RED
FB,TYPE B,BLACK & GRAY,BLACK/GRAY
FB,TYPE B,BLACK & BEIGE,BLACK/BEIGE
FB,W/*SPS,BLACK & RED,BLACK/RED
FB,W/*SPS,BLACK & GRAY,BLACK/GRAY
FB,W/*SPS,BLACK & BEIGE,BLACK/BEIGE
BLACK,TRIM2#
FB,BLACK,BLACK
FB,BLUE,DARK BLUE
DARK BLUE,TRIM8#
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,W/*SPS,BLACK,BLACK
FB,W/*SPS,BLUE,DARK BLUE
FB,BLACK,BLACK
BLACK,TRIM2#
FB,BLUE,DARK BLUE
DARK BLUE,TRIM8#
BLACK,TRIM2#
DARK BLUE,TRIM8#
FB,W/*SPS,BLACK,BLACK
FB,W/*SPS,BLUE,DARK BLUE
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
W/*SPS
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
W/*SPS
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
W/*SPS
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
W/*SPS
W/*SPS
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71811DSHIELD, FRONT SEAT CUSHION, RH
BLACK,TRIM2#
BLACK,BLACK
BLUE,DEEP BLUE
BLACK,TRIM2#
DARK BLUE,TRIM8#
71812ARING, HOG, SMALL (FOR FRONT SEAT)
71812DSHIELD, FRONT SEAT CUSHION, LH
BLACK,BLACK
BLACK,TRIM2#
BLUE,BLUE
BLACK,TRIM2#
DARK BLUE,TRIM8#
72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011ASPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
72012ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)
72130TRACK ASSY, RH SEAT, INNER
72140TRACK ASSY, LH SEAT, INNER
72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72457AKNOB, SEAT ADJUSTER
BLACK,BLACK
BLACK,TRIM2#
BLUE,DEEP BLUE
BLACK,TRIM2#
DARK BLUE,TRIM8#
72524HANDLE, RECLINING ADJUSTER RELEASE
RH,BLACK,BLACK
RH,BLUE,DARK BLUE
LH,BLACK,BLACK
LH,BLUE,DARK BLUE
9010508085
main90105-08085
9011908080
main90119-08080
9011910185
main90119-10185
9011910547
main90119-10547
9015480002
main90154-80002
9016840045
main90168-40045
9324954006
main93249-54006
9356055014
main93560-55014
9616000800
main96160-00800
36 parts on this diagram · 3 diagrams in section
