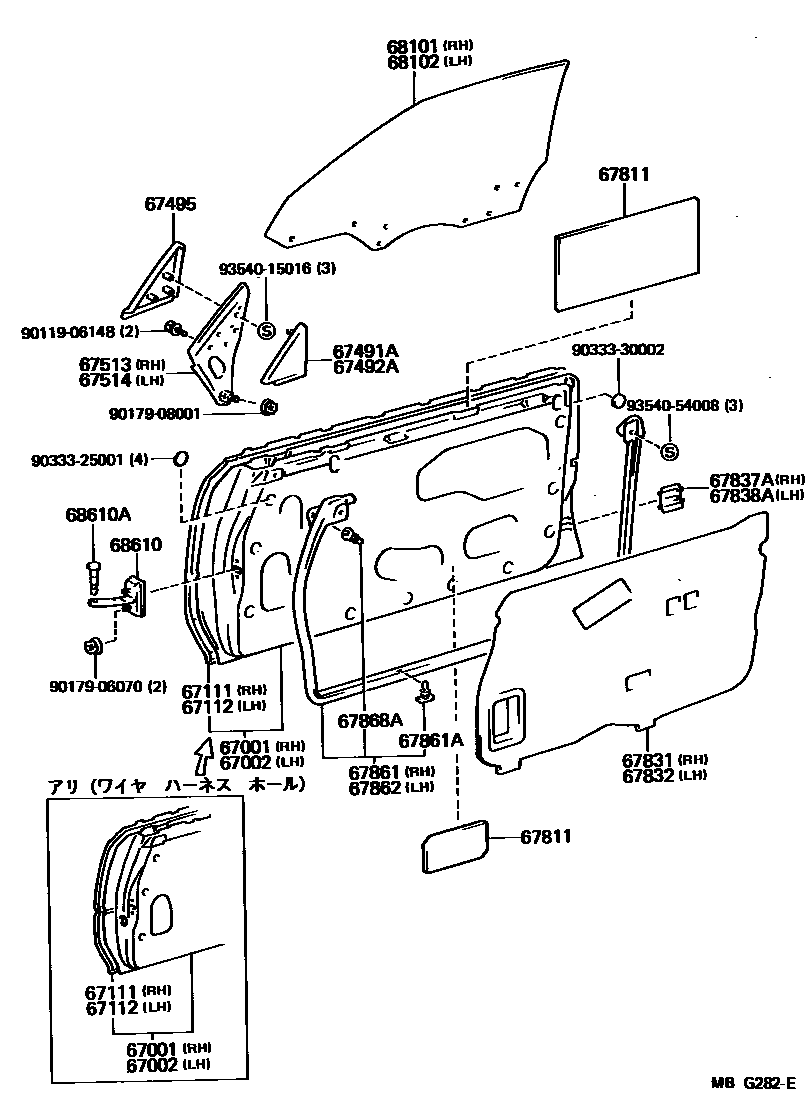

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
67513BRACKET, FRONT DOOR MIRROR, RH
67514BRACKET, FRONT DOOR MIRROR, LH
67811PAD, FRONT DOOR SILENCER
200 X 110
350X200
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837ASEAL, FRONT DOOR VENT, RH
COLD SPEC
67838ASEAL, FRONT DOOR VENT, LH
COLD SPEC
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
9011906148
main90119-06148
9017906070
main90179-06070
9017908001
main90179-08001
9033325001
main90333-25001
9033330002
main90333-30002
9354015016
main93540-15016
9354054008
main93540-54008
29 parts on this diagram · 3 diagrams in section
