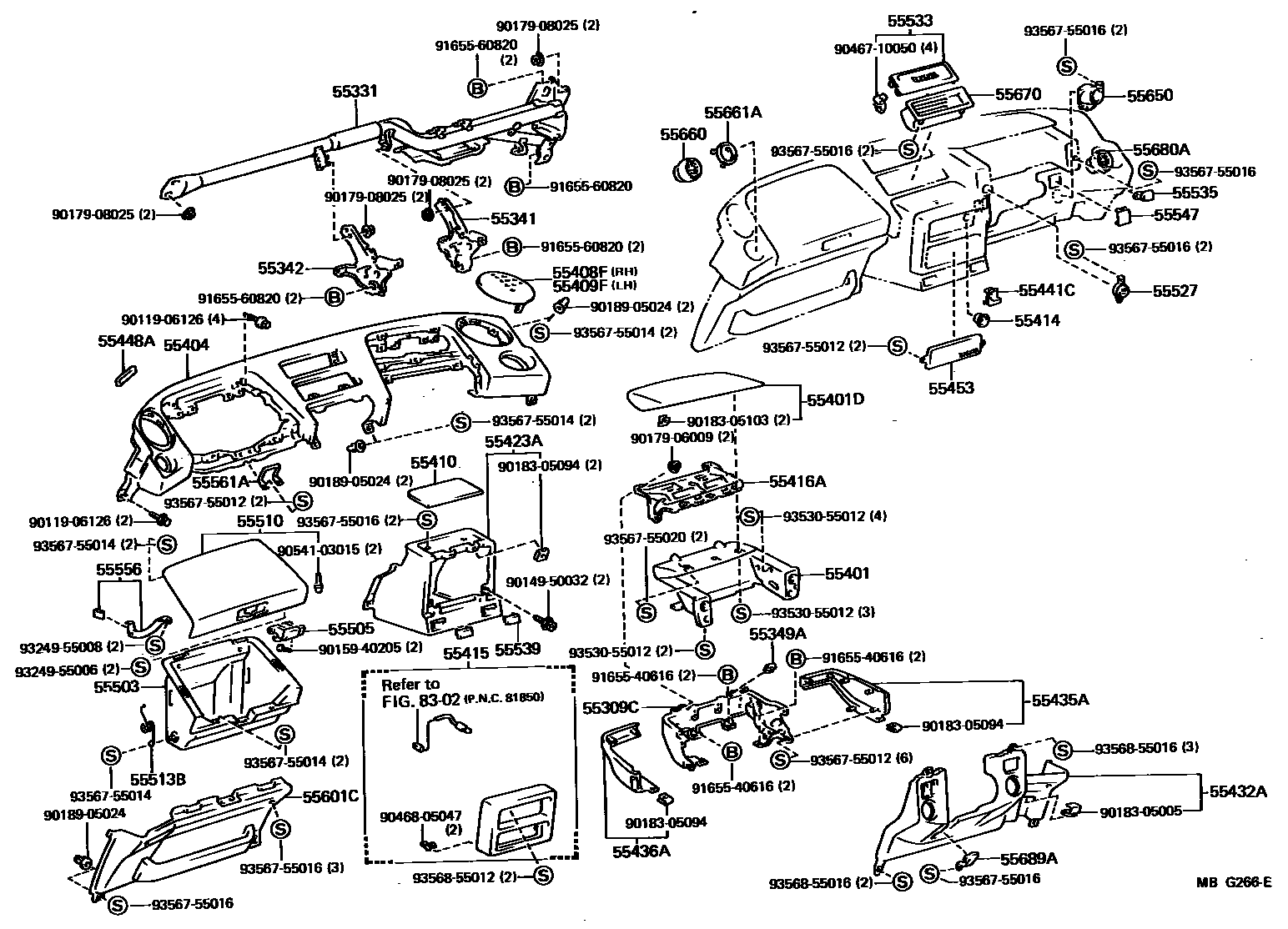

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55309CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER

main55309-17010iAW1#198406-198912

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-17010iAW1#198406-198912

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-17010iAW1#198406-198608

main55306-17020iAW1#198608-198912

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-17010iAW1#198406-198608

main55307-17020iAW1#198608-198912

55349ACUSHION, INSTRUMENT PANEL

main55349-14050×2iAW1#198406-198803

TYPE A

main55349-17010×6iAW1#198608-198803

TYPE B

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55411-17030iAW1#198406-198912

55401DPANEL, INSTRUMENT CLUSTER FINISH, UPPER

main55421-17010-01iAW1#198406-198803

BLACK,BLACK

main55421-17010-04iAW1#198803-198912

DARK BLUE,TRIM8#

main55421-17010-11iAW1#198808-198912

BLACK,TRIM2#

main55421-17020-01iAW11198803-198808

main55421-17020-04iAW11198803-198912

main55421-17020-11iAW11198808-198912

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-17010-01iAW1#198406-198803

BLACK,BLACK

main55401-17010-04iAW1#198803-198912

DARK BLUE,TRIM8#

main55401-17010-11iAW1#198808-198912

BLACK,TRIM2#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-17010-01iAW1#198803-198808

BLACK,TRIM2#

main55408-17010-04iAW1#198803-198912

DARK BLUE,TRIM8#

main55408-17010-11iAW1#198808-198912

BLACK,TRIM2#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-17010-01iAW1#198803-198808

BLACK,TRIM2#

main55409-17010-04iAW1#198709-198803

BLUE,DARK BLUE

main55409-17010-11iAW1#198808-198912

BLACK,TRIM2#

55410PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-17010-04iAW1#198709-198803

BLUE,DARK BLUE

main55404-17010-11iAW1#198406-198803

BLACK,BLACK

55414BEZEL, CIGAR LIGHTER HOLE

main55477-12060iAW1#198406-198608

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-17010-01iAW1#198406-198608

BLACK,BLACK

main55405-17020-01iAW1#198803-198808

BLACK,TRIM2#

main55405-17020-04iAW1#198709-198803

BLUE,DARK BLUE

main55405-17020-11iAW1#198808-198912

BLACK,TRIM2#

55416ARETAINER, METER HOOD, NO.1

main55416-17010iAW1#198406-198912

55423APANEL, RADIO TUNER FINISH

main55424-17010-01iAW1#198406-198608

BLACK,BLACK

main55424-17020-01iAW1#198608-198803

BLACK,BLACK

main55424-17020-04iAW1#198709-198803

BLUE,DARK BLUE

main55424-17020-11iAW1#198808-198912

BLACK,TRIM2#

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-17010-01iAW1#198406-198803

BLACK,BLACK

main55432-17010-04iAW1#198709-198803

BLUE,DARK BLUE

main55432-17010-11iAW1#198808-198912

BLACK,TRIM2#

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-17010-01iAW1#198406-198608

BLACK,BLACK

main55435-17011-01iAW1#198803-198808

BLACK,TRIM2#

main55435-17011-04iAW1#198709-198803

BLUE,DARK BLUE

main55435-17011-11iAW1#198808-198912

BLACK,TRIM2#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-17010-01iAW1#198406-198608

BLACK,BLACK

main55436-17011-01iAW1#198608-198803

BLACK,BLACK

main55436-17011-04iAW1#198709-198803

BLUE,DARK BLUE

main55436-17011-11iAW1#198808-198912

BLACK,TRIM2#

55441BOX, INSTRUMENT PANEL

main55440-19015iAW1#198608-198803

55441CBOX, INSTRUMENT PANEL COIN

main55441-20140-01iAW1#198803-198808

BLACK,TRIM2#

main55441-20140-11iAW1#198808-198912

BLACK,TRIM2#

main55441-20140-34iAW1#198709-198803

BLUE,DARK BLUE

main55441-32030iAW1#198406-198608

55448ACUSHION, INSTRUMENT PANEL FINISH, NO.1

main55448-16040×4iAW1#198406-198912

55453COVER, RADIO TUNER OPENING

main55522-12100iAW1#198406-198608

main55522-32010iAW1#198608-198912

55503COMPARTMENT SUB-ASSY, GLOVE

main55506-17010iAW1#198406-198912

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-17010-01iAW1#198406-198608

BLACK,BLACK

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-17010-01iAW1#198406-198608

BLACK,BLACK

main55550-17020-01iAW1#198608-198803

BLACK,BLACK

main55550-17020-04iAW1#198709-198803

BLUE,DARK BLUE

main55550-17020-11iAW1#198808-198912

BLACK,TRIM2#

55513BSPRING, TORSION(FOR GLOVE COMPARTMENT DOOR CHECK ARM)

main90508-23081iAW1#198406-198912

55527COVER, TRANSMISSION CONTROL SWITCH HOLE

main55527-17010iAW10; AW11..5F198406-198803

55533COVER, AUTO CLOCK HOLE

main55533-17010iAW10198406-198608

55535COVER, WARNING LAMP HOLE

main55534-17010iAW1#198406-198912

55539COVER, SPARE SWITCH HOLE

main55539-32010-01×2iAW1#198406-198608

BLACK,BLACK

main55539-32010-11iAW1#198808-198912

BLACK,TRIM2#

main55539-32010-34iAW1#198803-198912

DARK BLUE,TRIM8#

55547COVER, REMOTE CONTROL MIRROR HOLE

main74267-24010-01iAW10; AW11198803-198808

BLACK,TRIM2#

main74267-24010-04iAW1#198709-198803

BLUE,BLUE

main74267-24010-11iAW10; AW11198808-198912

BLACK,TRIM2#

main74267-24010-34iAW10; AW11198803-198912

DARK BLUE,TRIM8#

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-17010iAW1#198406-198912

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-17010iAW1#198406-198608

main55561-17011iAW1#198608-198912

55601CTRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-17010-01iAW1#198406-198803

BLACK,BLACK

main55601-17010-04iAW1#198709-198803

BLUE,DARK BLUE

main55601-17010-11iAW1#198808-198912

BLACK,TRIM2#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-17010×2iAW1#198406-198608

main55650-17010-01×2iAW1#198803-198808

BLACK,TRIM2#

main55650-17010-04×2iAW1#198803-198912

DARK BLUE,TRIM8#

main55650-17010-11×2iAW1#198808-198912

BLACK,TRIM2#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-17010iAW1#198406-198608

main55660-17020-01iAW1#198608-198803

BLACK,BLACK

main55660-17020-04iAW1#198803-198912

DARK BLUE,TRIM8#

main55660-17020-11iAW1#198808-198912

BLACK,TRIM2#

55661ABEZEL, INSTRUMENT PANEL REGISTER

main55661-17010iAW1#198406-198608

main55661-17010-01iAW1#198803-198808

BLACK,TRIM2#

main55661-17010-04iAW1#198709-198803

BLUE,DARK BLUE

main55661-17010-11iAW1#198808-198912

BLACK,TRIM2#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-17010iAW1#198406-198608

main55670-17010-01iAW1#198803-198808

BLACK,TRIM2#

main55670-17010-04iAW1#198803-198912

DARK BLUE,TRIM8#

main55670-17010-11iAW1#198808-198912

BLACK,TRIM2#

55680AREGISTER ASSY, INSTRUMENT PANEL, NO.4

main55680-17010-01iAW1#198406-198608

BLACK,BLACK

main55680-17030-01iAW1#198803-198808

BLACK,TRIM2#

main55680-17030-04iAW1#198709-198803

BLUE,DARK BLUE

main55680-17030-11iAW1#198808-198912

BLACK,TRIM2#

55689ACOVER, STEERING COLUMN UPPER STAY

main55689-17010-01iAW1#198406-198608

BLACK,BLACK

8302INDICATOR

→ Go to FIG 83-02

9011906126

main90119-06126

9014950032

main90149-50032

9015940205

main90159-40205

9017906009

main90179-06009

9017908025

main90179-08025

9018305005

main90183-05005

9018305094

main90183-05094

9018305103

main90183-05103

9018905024

main90189-05024

9046710050

main90467-10050

9046805047

main90468-05047

9054103015

main90541-03015

9165540616

main91655-40616

9165560820

main91655-60820

9324955006

main93249-55006

9324955008

main93249-55008

9353055012

main93530-55012

9356755012

main93567-55012

9356755014

main93567-55014

9356755016

main93567-55016

9356755020

main93567-55020

9356855012

main93568-55012

9356855016

main93568-55016
