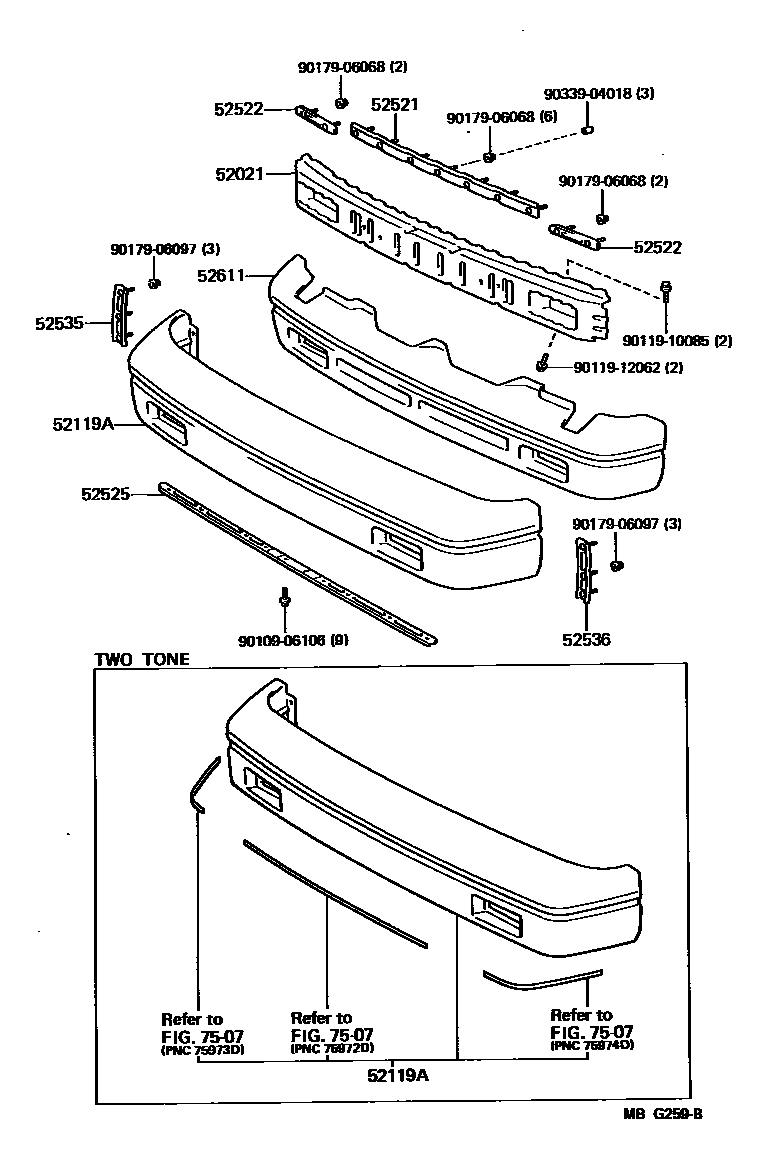

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52119ACOVER, FRONT BUMPER
SUPER RED 2,SUPER RED 2,3E5
SUPER SILVER-M,SUPER SILVER M,150
STRONG BLUE,STRONG BLUE,8B7
SUPER WHITE 2,SUPER WHITE 2,040
SUPER RED 2,SUPER RED 2,3E5
SUPER WHITE 2,SUPER WHITE 2,040
BLACK LIMITED,BLACK METALLIC,204
SUPER RED 2,3E5
GRAY-M,GRAY M,167
BLUE MICA,8E3
SUPER WHITE 2,040
RED MICA,3H4
SUPER WHITE 3,043
BLUE M & SILVER-M,BLUE SILVER,2S7
D-GREEN-M & BEIGE-M,GREEN/BEIGE,2S8
WHITE & GRAY-M,WHITE/GRAY,2Z9
D-GREEN-M & BEIGE-M,GREEN/BEIGE,2S8
GREEN & BEIGE,GREEN/BEIGE,28B
WHITE & GRAY-M,WHITE/GRAY,2Z9
SUPER EDITION,WHITE&BEIGE,WHITE/BEIGE M,22E
WHITE/SILVER M,28J
GRAY-M,SPR SILVER M/GRAY M,21E
52521RETAINER, FRONT BUMPER, UPPER CENTER
52522RETAINER, FRONT BUMPER UPPER SIDE
52525RETAINER, FRONT BUMPER, LOWER CENTER
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
7507BODY STRIPE
9010906106
main90109-06106
9011910085
main90119-10085
9011912062
main90119-12062
9017906068
main90179-06068
9017906097
main90179-06097
9033904018
main90339-04018
15 parts on this diagram · 3 diagrams in section
