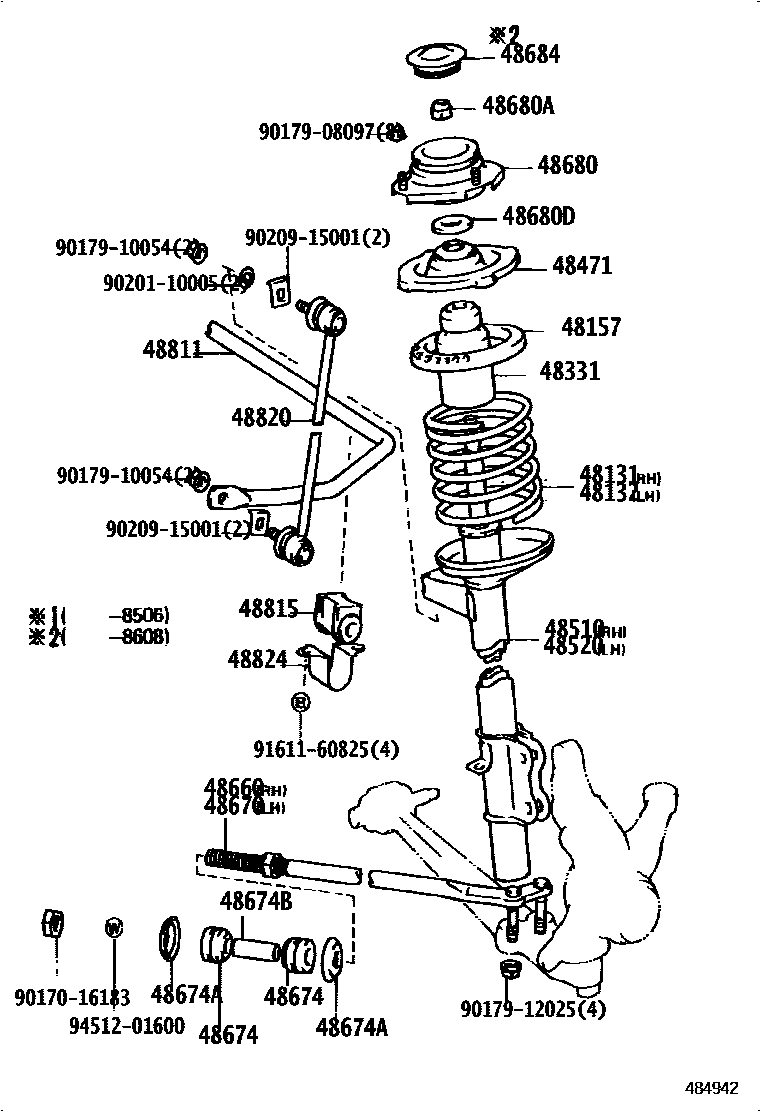

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
COLD SPEC
48132SPRING, FRONT COIL, LH
COLD SPEC
48157INSULATOR, FRONT COIL SPRING, UPPER
48331BUMPER, FRONT SPRING, NO.1
48471SEAT, FRONT SPRING, UPPER
48660BAR ASSY, STRUT, RH
48670BAR ASSY, STRUT, LH
48674CUSHION, STRUT BAR
48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)
48674BCOLLAR(FOR STRUT BAR CUSHION)
48680SUPPORT ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48811BAR, STABILIZER, FRONT
OD=17.0
SPORTS PACKAGE,OD=17.5
48815BUSH, FRONT STABILIZER BAR, NO.1
48820LINK ASSY, FRONT STABILIZER
48824BRACKET, STABILIZER, FRONT
sub48824-17011
9017016183
main90170-16183
9017908097
main90179-08097
9017910054
main90179-10054
9017912025
main90179-12025
9020110005
main90201-10005
9020915001
main90209-15001
9161160825
main91611-60825
9451201600
main94512-01600
28 parts on this diagram · 1 diagram in section
