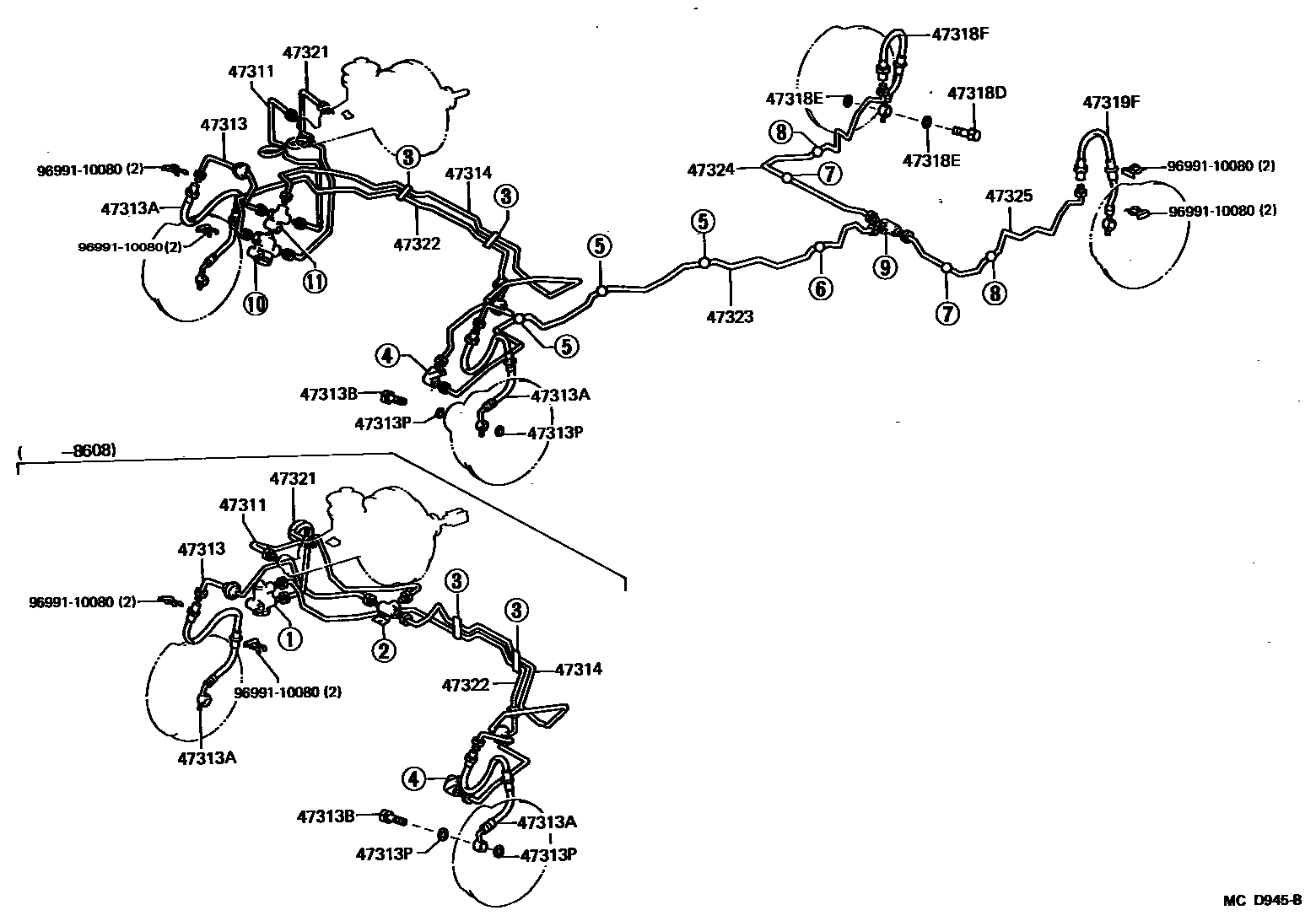

BRAKE TUBE & CLAMP

0001 1 0002 1

47311TUBE, FRONT BRAKE, NO.1

main47311-17010iAW1#198406-198608

main47311-17040iAW1#..CBR,TWC198608-198912

main47311-17050iAW11..SPC198608-198912

47313TUBE, FRONT BRAKE, NO.3

main47313-17010iAW1#198406-198608

main47313-17030iAW1#198608-198912

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02459×2iAW1#198406-198608

main90947-02499×2iAW11198608-198709

main90947-02553×2iAW10198709-198912

main90947-02554×2iAW11198709-198912

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iAW1#198406-198912

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iAW1#198406-198912

47314TUBE, FRONT BRAKE, NO.4

main47314-17010iAW1#198406-198608

main47314-17040iAW1#198608-198912

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iAW1#198406-198912

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074×4iAW1#198406-198912

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02460iAW1#198406-198709

main90947-02552iAW1#198709-198912

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02460iAW1#198406-198709

main90947-02552iAW1#198709-198912

47321TUBE, REAR BRAKE, NO.1

main47321-17010iAW1#198406-198608

main47321-17040iAW1#..CBR,TWC198608-198912

main47321-17050iAW11..SPC198608-198912

47322TUBE, REAR BRAKE, NO.2

main47322-17010iAW1#198406-198608

main47322-17040iAW1#198608-198912

47323TUBE, REAR BRAKE, NO.3

main47323-17010iAW1#198406-198912

47324TUBE, REAR BRAKE, NO.4

main47324-17010iAW1#198406-198605

main47324-17011iAW1#198605-198912

47325TUBE, REAR BRAKE, NO.5

main47325-17010iAW1#198406-198605

main47325-17011iAW1#198605-198912

9699110080

main96991-10080

16 parts on this diagram · 2 diagrams in section
