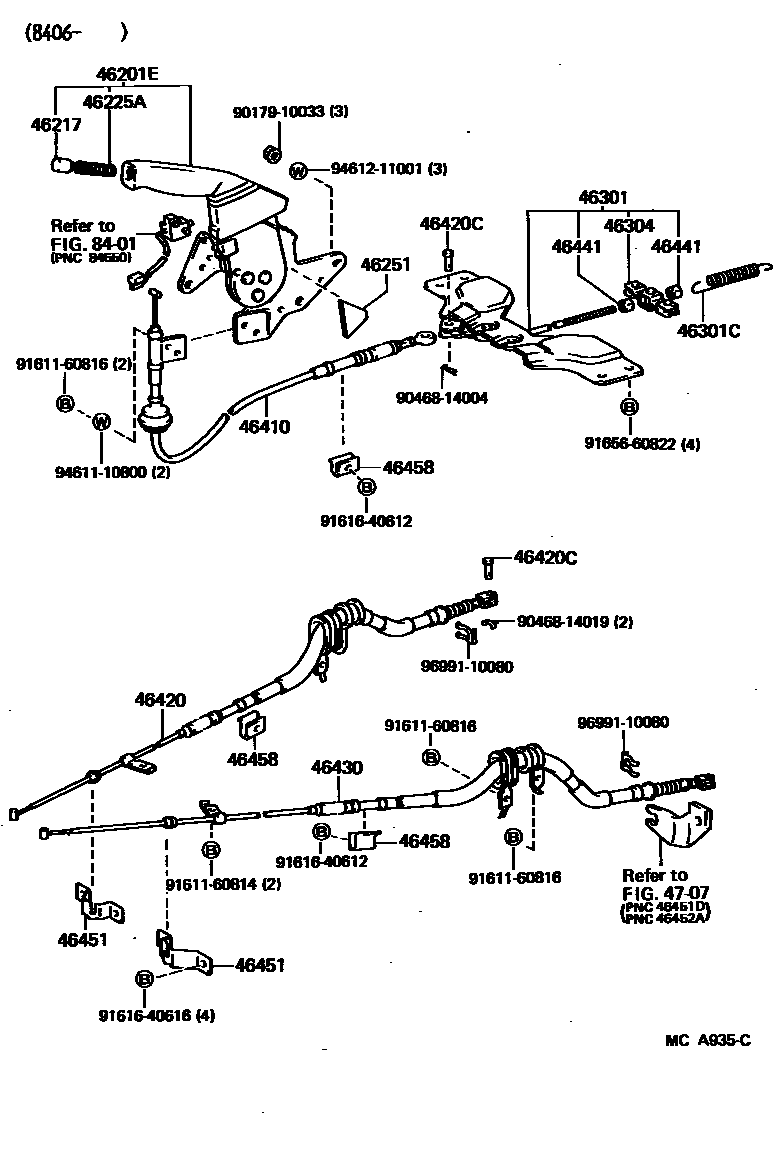

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-17010iAW1#198406-198608

main46201-17010-01iAW1#198608-198803

BLACK,BLACK

main46201-17010-04iAW1#198709-198803

BLUE,DARK BLUE

main46201-17011-01iAW1#198803-198808

BLACK,TRIM2#

main46201-17011-04iAW1#198803-198912

DARK BLUE,TRIM8#

main46201-17011-11iAW1#198808-198912

BLACK,TRIM2#

main46201-17040-01iAW11..5F..SPC198801-198802

main46201-17040-04iAW11..SPC198801-198803

BLUE,DARK BLUE

main46201-17041-11iAW11..TBR..5F..SPC198901-198902

SUPER EDITION,BLACK

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-01iAW1#198803-198808

BLACK,TRIM2#

main46217-12020-11iAW1#198808-198912

BLACK,TRIM2#

main46217-12020-J0iAW1#198803-198912

DARK BLUE,TRIM8#

main46217-20020-01iAW1#198406-198803

BLACK,BLACK

main46217-20020-04iAW1#198709-198803

BLUE,BLUE

main46217-22040-01iAW11..SPC198801-198803

BLACK,BLACK

main46217-22040-04iAW11..SPC198801-198803

BLUE,DEEP BLUE

main46217-32010-11iAW11..TBR..5F..SPC198901-198902

SUPER EDITION,BLACK

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iAW1#198406-198912

46251SPACER, PARKING BRAKE LEVER

main46251-17010iAW1#198406-198912

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-17011iAW1#198406-198409

PULL ROD L=174

main46320-17012iAW1#198803-198912

46301CSPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-18048iAW1#198409-198912

main90506-20048iAW1#198406-198409

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-17010iAW1#198406-198912

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-17021iAW1#198406-198912

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-17011iAW1#198406-198409

L=1579

main46420-17012iAW1#198409-198507

L=1590

main46420-17013iAW1#198507-198608

main46420-17030iAW11198608-198912

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08040×3iAW1#198406-198912

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-17011iAW1#198406-198409

L=1579

main46430-17012iAW1#198409-198506

L=1590

main46430-17013iAW10198608-198912

main46430-17030iAW11198608-198912

46441NUT, WIRE ADJUSTING, NO.1

main46441-30030×2iAW1#198406-198912

46451BRACKET, CABLE SUPPORT

main46451-17010iAW1#198803-198912

main46452-17010iAW1#198406-198803

LH

46458RETAINER, CABLE

main46458-20020×3iAW1#198406-198803

main46458-50010×3iAW1#198906-198912

4707REAR DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-07

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017910033

main90179-10033

9046814004

main90468-14004

9046814019

main90468-14019

9161160814

main91611-60814

9161160816

main91611-60816

9161640612

main91616-40612

9161640616

main91616-40616

9165660822

main91656-60822

9461110800

main94611-10800

9461211001

main94612-11001

9699110080

main96991-10080

27 parts on this diagram · 1 diagram in section
