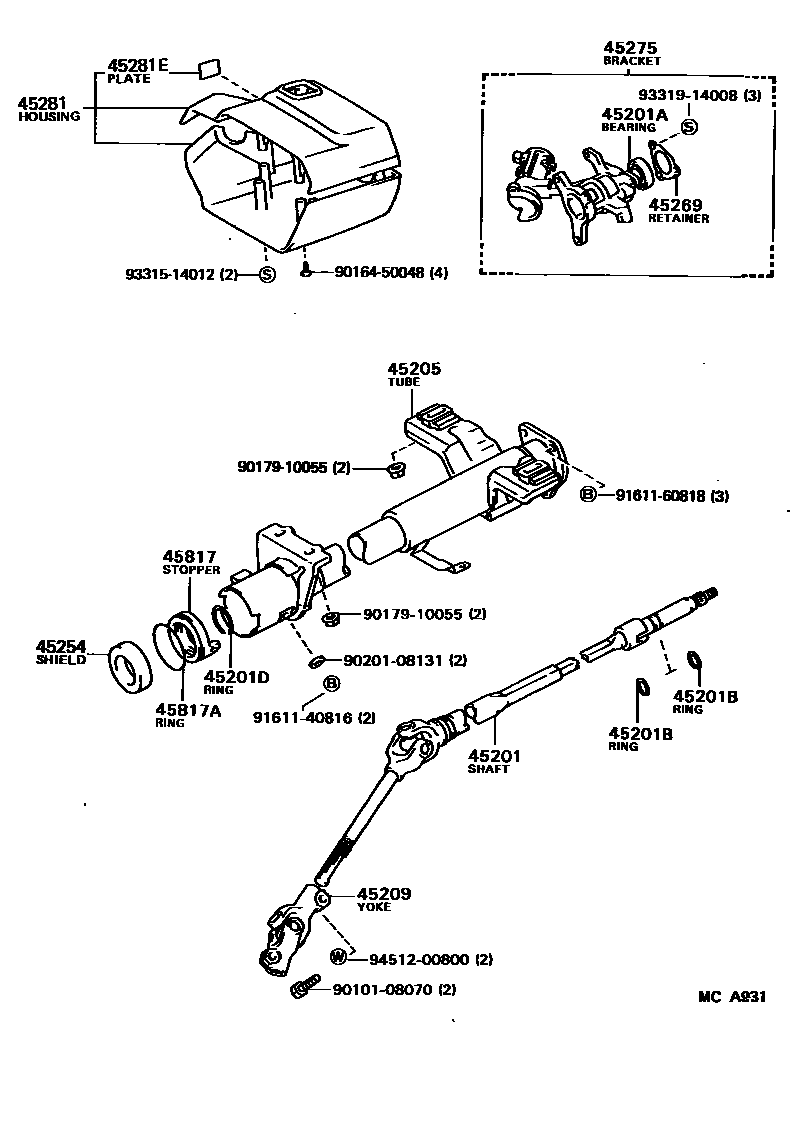

STEERING COLUMN & SHAFT
45201SHAFT SUB-ASSY, STEERING MAIN
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201DRING(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
W/TILT STEERING
45209YOKE SUB-ASSY, STEERING SLIDING
45254SHIELD, STEERING COLUMN HOLE
45269RETAINER, MAIN SHAFT BEARING
45275BRACKET, STEERING COLUMN, UPPER
45281HOUSING, STEERING COLUMN
W/*TIS
BLACK,TRIM2#
W/*TIS,BLUE,DARK BLUE
BLACK,TRIM2#
W/AUTO DRIVE
W/*TIS & AUTO DRIVE
W/*TIS & AUTO DRIVE,BLACK,BLACK
W/*TIS & AUTO DRIVE,BLUE,DARK BLUE
45281EPLATE, SAFETY CAUTION
45817STOPPER, STEERING SHAFT THRUST
45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)
9010108070
main90101-08070
9016450048
main90164-50048
9017910055
main90179-10055
9020108131
main90201-08131
9161140816
main91611-40816
9161160818
main91611-60818
9331514012
main93315-14012
9331914008
main93319-14008
9451200800
main94512-00800
22 parts on this diagram · 2 diagrams in section
