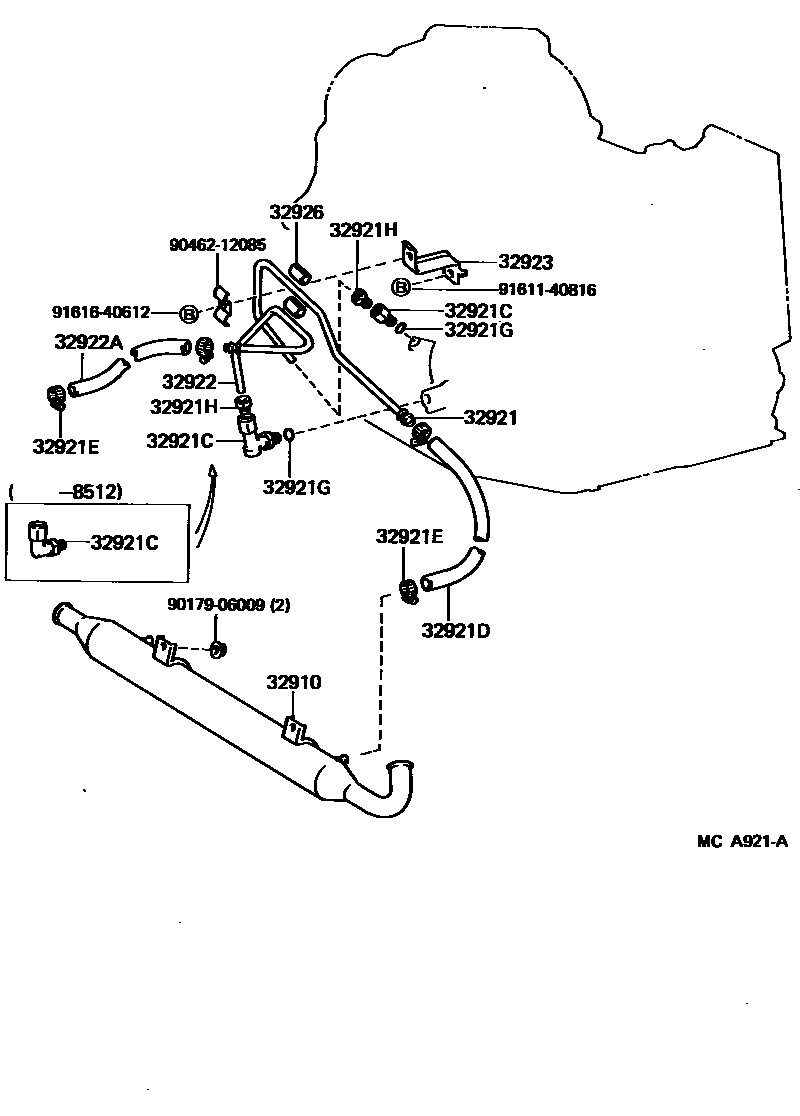

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32910COOLER ASSY, OIL

main32910-17010iAW1#..4FC198406-198608

sub32910-17020

main32910-17020iAW1#..4FC198608-198912

32921TUBE, OIL COOLER INLET, NO.1

main32921-17010iAW1#..4FC198406-198608

main32921-17020iAW1#..4FC198608-198912

32921CUNION(FOR OIL COOLER TUBE)

main32901-20020iAW1#..4FC198512-198608

OUTLET

sub32901-32010

sub32922-20310

sub32922-32030

sub32922-32040

main90404-14007iAW1#..4FC198608-198912

main90404-14007iAW1#..4FC198406-198608

INLET

main90407-14003iAW1#..4FC198406-198512

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-14127iAW1#..4FC198406-198608

main90445-15030iAW1#..4FC198803-198912

sub90445-15051

main90445-15030iAW1#..4FC198709-198803

sub90445-15051

main90445-15051iAW1#..4FC198908-198912

sub90445-15054

main90445-16017iAW1#..4FC198608-198709

sub90445-16030

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iAW1#..4FC198406-198608

sub90460-20004

main90460-18002iAW1#..4FC198608-198709

main90467-13039iAW1#..4FC198709-198912

sub96135-51300

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iAW1#..4FC198406-198912

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iAW1#..4FC198406-198608

main90402-14007iAW1#..4FC198608-198912

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-17010iAW1#..4FC198406-198512

main32922-17011iAW1#..4FC198512-198608

main32922-17020iAW1#..4FC198608-198912

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-14058iAW1#..4FC198406-198608

main90445-15015iAW1#..4FC198709-198908

sub90445-15046

main90445-15046iAW1#..4FC198908-198912

main90445-16022iAW1#..4FC198608-198709

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-17010iAW1#..4FC198406-198608

main32923-17020iAW1#..4FC198608-198912

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iAW1#..4FC198406-198912

9017906009

main90179-06009

9046212085

main90462-12085

9161140816

main91611-40816

9161640612

main91616-40612

15 parts on this diagram · 2 diagrams in section
