TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

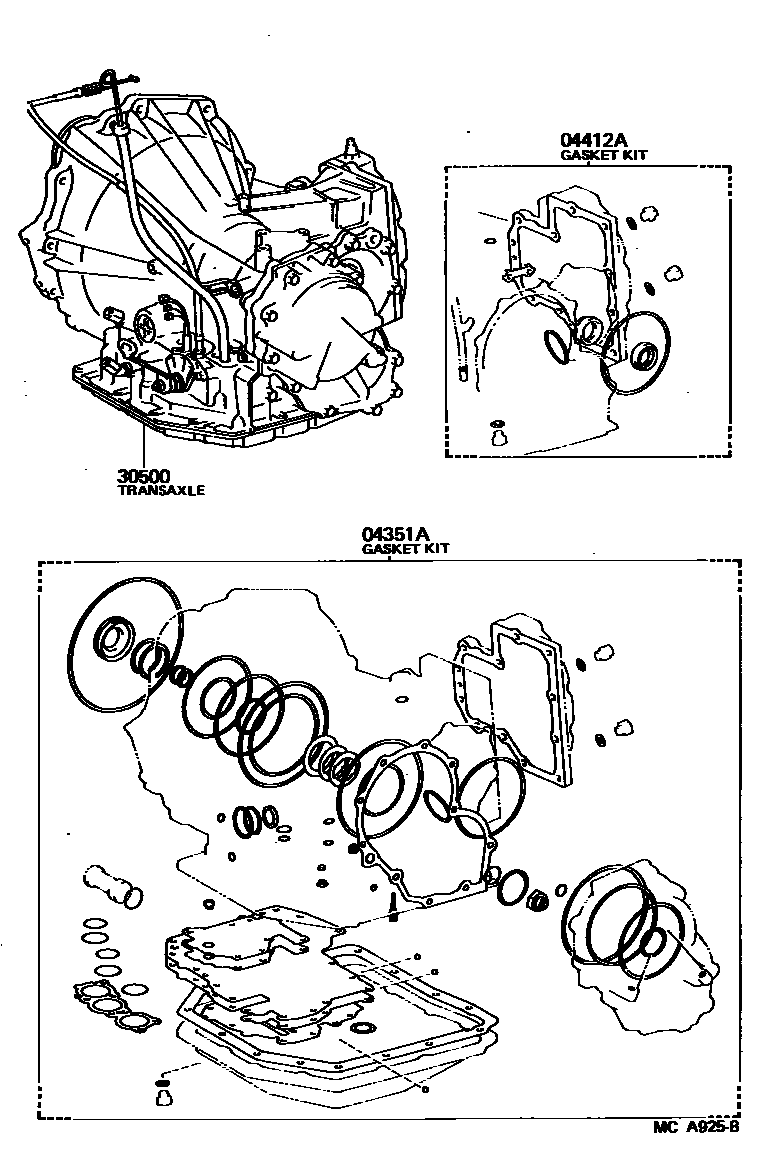

Parts diagram
04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)
main04351-12060i198608-198912
main04351-17010i198406-198505
sub04351-17020
main04351-17020i198505-198608
main04351-17030i198505-198608
main04351-20060i198608-198912
04412AGASKET KIT, DIFFERENTIAL CARRIER(ATM)
main04412-12060i198406-198608
30500TRANSAXLE ASSY, AUTOMATIC
main30500-17010i198406-198512
sub30500-17011
sub32922-17011
sub35103-17011
main30500-17011i198512-198608
sub30500-17012
sub11355-15060
sub11361-16020
sub33117-10011
sub90341-18021
sub90430-18008
sub91611-41025
main30500-17020i198406-198512
sub30500-17021
sub32922-17011
sub35103-17011
main30500-17021i198512-198608
sub30500-17022
sub11355-15060
sub11361-16020
sub33117-10011
sub90341-18021
sub90430-18008
sub91611-41025
main30500-17031i198608-198912
main30500-17040i198608-198704
sub30500-17041
sub11355-15060
sub11361-16020
sub16268-16070
sub16278-16060
sub91611-41025
main30500-17041i198704-198912
main30500-17050i198608-198912

3 parts on this diagram · 2 diagrams in section
