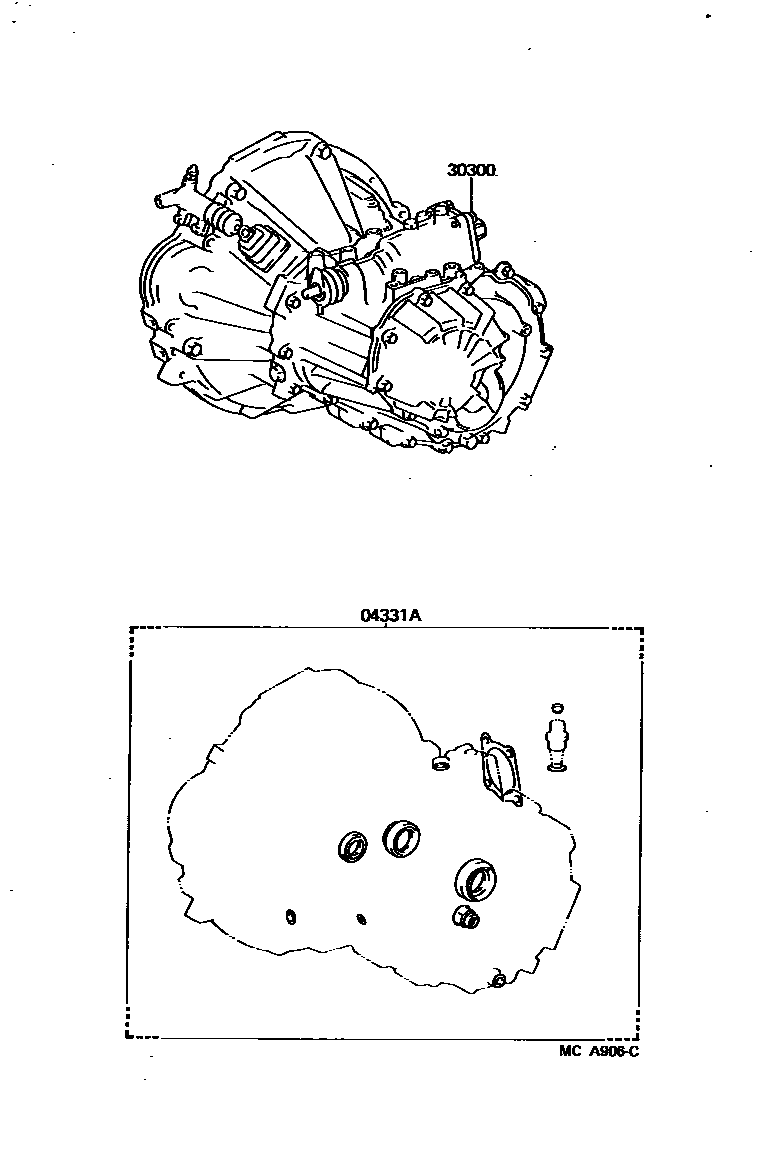

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12080iAW1#..5F..(CBR,TWC)198406-198803

main04331-17010iAW11..5F..SPC198608-198804

main04331-17011iAW11..5F..SPC198804-198912

30300TRANSAXLE ASSY, MANUAL

main30300-17010iAW10..5F198406-198704

sub11355-15060

sub11361-16020

sub16268-15050

sub16322-15030

sub91611-61025

main30300-17012iAW10..5F198704-198912

main30300-17030iAW11..5F198406-198608

sub30300-17031

sub11355-15060

sub16268-16070

sub16278-16060

main30300-17032iAW11..5F..TWC198704-198912

sub30300-17033

main30300-17050iAW11..5F..SPC198608-198907

main30300-17051iAW11..5F..SPC198907-198912

2 parts on this diagram · 2 diagrams in section
