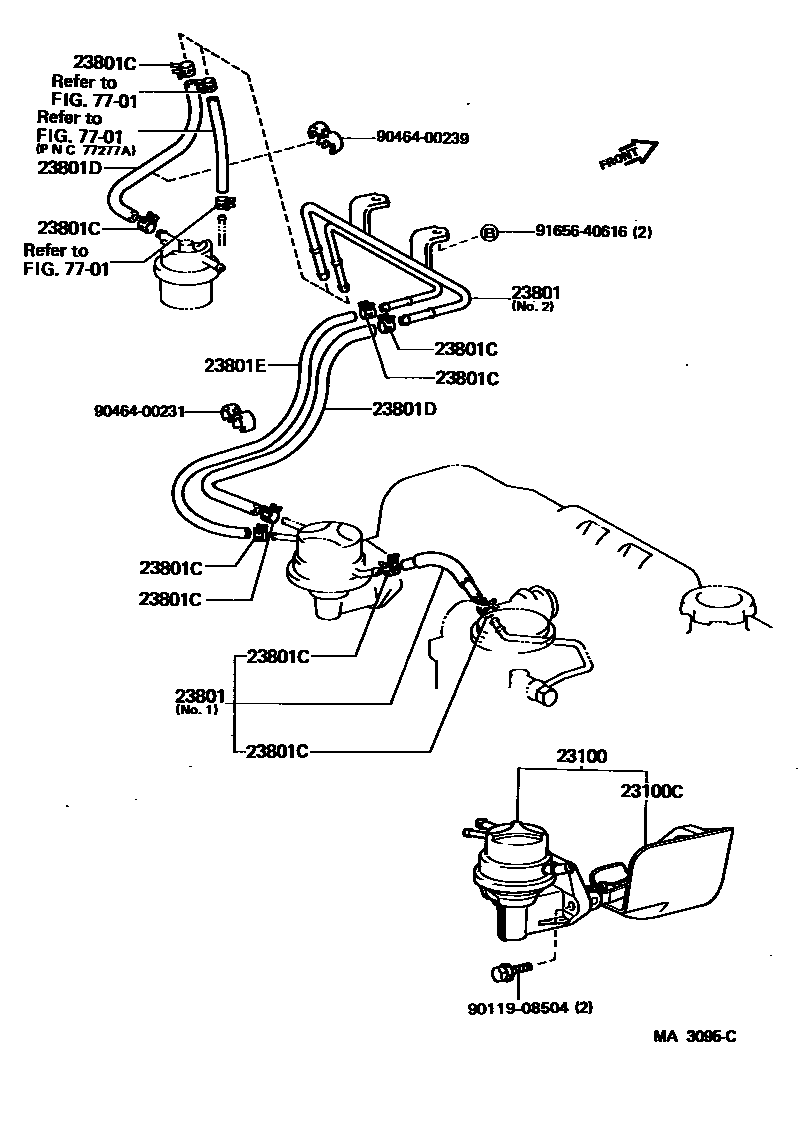

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-19195i3ALU..AW10198406-198912

23100CINSULATOR, FUEL PUMP

main23915-15010i3ALU..AW10198406-198502

main23915-15011i3ALU..AW10198502-198912

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23271-15010i3ALU..AW10198406-198803

NO.1

main23811-15010i3ALU..AW10198406-198608

NO.2

main23811-15020i3ALU..AW10198608-198803

NO.2

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30400×2i3ALU..AW10198406-198803

RETURN,ID=4

main96132-30600×2i3ALU..AW10198803-198912

ID=6

23801DHOSE, FUEL PIPE, NO.1

main23271-15110i3ALU..AW10198803-198912

main95332-06040i3ALU..AW10198406-198702

main95333-06040i3ALU..AW10198702-198803

23801EHOSE, FUEL PIPE, NO.2

main23271-15120i3ALU..AW10198406-198803

RETURN

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908504

main90119-08504

9046400231

main90464-00231

9046400239

main90464-00239

9165640616

main91656-40616

11 parts on this diagram · 1 diagram in section
