STARTER

0001 1 0002 1 0003 1 0004 1 0005 1

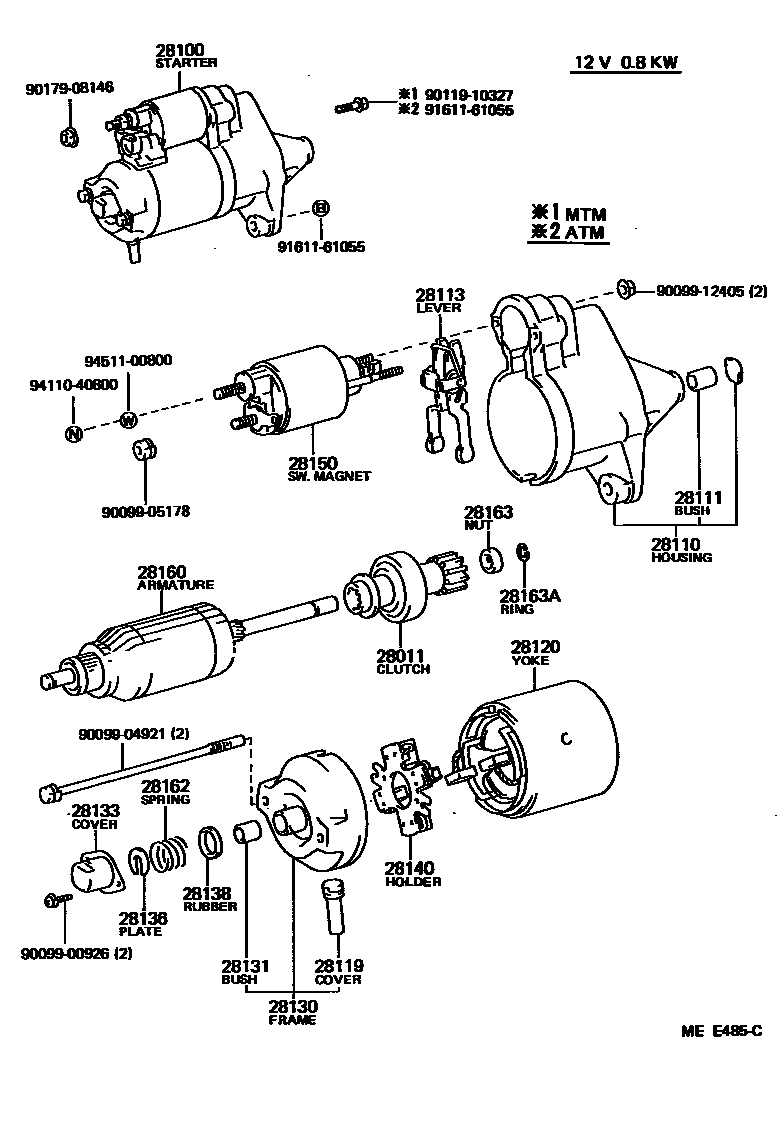

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i3ALU,4AGELU..AW1#198406-198803

12V 0.8KW

main28011-15010i3ALU,4AGELU..AW1#198803-198912

main28011-16010i4AGZE..AW11198608-198803

12V 0.8KW

main28011-16010i4AGZE..AW11198803-198912

main28011-26042i3ALU,4AG#..AW1#198406-198803

12V 1.0KW

main28011-26042i3ALU,4AG#..AW1#198803-198912

28100STARTER ASSY

main28100-15060i3ALU..AW10198803-198912

main28100-15060i3ALU..AW10198406-198803

main28100-15070i3ALU..AW10198406-198803

sub28100-15120

main28100-15070i3ALU..AW10198803-198912

sub28100-15120

main28100-15130i4AGELU..AW11198406-198803

sub28100-15180

main28100-15130i4AGELU..AW11198803-198912

sub28100-15180

main28100-15160i4AGELU..AW11198406-198803

main28100-15160i4AGELU..AW11198803-198912

main28100-16010i4AGZE..AW11198608-198803

main28100-16010i4AGZE..AW11198803-198912

main28100-16020i4AGZE..AW11198803-198912

main28100-16020i4AGZE..AW11198608-198803

28110HOUSING ASSY, STARTER DRIVE

main28110-15060i3ALU..AW10198803-198912

main28110-15060i3ALU..AW10198406-198803

12V 0.8KW

main28110-15070i3ALU..AW10198406-198803

12V 1.0KW

main28110-15070i3ALU..AW10198803-198912

main28110-15110i4AGELU..AW11198406-198803

12V 0.8KW

main28110-15110i4AGELU..AW11198803-198912

main28110-15130i4AGELU..AW11198406-198803

12V 1.0KW

main28110-15130i4AGELU..AW11198803-198912

main28110-16010i4AGZE..AW11198803-198912

main28110-16010i4AGZE..AW11198608-198803

12V 0.8KW

main28110-16020i4AGZE..AW11198608-198803

12V 1.0KW

main28110-16020i4AGZE..AW11198803-198912

28111BUSH(FOR STARTER HOUSING)

main28111-51011i3ALU,4AG#..AW1#198803-198912

main28111-51011i3ALU,4AG#..AW1#198406-198803

12V 0.8KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i3ALU,4AGELU..AW1#198803-198912

main28113-15011i3ALU,4AGELU..AW1#198406-198803

12V 0.8KW

main28113-16010i4AGZE..AW11198803-198912

main28113-16010i4AGZE..AW11198608-198803

12V 0.8KW

28119COVER, STARTER END FRAME

main28199-15160i4AGELU..AW11198406-198803

12V 0.8KW

main28199-15160i4AGELU..AW11198803-198912

main28199-77090i3ALU,4AGZE..AW1#198406-198803

12V 0.8KW

main28199-77090i3ALU,4AGZE..AW1#198803-198912

28120YOKE ASSY, STARTER

main28120-15010i3ALU,4AGZE..AW1#198803-198912

main28120-15010i3ALU,4AGZE..AW1#198406-198803

12V 0.8KW

main28120-26071i3ALU,4AG#..AW1#198406-198803

12V 1.0KW

main28120-26071i3ALU,4AG#..AW1#198803-198912

main28120-26140i4AGELU..AW11198406-198803

12V 0.8KW

main28120-26140i4AGELU..AW11198803-198912

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i4AGELU..AW11198406-198803

12V 1.0KW

main28130-13010i4AGELU..AW11198803-198912

main28130-15010i3ALU..AW10198803-198912

main28130-15010i3ALU..AW10198406-198803

12V 0.8KW

main28130-15040i3ALU..AW10198803-198912

main28130-15040i3ALU..AW10198406-198803

12V 1.0KW

main28130-15160i4AGELU..AW11198803-198912

main28130-15160i4AGELU..AW11198406-198803

12V 0.8KW

main28130-16010i4AGZE..AW11198803-198912

main28130-16010i4AGZE..AW11198608-198803

12V 0.8KW

main28130-72010i4AGZE..AW11198803-198912

main28130-72010i4AGZE..AW11198608-198803

12V 1.0KW

28131BUSH, COMMUTATOR END FRAME

main90099-10134i3ALU,4AG#..AW1#198406-198803

12V 0.8KW

main90099-10134i3ALU,4AG#..AW1#198803-198912

28133COVER, BEARING(FOR END FRAME)

main28132-15010i3ALU,4AG#..AW1#198406-198803

12V 0.8KW

sub28132-15011

main28132-15010i3ALU,4AG#..AW1#198803-198912

sub28132-15011

28136PLATE, STARTER LOCK

main28136-15010i3ALU,4AG#..AW1#198406-198803

12V 0.8KW

main28136-15010i3ALU,4AG#..AW1#198803-198912

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i3ALU,4AG#..AW1#198406-198803

12V 0.8KW

main28138-15010i3ALU,4AG#..AW1#198803-198912

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i3ALU,4AG#..AW1#198406-198803

12V 0.8KW

main28140-15010i3ALU,4AG#..AW1#198803-198912

main28140-26070i3ALU,4AG#..AW1#198803-198912

main28140-26070i3ALU,4AG#..AW1#198406-198803

12V 1.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-13011i4AGELU..AW11198803-198912

main28150-13011i4AGELU..AW11198406-198803

12V 1.0KW

main28150-15070i3ALU..AW10198406-198803

12V 1.0KW

main28150-15070i3ALU..AW10198803-198912

main28150-37010i3ALU,4AG#..AW1#198406-198803

12V 0.8KW

sub28150-37011

main28150-37010i3ALU,4AG#..AW1#198803-198912

sub28150-37011

main28150-72080i4AGZE..AW11198803-198912

main28150-72080i4AGZE..AW11198608-198803

12V 1.0KW

28160ARMATURE ASSY, STARTER

main28160-15010i3ALU,4AGELU..AW1#198803-198912

main28160-15010i3ALU,4AGELU..AW1#198406-198803

12V 0.8KW

main28160-16010i4AGZE..AW11198608-198803

12V 0.8KW

main28160-16010i4AGZE..AW11198803-198912

main28160-26070i3ALU,4AG#..AW1#198406-198803

12V 1.0KW

sub28160-26071

main28160-26070i3ALU,4AG#..AW1#198803-198912

sub28160-26071

28162SPRING, STARTER BRAKE

main28162-15010i3ALU,4AG#..AW1#198406-198803

12V 0.8KW

main28162-15010i3ALU,4AG#..AW1#198803-198912

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i3ALU,4AG#..AW1#198406-198803

12V 0.8KW

main28163-40011i3ALU,4AG#..AW1#198803-198912

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i3ALU,4AG#..AW1#198406-198803

12V 0.8KW

main90099-07047i3ALU,4AG#..AW1#198803-198912

9009900926

main90099-00926

9009904921

main90099-04921

9009905178

main90099-05178

9009912405

main90099-12405

9011910327

main90119-10327

9017908146

main90179-08146

9161161055

main91611-61055

9411040800

main94110-40800

9451100800

main94511-00800

27 parts on this diagram · 5 diagrams in section
