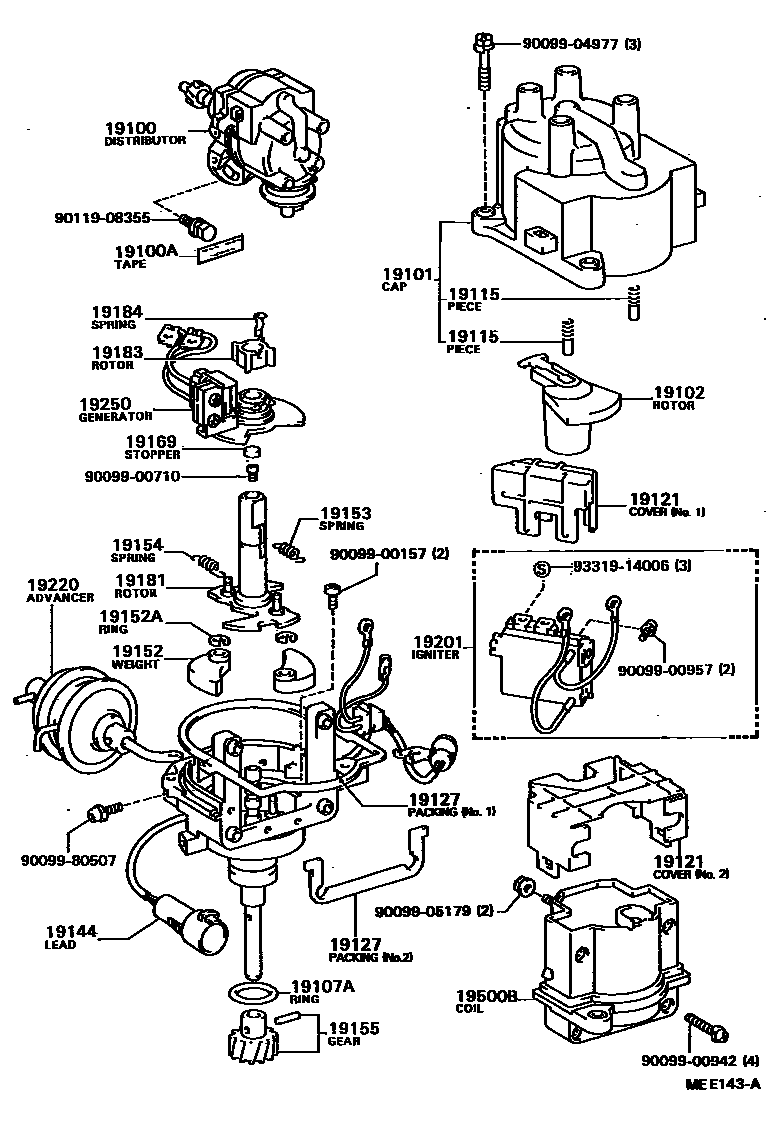

DISTRIBUTOR

0001 1 0002 1 0003 1

19100DISTRIBUTOR ASSY

main19020-15020i3ALU..AW10..5F198406-198912

main19020-15030i3ALU..AW10..4FC198406-198912

main19100-16080i4AGELU..AW11198406-198709

main19100-16150i4AGZE..AW11198608-198912

main19100-16190i4AGELU..AW11198709-198912

19100ATAPE, SEALING

main90919-24004i3ALU,4AG#..AW1#198406-198912

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-15160i3ALU..AW10198406-198912

main19101-16080i4AGELU..AW11198406-198709

main19101-16150i4AGZE..AW11198608-198803

main19101-16220i4AGELU..AW11198709-198803

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11010i4AGZE..AW11198608-198912

main19102-16040i4AGELU..AW11198406-198803

main19102-63010i3ALU..AW10198406-198803

19107ARING, O, DISTRIBUTOR HOUSING

main96710-04030i3ALU,4AGELU..AW1#198406-198409

main96711-35030i3ALU,4AG#..AW1#198409-198912

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i4AG#..AW11198406-198912

main19115-63010×2i3ALU..AW10198705-198912

main19115-71010×2i3ALU..AW10198503-198705

19121COVER, DUST PROOF

main19121-15090i3ALU..AW10198803-198912

main19121-16040i4AGELU..AW11198803-198912

main19121-16080i4AGELU..AW11198803-198912

main19121-16090i4AGZE..AW11198608-198803

NO.2

main19121-16150i4AGZE..AW11198608-198803

NO.1

main19121-63040i3ALU..AW10198803-198912

19127PACKING, DUST PROOF

main19127-15021i4AG#..AW11198406-198912

main19127-15090i3ALU..AW10198803-198912

main19127-63020i3ALU..AW10198803-198912

19144LEAD, DISTRIBUTOR BREAKER

main19144-15161i3ALU..AW10198406-198912

19152WEIGHT, GOVERNOR

main19152-15160×2i3ALU..AW10198406-198912

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07122×2i3ALU..AW10198406-198912

19153SPRING, GOVERNOR, A

main19153-15250i3ALU..AW10198406-198912

19154SPRING, GOVERNOR, B

main19154-15250i3ALU..AW10198406-198912

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-15021i3ALU..AW10198406-198912

main19195-16040i4AG#..AW11198406-198912

19169STOPPER, CAM GREASE

main19169-63011i3ALU..AW10198406-198912

19181ROTOR, DISTRIBUTOR, SIGNAL

main19181-15160i3ALU..AW10..5F198406-198912

main19181-15180i3ALU..AW10..4FC198406-198912

19183ROTOR, SIGNAL

main19183-15010i3ALU..AW10198406-198912

19184SPRING, ROTOR SET

main19184-63010i3ALU..AW10198406-198912

19201IGNITER

main89620-10120i3ALU..AW10198509-198912

main89620-16070i3ALU..AW10198406-198509

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-15170i3ALU..AW10..4FC198406-198912

main19220-15190i3ALU..AW10..5F198406-198912

19250GENERATOR ASSY, SIGNAL

main19251-15091i3ALU..AW10198406-198805

main19251-16100i3ALU..AW10198805-198912

19500BCOIL ASSY, IGNITION

main90919-02139i3ALU..AW10198804-198912

main90919-02152i3ALU..AW10198406-198804

9009900157

main90099-00157

9009900710

main90099-00710

9009900942

main90099-00942

9009900957

main90099-00957

9009904977

main90099-04977

9009905179

main90099-05179

9009980507

main90099-80507

9011908355

main90119-08355

9331914006

main93319-14006

31 parts on this diagram · 3 diagrams in section
