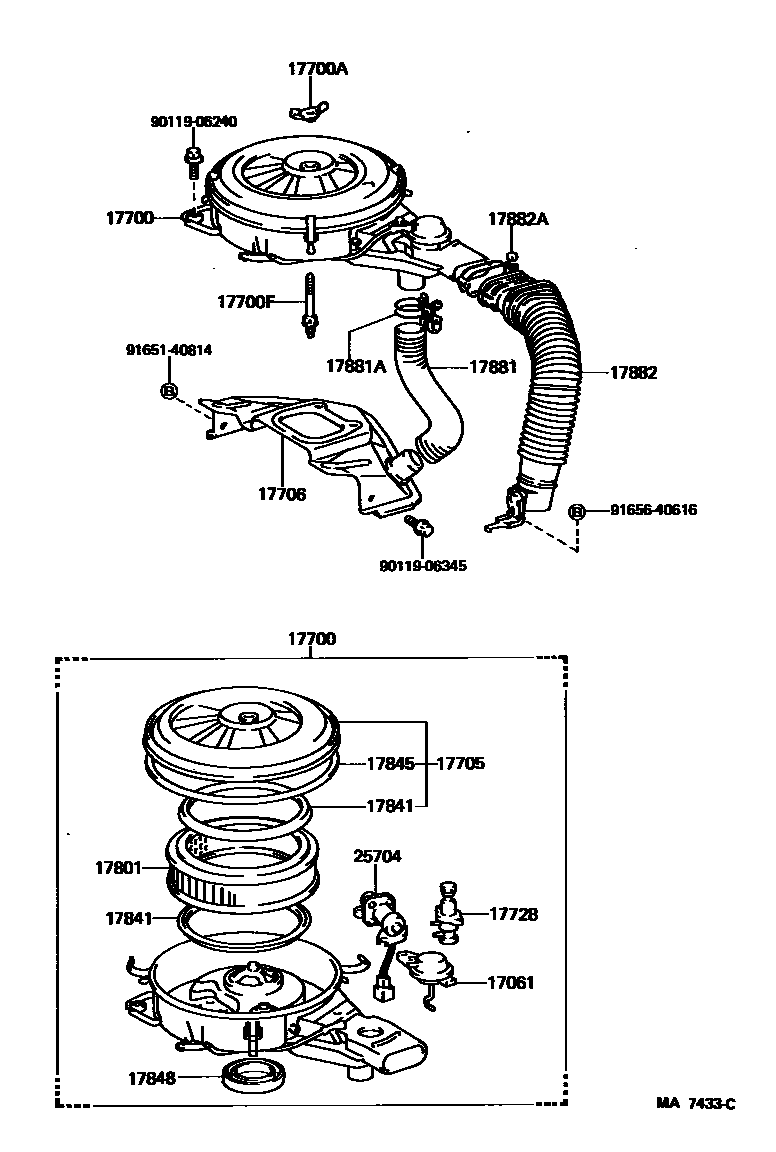

AIR CLEANER
17061DIAPHRAGM SUB-ASSY
17700CLEANER ASSY, AIR
17700ANUT, WING(FOR AIR CLEANER)
17700FBOLT, STUD(FOR AIR CLEANER SETTING)
17705CAP SUB-ASSY, AIR CLEANER
17706INLET SUB-ASSY, AIR CLEANER, NO.2
17728VALVE, THERMOSTATIC
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17841GASKET, FILTER ELEMENT
17845GASKET, AIR CLEANER CAP
*G,L=1060
17848GASKET, AIR CLEANER TO CARBURETOR
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
AIR CLEANER SIDE
BODY SIDE
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
25704VALVE SUB-ASSY, ELECTRIC AIR CONTROL
9011906240
main90119-06240
9011906345
main90119-06345
9165140814
main91651-40814
9165640616
main91656-40616
20 parts on this diagram · 5 diagrams in section
