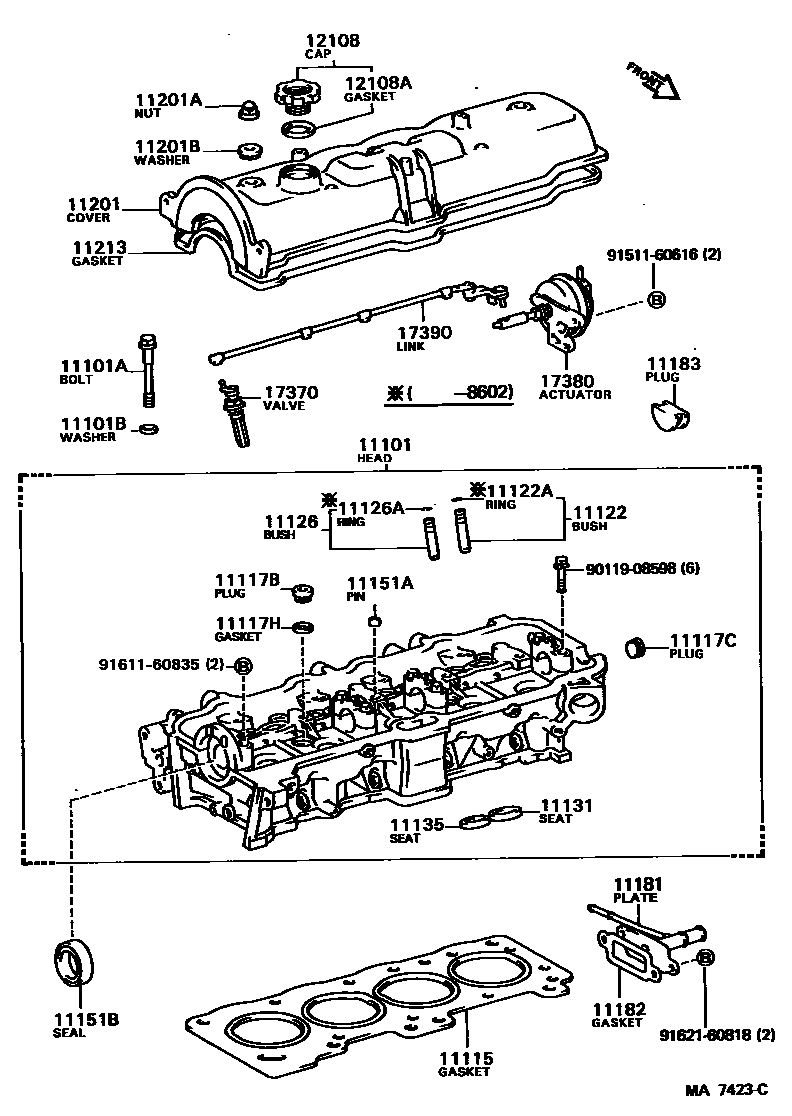

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
*10-1.25PX97.5-22
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117CPLUG, W/HEAD TAPER SCREW, NO.3
11117HGASKET(FOR WATER HOLE)
NO.1
NO.1
NO.2
11122BUSH, INTAKE VALVE GUIDE
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
sub90311-35022
11181PLATE, CYLINDER HEAD, REAR
11183PLUG, SEMICIRCULAR
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108AGASKET(FOR OIL FILLER CAP)
17370VALVE ASSY, SWIRL CONTROL
17380ACTUATOR ASSY, SWIRL CONTROL
17390LINK ASSY, SWIRL CONTROL
9011908598
main90119-08598
9151160616
main91511-60616
9161160835
main91611-60835
9162160818
main91621-60818
31 parts on this diagram · 2 diagrams in section
