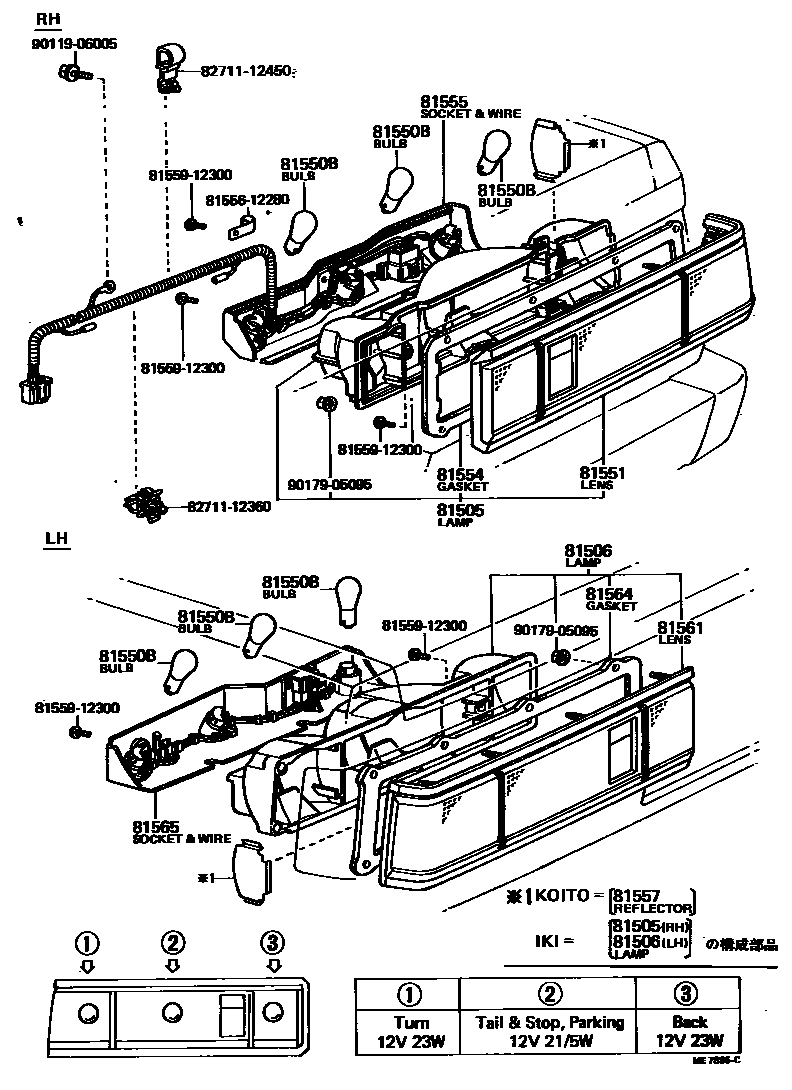

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

81505LAMP SUB-ASSY, REAR COMBINATION, RH

main81505-19215iKE70..SED..(CTD,DX,STD)197903-198108

KOITO

main81505-19225iKE70..SED..(CTD,DX,STD)197903-198108

IKI

main81505-19235iKE70..SED..GL;AE70,TE70,71..4D197903-198108

KOITO

main81505-19236iAE70,CE70,KE70,TE71..SED198108-198304

KOITO

main81505-19245iKE70..SED..GL;AE70,TE70,71..4D197903-198108

IKI

main81505-19246iAE70,KE70,TE71..SED198108-198201

IKI

main81505-19247iAE70,CE70,KE70,TE71..SED198201-198304

IKI

main81505-19255iAE70,KE70,TE70,71..HT..(DX,GL,GT)197903-198108

main81505-19265iAE70,TE70..HT..SE197903-198108

main81505-19315iAE70,KE70,TE70,71..CP197903-198108

main81505-19335iAE70,TE70..LB..SE197903-198108

main81505-19345iAE70,KE70,TE70,71..LB..(DX,GL,GT)197903-198108

main81505-19555iAE70,KE70,TE71..LB198108-198304

main81505-19615iAE70,KE70,TE71..HT198108-198304

main81505-19635iAE70,KE70,TE71..CP198108-198304

81506LAMP SUB-ASSY, REAR COMBINATION, LH

main81506-19085iKE70..SED..(CTD,DX,STD)197903-198108

KOITO

main81506-19095iKE70..SED..(CTD,DX,STD)197903-198108

IKI

main81506-19105iKE70..SED..GL;AE70,TE70,71..4D197903-198108

KOITO

main81506-19106iAE70,CE70,KE70,TE71..SED198108-198304

KOITO

main81506-19115iKE70..SED..GL;AE70,TE70,71..4D197903-198108

IKI

main81506-19116iAE70,KE70,TE71..SED198108-198201

IKI

main81506-19117iAE70,CE70,KE70,TE71..SED198201-198304

IKI

main81506-19125iAE70,KE70,TE70,71..HT..(DX,GL,GT)197903-198108

main81506-19135iAE70,TE70..HT..SE197903-198108

main81506-19185iAE70,KE70,TE70,71..CP197903-198108

main81506-19205iAE70,TE70..LB..SE197903-198108

main81506-19215iAE70,KE70,TE70,71..LB..(DX,GL,GT)197903-198108

main81506-19415iAE70,KE70,TE71..LB198108-198304

main81506-19475iAE70,KE70,TE71..HT198108-198304

main81506-19495iAE70,KE70,TE71..CP198108-198304

81550LAMP ASSY, REAR COMBINATION, RH

main81550-80050iKE71..DX,STD197908-198108

KOITO

main81550-80051iKE71..DX,STD197908-198108

IKI

main81550-80052iTE73;KE71..GL197908-198108

KOITO

main81550-80053iTE73;KE71..GL197908-198108

IKI

main81550-80117iCE71,KE72,73,TE74198108-198308

KOITO

main81550-80118iCE71,KE72,73,TE74198108-198308

IKI

main81550-80169iCE7#,KE7#198308-198707

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230×4iAE70,CE7#,KE7#,TE7#197903-198707

main99132-21210×4iAE70,CE7#,KE7#,TE7#197903-198707

81551LENS, REAR COMBINATION LAMP, RH

main81551-12510iKE70..SED..GL;AE70,TE70,71..4D197903-198108

KOITO

main81551-12511iAE70,CE70,KE70,TE71..SED198108-198304

KOITO

main81551-12520iKE70..SED..GL;AE70,TE70,71..4D197903-198108

IKI

main81551-12522iAE70,KE70,TE71..SED198108-198201

IKI

main81551-12523iAE70,CE70,KE70,TE71..SED198201-198304

IKI

main81551-12530iAE70,TE70..HT..SE197903-198108

main81551-12560iKE70..SED..(CTD,DX,STD)197903-198108

KOITO

main81551-12570iKE70..SED..(CTD,DX,STD)197903-198108

IKI

main81551-12610iAE70,KE70,TE70,71..HT..(DX,GL,GT)197903-198108

main81551-12650iAE70,KE70,TE70,71..CP197903-198108

main81551-12710iAE70,TE70..LB..SE197903-198108

main81551-12720iAE70,KE70,TE70,71..LB..(DX,GL,GT)197903-198108

main81551-13160iKE71..DX,STD197908-198108

KOITO

main81551-13161iCE71,KE72,73,TE74198108-198308

KOITO

main81551-13201iCE71,KE72,73,TE74198108-198308

IKI

main81551-13210iTE73;KE71..GL197908-198108

KOITO

main81551-13220iKE71,TE73197908-198108

IKI

main81551-13280iCE7#,KE7#198308-198707

KOITO

main81551-1A010iAE70,KE70,TE71..HT198108-198304

main81551-1A030iAE70,KE70,TE71..CP198108-198304

main81551-1A070iAE70,KE70,TE71..LB198108-198304

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-12510iAE70,KE70,TE70,71..SED197903-198108

KOITO

main81554-12511iAE70,CE70,KE70,TE71..SED198108-198304

KOITO

main81554-12520iAE70,KE70,TE70,71..SED197903-198108

IKI

main81554-12522iAE70,CE70,KE70,TE71..SED198108-198304

IKI

main81554-12530iAE70,KE70,TE70,71..HT197903-198108

main81554-12640iAE70,KE70,TE70,71..CP197903-198108

main81554-12710iAE70,KE70,TE70,71..LB197903-198108

main81554-13160iCE71,KE72,73,TE74198108-198308

KOITO

main81554-13201iCE71,KE72,73,TE74198108-198308

IKI

main81554-13210iKE71,TE73197908-198108

KOITO

main81554-13220iKE71,TE73197908-198108

IKI

main81554-13280iCE7#,KE7#198308-198707

KOITO

main81554-1A030iAE70,KE70,TE71..CP198108-198304

main81554-1A070iAE70,KE70,TE71..LB198108-198304

main81554-1A110iAE70,KE70,TE71..HT198108-198304

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-12510iAE70,KE70,TE70,71..SED197903-198011

KOITO

main81555-12511iAE70,KE70,TE70,71..SED198011-198108

KOITO

main81555-12512iAE70,CE70,KE70,TE71..SED198108-198304

KOITO

main81555-12520iAE70,KE70,TE70,71..SED197903-198009

IKI

main81555-12522iAE70,CE70,KE70,TE71..SED198108-198304

IKI

main81555-12530iAE70,KE70,TE70,71..HT197903-198011

main81555-12531iAE70,KE70,TE70,71..HT198011-198108

main81555-12571iAE70,KE70,TE70,71..SED198009-198108

IKI

main81555-12640iAE70,KE70,TE70,71..CP197903-198009

main81555-12651iAE70,KE70,TE70,71..CP198009-198108

main81555-12710iAE70,KE70,TE70,71..LB197903-198009

main81555-12711iAE70,KE70,TE70,71..LB198009-198108

main81555-13160iCE71,KE72,73,TE74198108-198308

KOITO

main81555-13210iKE71,TE73197908-198108

KOITO

main81555-13220iCE71,KE71,72,73,TE73,74197908-198308

IKI

main81555-13280iCE7#,KE7#198308-198707

main81555-1A010iAE70,KE70,TE71..HT198108-198304

main81555-1A030iAE70,KE70,TE71..CP198108-198304

main81555-1A070iAE70,KE70,TE71..LB198108-198304

81557REFLECTOR, REAR COMBINATION LAMP REFLEX

main81557-12510iAE70,KE70,TE70,71..SED197903-198002

RH

main81557-12530×2iAE70,KE70,TE70,71..HT197903-198108

main81567-12510iAE70,KE70,TE70,71..SED197903-198002

LH

81561LENS, REAR COMBINATION LAMP, LH

main81561-12510iKE70..SED..GL;AE70,TE70,71..4D197903-198108

KOITO

main81561-12511iAE70,CE70,KE70,TE71..SED198108-198304

KOITO

main81561-12520iKE70..SED..GL;AE70,TE70,71..4D197903-198108

IKI

main81561-12521iAE70,KE70,TE71..SED198108-198201

IKI

main81561-12522iAE70,CE70,KE70,TE71..SED198201-198304

IKI

main81561-12530iAE70,TE70..HT..SE197903-198108

main81561-12560iKE70..SED..(CTD,DX,STD)197903-198108

KOITO

main81561-12570iKE70..SED..(CTD,DX,STD)197903-198108

IKI

main81561-12610iAE70,KE70,TE70,71..HT..(DX,GL,GT)197903-198108

main81561-12650iAE70,KE70,TE70,71..CP197903-198108

main81561-12710iAE70,TE70..LB..SE197903-198108

main81561-12720iAE70,KE70,TE70,71..LB..(DX,GL,GT)197903-198108

main81561-13160iKE71..DX,STD197908-198108

KOITO

main81561-13161iCE71,KE72,73,TE74198108-198308

KOITO

main81561-13201iCE71,KE72,73,TE74198108-198308

IKI

main81561-13210iTE73;KE71..GL197908-198108

KOITO

main81561-13220iKE71,TE73197908-198108

IKI

main81561-13280iCE7#,KE7#198308-198707

main81561-1A010iAE70,KE70,TE71..HT198108-198304

main81561-1A030iAE70,KE70,TE71..CP198108-198304

main81561-1A070iAE70,KE70,TE71..LB198108-198304

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-12510iAE70,KE70,TE70,71..SED197903-198108

KOITO

main81554-12511iAE70,CE70,KE70,TE71..SED198108-198304

KOITO

main81554-12530iAE70,KE70,TE70,71..HT197903-198108

main81554-12710iAE70,KE70,TE70,71..LB197903-198108

main81554-13160iCE71,KE72,73,TE74198108-198308

KOITO

main81554-13210iKE71,TE73197908-198108

KOITO

main81554-13280iCE7#,KE7#198308-198707

main81554-1A070iAE70,KE70,TE71..LB198108-198304

main81554-1A110iAE70,KE70,TE71..HT198108-198304

main81564-12520iAE70,KE70,TE70,71..SED197903-198108

IKI

main81564-12521iAE70,CE70,KE70,TE71..SED198108-198304

IKI

main81564-12640iAE70,KE70,TE70,71..CP197903-198108

main81564-13201iCE71,KE72,73,TE74198108-198308

IKI

main81564-13220iKE71,TE73197908-198108

IKI

main81564-1A030iAE70,KE70,TE71..CP198108-198304

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-13160iCE71,KE72,73,TE74198108-198308

KOITO

main81555-13210iKE71,TE73197908-198108

KOITO

main81555-13220iCE71,KE71,72,73,TE73,74197908-198308

IKI

main81555-13280iCE7#,KE7#198308-198707

main81565-12510iAE70,KE70,TE70,71..SED197903-198002

KOITO

main81565-12511iAE70,CE70,KE70,TE71..SED198108-198304

KOITO

main81565-12520iAE70,KE70,TE70,71..SED197903-198108

IKI

main81565-12521iAE70,CE70,KE70,TE71..SED198108-198304

IKI

main81565-12530iAE70,KE70,TE70,71..HT197903-198108

main81565-12640iAE70,KE70,TE70,71..CP197903-198108

main81565-12710iAE70,KE70,TE70,71..LB197903-198108

main81565-12760iAE70,KE70,TE70,71..SED198002-198108

KOITO

main81565-1A010iAE70,KE70,TE71..HT198108-198304

main81565-1A030iAE70,KE70,TE71..CP198108-198304

main81565-1A070iAE70,KE70,TE71..LB198108-198304

8155612280RIM, REAR COMBINATION LAMP, RH

main81556-12280

8155912300MOULDING, REAR COMBINATION LAMP, RH

main81559-12300

8271112360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12360

8271112450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12450

9011906005

main90119-06005

9017905095

main90179-05095

17 parts on this diagram · 10 diagrams in section
