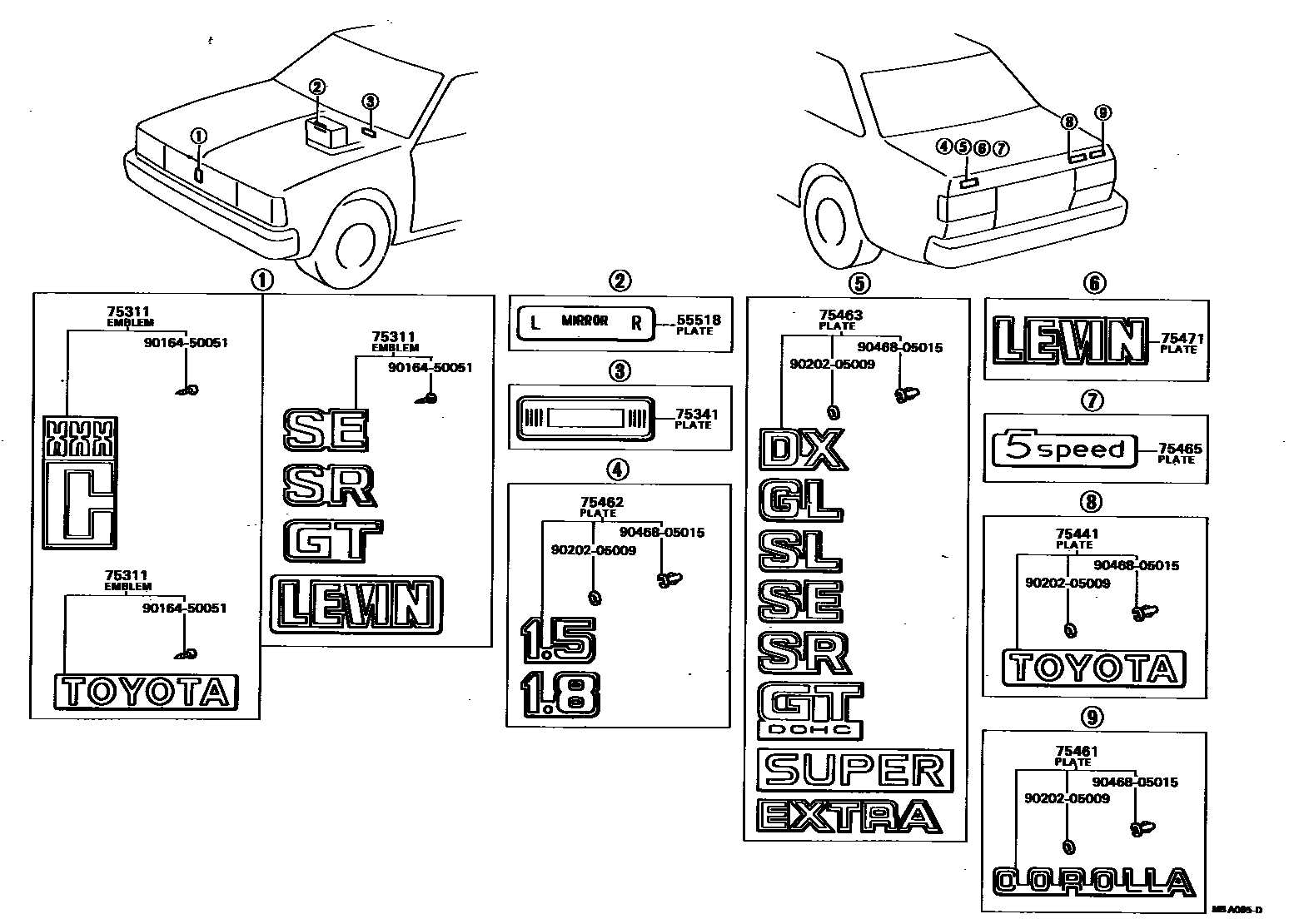

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1 0003 1 0004 1 0005 1

55518PLATE, REMOTE CONTROL MIRROR NAME

main55518-12010iAE70,TE70,71..2D197903-198108

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75301-19135iAE70,KE7#,TE70,73..(SED,V)..(CTD,DX,GL,STD)197903-198108

GOLD

main75301-19155iAE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SL)197903-198108

main75301-19185iKE70..4F..DX..4D198004-198108

W/HIGH GRADE PACKAGE,SILVER

main75301-19205iCE71,KE72,73,TE74198108-198308

main75301-19215iAE70,KE70..(HT,LB)..(DX,GL)198108-198304

main75301-19235iAE70,CE70,KE70..SED..(CTD,DX,GL,STD)198108-198205

main75301-19236iAE70,CE70,KE70..SED..(CTD,DX,GL,STD)198205-198304

main75311-13011iCE71,KE72,74198508-198707

main75311-13030iCE72,KE73198508-198707

main75311-19695iAE70,TE70..SE..4D197903-198108

SE

main75311-19705iTE71..4D197903-198108

GT

main75311-19735iAE70,TE70..SE..2D197903-198108

SE

main75311-19745iAE70,TE70..SR197903-198108

SR

main75311-19755iTE71..GT..2D197903-198108

GT

main75311-19765iTE71..LVN197903-198108

LEVIN

main75311-19855iKE70..4F..DX..4D198011-198011

TOYOTA,SILVER

main75311-1A140iAE70..(3FC,4F)..GL..4D;KE70..4F..(CTD,DX,GL)..4D198104-198108

VICTOR,TOYOTA,GOLD

main75311-80002iAE70,CE70,KE70..SE..4D198108-198304

SE

main75311-80003iTE71..4D198108-198304

GT

main75311-80004iAE70..SX..4D198108-198304

SX

main75311-80006iAE70,KE70..SE..2D198108-198304

SE

main75311-80007iAE70,KE70..SR198108-198304

SR

main75311-80008iTE71..GT..2D198108-198304

GT

main75311-80009iTE71..CP198108-198304

LEVIN

main75311-80010iAE70..SX..2D198108-198304

SX

main75311-80015iKE70..4F..CTD198110-198208

EXTRA,TOYOTA

main75311-80015iAE70..GL..4D198202-198207

TOYOTA

main75311-80025iCE7#,KE7#198308-198508

75341PLATE, INSTRUMENT PANEL NAME, NO.1

main55511-12180-03iAE70,KE7#,TE7#..SED,V197903-198108

GRAY METALLIC,GRAY

main55511-12180-04iAE70,KE70,TE70,71..SED197903-198108

BLUE METALLIC,BLUE

main55511-12180-06iAE70,KE7#,TE7#..SED,V197903-198108

BROWN METALLIC,BROWN

75441PLATE, REAR NAME, NO.1

main75441-12240iAE70,CE70,KE70,TE70,71197903-198304

TOYOTA

75461PLATE, REAR NAME, NO.2 (MODEL MARK)

main75442-12710iAE70,KE7#,TE7#197903-198304

COROLLA

main75471-13020iKE73198205-198308

WAGON

main75471-13030iCE72,KE73..DX198308-198508

WAGON

main75471-13031iCE72,KE73198508-198707

WAGON

75462PLATE, REAR NAME, NO.3 (DISPLACEMENT)

main75444-12040iAE70197903-198304

1.5

main75444-12050iTE73,74197908-198304

1.6

main75444-12080iTE70197908-198108

1.8

main75444-13010iKE74198308-198407

1.5

main75444-13011iKE74198407-198508

1.5

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75443-12130iAE70,CE7#,KE7#,TE73,74..CTD,DX197903-198308

DX

main75443-12140iAE70,CE7#,KE7#,TE70,73,74..GL197903-198308

GL

main75443-12150iAE70,TE70..SE197903-198304

SE

main75443-12160iTE71..HT,SED197903-198304

GT DOHC

main75443-12220iAE70,KE70,TE70..SL197903-198108

SL

main75443-12240iAE70,KE70..SR197903-198304

SR

main75443-12280iTE71..LB197903-198304

GT DOHC

main75443-12290iAE70..SX198108-198304

SX

main75443-12480iAE70..SE..4D198209-198304

SE SALOON

main75443-13020iCE7#,KE7#..DX198308-198407

DX

main75443-13021iCE7#,KE7#..DX198407-198508

DX

main75443-13022iKE72,73..DX198508-198707

DX

main75443-13030iCE7#,KE7#..GL198308-198407

GL

main75443-13031iCE7#,KE7#..GL198407-198508

GL

main75443-13032iKE72,73..GL198508-198707

GL

main75443-13050iKE74..DX198508-198707

1.5DX

main75443-13060iKE74..GL198508-198707

1.5GL

main75443-13080iCE7#..DX198508-198707

DX DIESEL

main75443-13090iCE7#..GL198508-198707

GL DIESEL

main75445-12020iKE70..4F..DX..4D198004-198108

EXTRA

main75445-12030iAE70..(3FC,4F)..GL..4D198104-198108

SUPER

75465PLATE, REAR NAME, NO.5 (MECHANISM)

main75441-30040iAE70,KE70,TE70..5F..(GL,SE,SL)197903-198108

5-SPEED

main75444-12120iCE7#198202-198308

DIESEL

main75445-12070iCE7#198308-198407

DIESEL

main75445-13010iCE7#198407-198508

DIESEL

75471PLATE, REAR BODY NAME, NO.1(MODEL MARK)

main75443-12250iTE71..LVN197903-198304

LEVIN

main75443-12310iTE71..LVS198108-198304

LEVIN-S

9016450051

main90164-50051

9020205009

main90202-05009

9046805015

main90468-05015

12 parts on this diagram · 5 diagrams in section
