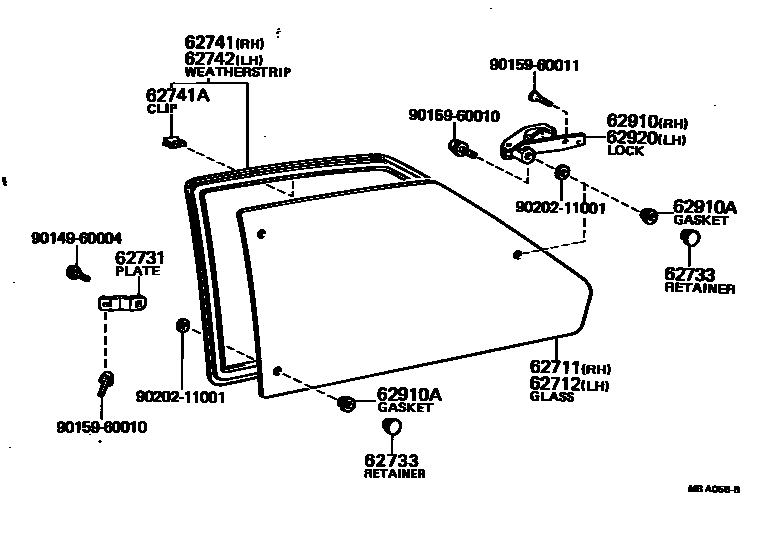

QUARTER WINDOW
62711GLASS, QUARTER WINDOW, RH
*TEM,T=4.0
*TT,T=4.0
*TT,T=4.0,FR
*TT,T=3.5,FR
*TEM,T=4.0
*TEM,T=3.5
*TT,T=4.0
*TT,T=4.0,RR
*TT,T=3.5,RR
*TT,T=4.0
*TT,T=3.5
62712GLASS, QUARTER WINDOW, LH
*TEM,T=4.0
*TT,T=4.0
*TT,T=4.0,FR
*TT,T=3.5,FR
*TEM,T=4.0
*TEM,T=3.5
*TT,T=4.0
*TT,T=4.0,RR
*TT,T=3.5,RR
*TT,T=4.0
*TT,T=3.5
62731PLATE, QUARTER OR SIDE WINDOW HINGE
62733RETAINER, QUARTER OR SIDE WINDOW HINGE
62741WEATHERSTRIP, QUARTER WINDOW, RH
62741ACLIP, QUARTER WINDOW WEATHERSTRIP
62742WEATHERSTRIP, QUARTER WINDOW, LH
62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910AGASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
62920LOCK ASSY, QUARTER WINDOW, LH
9014960004
main90149-60004
9015960010
main90159-60010
9015960011
main90159-60011
9020211001
main90202-11001
14 parts on this diagram · 5 diagrams in section
