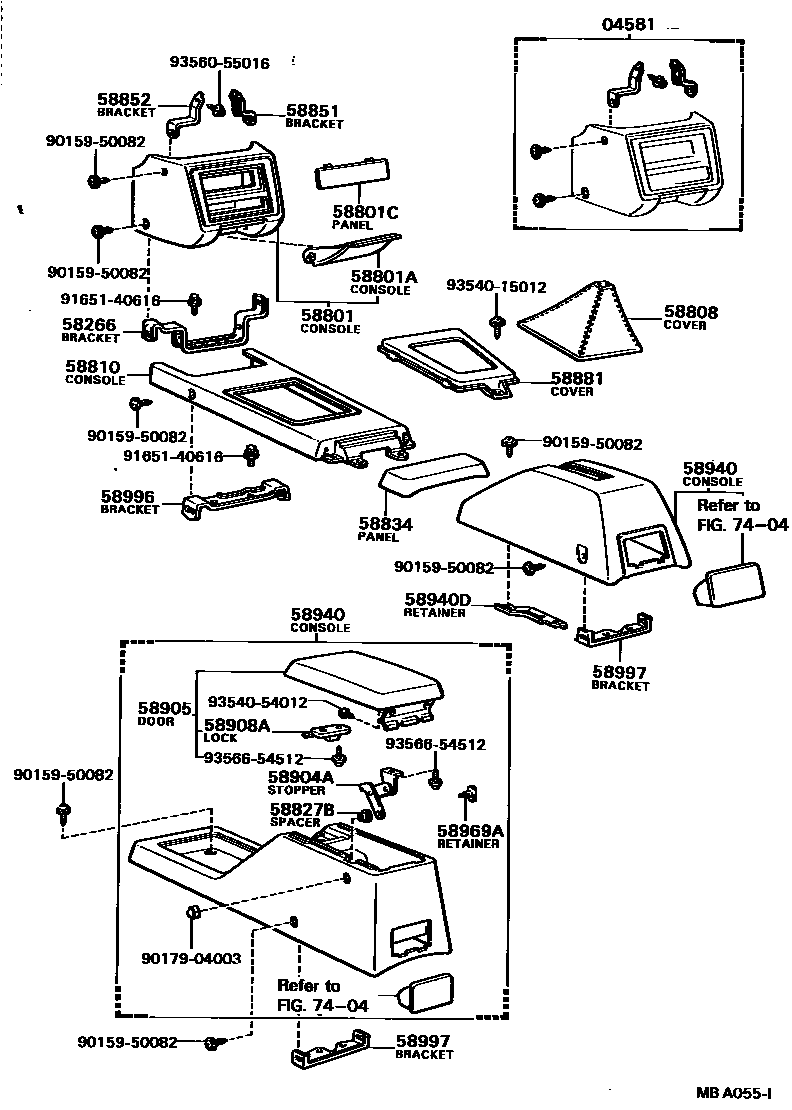

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1

04581FITTING KIT, CONSOLE

main04581-12020iAE70,KE70,TE70,71..SED197903-198108

main04581-12030iAE70,KE70,TE70,71..CP,HT,LB197903-198108

W/O *RCM

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58902-12010iAE70,KE70,TE70,71..SED197903-198108

W/STEREO

main58902-12020iAE70,KE70,TE70,71..CP,HT,LB197903-198108

main58991-12020iKE70..4F..DX..4D;AE70,KE7#,TE7#..(SED,V)..(GL,GT,SE)197903-198108

58801CONSOLE SUB-ASSY, UPPER

main58801-12010-01iTE71..4D197903-198108

BLACK,BLACK,TRIM2#

sub58801-12021

sub58801-12010

main58801-12010-04iTE71..4D197903-198108

BLUE,BLUE,TRIM8#

sub58801-12021

sub58801-12010

main58801-12010-05iTE71..4D197903-197908

BEIGE,BEIGE,TRIM4#

sub58801-12021

sub58801-12010

main58801-12010-15iTE71..4D197908-198108

BEIGE,BEIGE,TRIM2#

sub58801-12021

sub58801-12010

main58801-12020-01iAE70,KE7#,TE70,73..(SED,V)..GL197903-197912

BLACK,BLACK,TRIM2#

sub58801-12021

main58801-12020-04iAE70,KE70,TE70..SED..GL197903-197912

BLUE,BLUE,TRIM8#

sub58801-12021

main58801-12020-05iAE70,KE70..SED..GL197903-197908

BEIGE,BEIGE,TRIM4#

sub58801-12021

main58801-12020-15iAE70,KE70..SED..(CTD,DX)197908-197912

BEIGE,BEIGE,TRIM4#

sub58801-12021

main58801-12021-01iAE70,KE7#,TE70,73..(SED,V)..GL197912-198108

BLACK,BLACK,TRIM2#

sub58801-12021

main58801-12021-04iAE70,KE70,TE70..SED..GL197912-198108

BLUE,BLUE,TRIM8#

sub58801-12021

main58801-12021-15iAE70,KE70..SED..(CTD,DX)197912-198108

BEIGE,BEIGE,TRIM4#

sub58801-12021

main58801-12030-01iAE70,TE70..SE..4D197903-198108

BLACK,BLACK,TRIM2#

sub58801-12021

sub58801-12030

main58801-12030-04iAE70,TE70..SE..4D197903-198108

BLUE,BLUE,TRIM8#

sub58801-12021

sub58801-12030

main58801-12030-05iAE70,TE70..SE..4D197903-198108

BEIGE,BEIGE,TRIM4#

sub58801-12021

sub58801-12030

main58813-12040-01iAE70,KE70,TE70,71..CP,HT,LB197903-198108

BLACK,BLACK,TRIM2#

sub58813-12040

main58813-12040-04iAE70,KE70,TE70,71..CP,HT,LB197903-198108

BLUE,BLUE,TRIM8#

sub58813-12040

main58813-12040-06iAE70,KE70,TE70,71..CP,HT,LB197903-198108

DARK BROWN,BROWN,TRIM4#

sub58813-12040

main58813-12041-01iAE70,KE70,TE71..CP,HT,LB198108-198304

BLACK,BLACK,TRIM2#

sub58813-12041

main58813-12041-04iAE70,KE70,TE71..CP,HT,LB198108-198304

BLUE,BLUE,TRIM8#

sub58813-12041

main58813-12041-06iAE70,KE70,TE71..CP,HT,LB198108-198304

DARK BROWN,BROWN,TRIM4#

sub58813-12041

main58813-12050-01iAE70,KE70,TE70,71..SED..(GL,GT,SE)197903-198108

W/CAR COMPO,BLACK,BLACK,TRIM2#

sub58813-12050

main58813-12050-04iAE70,KE70,TE70,71..SED..(GL,GT,SE)197903-198108

W/CAR COMPO,BLUE,BLUE,TRIM8#

sub58813-12050

main58813-12050-05iAE70,KE70,TE71..SED..(GL,GT,SE)197903-197908

W/CAR COMPO,BEIGE,BEIGE,TRIM4#

sub58813-12050

main58813-12050-15iAE70,KE70,TE70,71..SED..(GL,GT,SE)197908-198108

W/CAR COMPO,BEIGE,BEIGE,TRIM2#

sub58813-12050

main58813-12060-01iAE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR)197903-198003

W/CAR COMP0,BLACK,BLACK,TRIM2#

main58813-12060-04iAE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR)197903-198003

W/CAR COMP0,BLUE,BLUE,TRIM8#

main58813-12060-06iAE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR)197903-198003

W/CAR COMP0,DARK BROWN,BROWN,TRIM4#

main58813-12061-01iAE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR)198003-198108

W/CAR COMP0,BLACK,BLACK,TRIM2#

main58813-12061-04iAE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR)198003-198108

W/CAR COMP0,BLUE,BLUE,TRIM8#

main58813-12061-06iAE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR)198003-198108

W/CAR COMPO,DARK BROWN,BROWN,TRIM4#

main58813-12070-01iAE70,CE7#,KE7#,TE7#..(GL,GT,SE,SX)..4D198108-198308

BLACK,BLACK,TRIM2#

sub58801-12050

main58813-12070-04iAE70,CE70,KE70,TE71..(GL,GT,SE,SX)..4D198108-198304

BLUE,BLUE,TRIM8#

sub58801-12050

main58813-12070-06iAE70,CE7#,KE7#,TE7#..(GL,GT,SE,SX)..4D198108-198308

DARK BROWN,BROWN,TRIM4#

sub58801-12050

main58813-12100-02iCE7#,KE7#..GL198308-198409

MAROON,RED/MAROON,TRIM3#

main58813-12100-03iCE7#,KE7#..GL198308-198707

GRAY,GRAY,TRIM1#

main58813-12100-06iCE7#,KE7#..GL198409-198707

BROWN,BROWN,TRIM4#

58801ABOX, INSTRUMENT PANEL COIN(FOR UPPER CONSOLE)

main55441-12070-01iAE70,KE7#,TE7#..(SED,V)..(GL,GT,SE)197903-198108

BLACK,BLACK,TRIM2#

sub55441-12070

main55441-12070-04iAE70,KE70,TE70,71..SED..(GL,GT,SE)197903-198108

BLUE,BLUE,TRIM8#

sub55441-12070

main55441-12070-05iAE70,KE70..SED..(CTD,DX)197903-197908

BEIGE,BEIGE,TRIM4#

sub55441-12070

main55441-12070-15iAE70,KE7#,TE7#..(SED,V)..(GL,GT,SE)197908-198108

BEIGE,BEIGE,TRIM4#

sub55441-12070

58801CPANEL, STEREO PLAYER FINISH

main55423-12040iKE70..4F..DX..4D;AE70,KE7#,TE7#..(SED,V)..(GL,GT,SE)197903-198108

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12070-01iAE70,TE71..GT,LVN,SE,SR197903-198308

BLACK,BLACK,TRIM2#

main58808-12070-04iKE70..4F..DX..4D;AE70,KE70,TE70,71..MTM..(GL,GT,LVN,SE,SL,SR)197903-198304

BLUE,BLUE,TRIM8#

main58808-12070-05iAE70,TE71..(GT,SE)..4D197903-198108

BEIGE,BEIGE,TRIM4#

main58808-12070-06iAE70,KE70,TE70,71..(HT,LB)..MTM..(GL,GT,SE)197903-198308

DARK BROWN,BROWN,TRIM4#

58810CONSOLE ASSY

main58811-12220-01iKE70..4F..DX..4D197903-198108

BLACK,BLACK,TRIM2#

sub58811-12220

main58811-12220-04iKE70..4F..DX..4D197903-198108

BLUE,BLUE,TRIM8#

sub58811-12220

main58811-12220-05iAE70,KE70,TE71..SED..MTM..(GL,GT,SE)197903-197908

BEIGE,BEIGE,TRIM4#

sub58811-12220

main58811-12220-15iAE70,KE7#,TE7#..(SED,V)..MTM..(GL,GT,SE)197908-198108

BEIGE,BEIGE,TRIM4#

sub58811-12220

main58811-12230-01iKE70..4F..DX..4D197903-198108

COLD SPEC,BLACK,BLACK,TRIM2#

sub58811-12230

main58811-12230-04iKE70..4F..DX..4D197903-198108

COLD SPEC,BLUE,BLUE,TRIM8#

sub58811-12230

main58811-12230-05iAE70,KE70,TE71..SED..MTM..(GL,GT,SE)197903-197908

COLD SPEC,BEIGE,BEIGE,TRIM4#

sub58811-12230

main58811-12230-15iKE70..4F..DX..4D197908-198108

COLD SPEC,BEIGE,BEIGE,TRIM4#

sub58811-12230

main58811-12240-01iAE70,KE70,TE70,73..(SED,V)..ATM..(GL,SE)197903-198108

BLACK,BLACK,TRIM2#

sub58811-12240

main58811-12240-04iAE70,KE70,TE70..SED..ATM..(GL,SE)197903-198108

BLUE,BLUE,TRIM8#

sub58811-12240

main58811-12240-05iKE70..SED..2FC..GL197903-197908

BEIGE,BEIGE,TRIM4#

sub58811-12240

main58811-12240-15iAE70,KE70,TE70,73..(SED,V)..ATM..(GL,SE)197908-198108

BEIGE,BEIGE,TRIM4#

sub58811-12240

main58811-12250-01iAE70,KE70,TE70,73..(SED,V)..ATM..(GL,SE)197903-198108

COLD SPEC,BLACK,BLACK,TRIM2#

sub58811-12250

main58811-12250-04iAE70,KE70,TE70..SED..ATM..(GL,SE)197903-198108

COLD SPEC,BLUE,BLUE,TRIM8#

sub58811-12250

main58811-12250-05iKE70..SED..2FC..GL197903-197908

COLD SPEC,BEIGE,BEIGE,TRIM4#

sub58811-12250

main58811-12250-15iAE70,KE70,TE70,73..(SED,V)..ATM..(GL,SE)197908-198108

COLD SPEC,BEIGE,BEIGE,TRIM4#

sub58811-12250

main58811-12260-01iAE70,KE70,TE70,71..(CP,HT,LB)..MTM197903-198108

BLACK,BLACK,TRIM2#

sub58811-12260

main58811-12260-04iAE70,KE70,TE70,71..(CP,HT,LB)..MTM197903-198108

BLUE,BLUE,TRIM8#

sub58811-12260

main58811-12260-06iAE70,KE70,TE70,71..(CP,HT,LB)..MTM197903-198108

DARK BROWN,BROWN,TRIM4#

sub58811-12260

main58811-12270-01iAE70,KE70,TE73..ATM..DX197903-198108

COLD SPEC,W/OUPR CONSOLE,BLACK,BLACK,TRIM2#

sub58811-12270

main58811-12270-04iAE70,KE70..ATM..DX197903-198108

BLUE,BLUE,TRIM8#

sub58811-12270

main58811-12270-05iKE70..2FC..DX197903-197908

BEIGE,BEIGE,TRIM4#

sub58811-12270

main58811-12270-15iAE70,KE70,TE73..ATM..DX197908-198108

BEIGE,BEIGE,TRIM4#

sub58811-12270

main58811-12280-01iAE70,KE70,TE70,71..(CP,HT,LB)..MTM197903-198108

COLD SPEC,BLACK,BLACK,TRIM2#

sub58811-12280

main58811-12280-04iAE70,KE70,TE70,71..(CP,HT,LB)..MTM197903-198108

COLD SPEC,BLUE,BLUE,TRIM8#

sub58811-12280

main58811-12280-06iAE70,KE70,TE70,71..(CP,HT,LB)..MTM..(GL,GT,LVN,SE,SL,SR)197903-198108

COLD SPEC,DARK BROWN,BROWN,TRIM4#

sub58811-12280

main58811-12290-01iAE70,KE70,TE70..(CP,HT,LB)..ATM197903-198108

BLACK,BLACK,TRIM2#

sub58811-12290

main58811-12290-04iAE70,KE70,TE70..(CP,HT,LB)..ATM197903-198108

BLUE,BLUE,TRIM8#

sub58811-12290

main58811-12290-06iAE70,KE70,TE70..(CP,HT,LB)..ATM197903-198108

DARK BROWN,BROWN,TRIM4#

sub58811-12290

main58811-12300-01iAE70,KE70,TE70..(CP,HT,LB)..ATM197903-198108

COLD SPEC,BLACK,BLACK,TRIM2#

sub58811-12300

main58811-12300-04iAE70,KE70,TE70..(CP,HT,LB)..ATM197903-198108

COLD SPEC,BLUE,BLUE,TRIM8#

sub58811-12300

main58811-12300-06iAE70,KE70,TE70..(CP,HT,LB)..ATM197903-198108

COLD SPEC,DARK BROWN,BROWN,TRIM4#

sub58811-12300

main58811-12310-01iKE70..LB..DX198108-198308

BLACK,BLACK,TRIM2#

main58811-12310-02iCE7#,KE7#..MTM..GL198308-198409

MAROON,RED/MAROON,TRIM3#

main58811-12310-03iCE7#,KE7#..MTM..GL198308-198707

GRAY,GRAY,TRIM1#

main58811-12310-04iKE70..LB..DX198108-198304

BLUE,BLUE,TRIM8#

main58811-12310-06iKE70..LB..DX198108-198308

DARK BROWN,BROWN,TRIM4#

main58811-12310-16iCE7#,KE7#..MTM..GL198409-198707

BROWN,BROWN,TRIM4#

main58811-12320-01iAE70,CE70,KE70,TE74..ATM198108-198308

BLACK,BLACK,TRIM2#

main58811-12320-02iKE74..3FC198308-198409

MAROON,RED/MAROON,TRIM3#

main58811-12320-03iCE71,KE74..ATM198308-198707

GRAY,GRAY,TRIM1#

main58811-12320-04iAE70,CE70,KE70..ATM198108-198304

BLUE,BLUE,TRIM8#

main58811-12320-06iAE70,CE70,KE70,TE74..ATM198108-198308

DARK BROWN,BROWN,TRIM4#

main58811-12320-16iCE71,KE74..ATM198409-198707

BROWN,BROWN,TRIM4#

58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER

main58827-20021iAE70..(3FC,4F)..GL..4D198104-198108

VICTORY

main58827-20021iAE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX197903-198304

main58827-20021iAE70..GL..4D198208-198304

EXTRA

58834PANEL, CONSOLE END

main58923-12010-01iAE70,CE7#,KE7#,TE70,73,74..(SED,V,WG)..MTM..GL197903-198308

BLACK,BLACK,TRIM2#

sub58923-12010

main58923-12010-02iCE7#,KE7#..MTM..GL198308-198409

MAROON,RED/MAROON,TRIM3#

sub58923-12010

main58923-12010-03iCE7#,KE7#..MTM..GL198308-198707

GRAY,GRAY,TRIM1#

sub58923-12010

main58923-12010-04iAE70,CE70,KE70,TE70..SED..ATM..(CTD,DX,GL)197903-198304

BLUE,BLUE,TRIM8#

sub58923-12010

main58923-12010-05iAE70,KE70..SED..MTM..GL197903-197908

BEIGE,BEIGE,TRIM4#

sub58923-12010

main58923-12010-06iAE70,CE70,KE70,TE74..ATM..(CTD,DX,GL)..4D197903-198308

DARK BROWN,BROWN,TRIM4#

sub58923-12010

main58923-12010-15iAE70,KE7#,TE70,73..(SED,V)..MTM..GL197908-198108

BEIGE,BEIGE,TRIM4#

sub58923-12010

main58923-12010-16iCE7#,KE7#..MTM..GL198409-198707

BROWN,BROWN,TRIM4#

sub58923-12010

58851BRACKET, CONSOLE SUPPORT, UPPER RH

main58857-12010iKE71,TE73..GL197903-198108

main58857-12030iAE70,CE7#,KE7#,TE7#..(GL,GT,SE,SX)..4D198108-198707

58852BRACKET, CONSOLE SUPPORT, UPPER LH

main58858-12010iAE70,KE70,TE70,71..SED197903-198108

main58858-12030iAE70,CE7#,KE7#,TE7#..(GL,GT,SE,SX)..4D198108-198707

58881COVER, SHIFTING HOLE

main58843-12050-01iKE70..(CP,HT,LB)..DX197903-198304

BLACK,BLACK,TRIM2#

sub58843-12050

main58843-12050-02iCE7#,KE7#..MTM..GL198308-198409

MAROON,RED/MAROON,TRIM3#

sub58843-12050

main58843-12050-03iCE7#,KE7#..MTM..GL198308-198707

GRAY,GRAY,TRIM1#

sub58843-12050

main58843-12050-04iAE70,KE70,TE71..(CP,HT,LB)..MTM197903-198304

BLUE,BLUE,TRIM8#

sub58843-12050

main58843-12050-05iAE70,KE70..SED..MTM..GL197903-197908

BEIGE,BEIGE,TRIM4#

sub58843-12050

main58843-12050-06iAE70,KE70..(CP,HT,LB)..(GL,SL)197903-198304

DARK BROWN,BROWN,TRIM4#

sub58843-12050

main58843-12050-15iKE70,TE73..MTM..GL197908-198108

BEIGE,BEIGE,TRIM4#

sub58843-12050

main58843-12050-16iCE7#,KE7#..MTM..GL198409-198707

BROWN,BROWN,TRIM4#

sub58843-12050

58904ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58904-22020iAE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX197903-198304

main58904-22020iAE70..(3FC,4F)..GL..4D198104-198108

VICTORY

main58904-22020iAE70..GL..4D198208-198304

EXTRA

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12020-01iAE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX197903-198304

BLACK,BLACK,TRIM2#

sub58905-12020

main58905-12020-01iAE70..GL..4D198208-198304

EXTRA,BLACK,BLACK,TRIM2#

sub58905-12020

main58905-12020-01iAE70..(3FC,4F)..GL..4D198104-198108

VICTORY,BLACK,BLACK,TRIM2#

sub58905-12020

main58905-12020-04iAE70..GL..4D198208-198304

EXTRA,BLUE,BLUE,TRIM8#

sub58905-12020

main58905-12020-04iAE70..(3FC,4F)..GL..4D198104-198108

VICTORY,BLUE,BLUE,TRIM8#

sub58905-12020

main58905-12020-04iAE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX197903-198304

BLUE,BLUE,TRIM8#

sub58905-12020

main58905-12020-05iAE70,TE71..(GT,SE)..4D197903-197908

BEIGE,BEIGE,TRIM4#

sub58905-12020

main58905-12020-06iAE70,CE70,KE70,TE71..GT,LVN,LVS,SE,SR,SX197903-198304

DARK BROWN,BROWN,TRIM4#

sub58905-12020

main58905-12020-06iAE70..GL..4D198208-198304

EXTRA,DARK BROWN,BROWN,TRIM4#

sub58905-12020

main58905-12020-15iAE70..(3FC,4F)..GL..4D198104-198108

VICTORY,BEIGE,BEIGE,TRIM4#

sub58905-12020

main58905-12020-15iAE70,TE70,71..(GT,SE)..4D197908-198108

BEIGE,BEIGE,TRIM4#

sub58905-12020

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12010iAE70..GL..4D198208-198304

EXTRA

main58908-12010iAE70..(3FC,4F)..GL..4D198104-198108

VICTORY

main58908-12010iAE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX198010-198304

58940CONSOLE ASSY, REAR

main58901-10010-03iCE7#,KE7#..05S198508-198707

GRAY,GRAY,TRIM1#

sub58901-16070

sub58901-10010

main58901-10010-26iCE7#,KE7#..(DX,GL)..05S198508-198707

BROWN,BROWN,TRIM4#

sub58901-16070

sub58901-10010

main58901-12010-01iAE70,CE7#,KE7#,TE70,73,74..CTD,DX,GL,SL,STD197903-198308

BLACK,BLACK,TRIM2#

sub58901-12010

main58901-12010-04iAE70,CE70,KE70,TE70..CTD,DX,GL,SL197903-198304

BLUE,BLUE,TRIM8#

sub58901-12010

main58901-12010-05iAE70,KE7#,TE70,73..(SED,V)..(CTD,DX,GL)197908-198108

BEIGE,BEIGE,TRIM4#

sub58901-12010

main58901-12010-06iAE70,KE70..SED..(CTD,DX,GL)197903-197908

LIGHT BROWN,BROWN,TRIM4#

sub58901-12010

main58901-12010-16iAE70,KE70,TE70..(CP,HT,LB)..(DX,GL,SL)197903-198308

DARK BROWN,BROWN,TRIM4#

sub58901-12010

main58901-12020-01iAE70..GL..4D198208-198304

EXTRA,BLACK,BLACK,TRIM2#

sub58901-12020

main58901-12020-01iAE70..(3FC,4F)..GL..4D198104-198108

VICTORY,BLACK,BLACK,TRIM2#

sub58901-12020

main58901-12020-01iAE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX197903-198304

BLACK,BLACK,TRIM2#

sub58901-12020

main58901-12020-04iAE70..GL..4D198208-198304

EXTRA,BLUE,BLUE,TRIM8#

sub58901-12020

main58901-12020-04iAE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX197903-198304

BLUE,BLUE,TRIM8#

sub58901-12020

main58901-12020-04iAE70..(3FC,4F)..GL..4D198104-198108

VICTORY,BLUE,BLUE,TRIM8#

sub58901-12020

main58901-12020-05iAE70,TE71..(GT,SE)..4D197903-197908

BEIGE,BEIGE,TRIM4#

sub58901-12020

main58901-12020-06iAE70..GL..4D198208-198304

EXTRA,DARK BROWN,BROWN,TRIM4#

sub58901-12020

main58901-12020-06iAE70,TE70,71..(GT,LVN,SE,SR)..2D197903-198304

DARK BROWN,BROWN,TRIM4#

sub58901-12020

main58901-12020-15iAE70..(3FC,4F)..GL..4D198104-198108

VICTORY,BEIGE,BEIGE,TRIM4#

sub58901-12020

main58901-12020-15iAE70,TE70,71..(GT,SE)..4D197908-198108

BEIGE,BEIGE,TRIM4#

sub58901-12020

main58901-12100-02iCE7#,KE7#..(DX,GL)..05S198308-198409

MAROON,RED/MAROON,TRIM3#

sub58901-12010

main58901-12100-03iCE7#,KE7#..05S198308-198508

GRAY,GRAY,TRIM1#

sub58901-12010

main58901-12100-06iCE7#,KE7#..(DX,GL)..05S198409-198508

BROWN,BROWN,TRIM4#

sub58901-12010

main58910-12060-02iKE72..DX..02S198308-198409

MAROON,RED/MAROON,TRIM3#

sub58901-12010

main58910-12060-03iKE72..02S198308-198508

GRAY,GRAY,TRIM1#

sub58901-12010

main58910-12060-06iKE72..DX..02S198409-198508

BROWN,BROWN,TRIM4#

sub58901-12010

58940DRETAINER, PARKING BRAKE HOLE COVER

main58943-10010iCE7#,KE7#..05S198508-198707

main58943-12020iAE70,CE7#,KE7#,TE70,73,74..CTD,DX,GL,SL,STD197903-198508

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

main58969-20010iAE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX197903-198304

main58969-20010iAE70..(3FC,4F)..GL..4D198104-198108

VICTORY

main58969-20010iAE70..GL..4D198208-198304

EXTRA

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58903-12020iTE71..4D197903-198108

main58995-12010iKE70..4F..DX..4D;KE70,TE73..ATM..DX;AE70..(3FC,5F)..4D;AE70..4F..(GL,SE)..4D;KE7#,TE70,73..(SED,V)..(GL,SE)197903-198707

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-10010iCE7#,KE7#..05S198508-198707

main58997-12010iAE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX197903-198304

main58997-12010iAE70..GL..4D198208-198304

EXTRA

main58997-12010iAE70..(3FC,4F)..GL..4D198104-198108

VICTORY

main58997-12020iAE70,CE7#,KE7#,TE70,73,74..CTD,DX,GL,SL,STD197903-198508

7404

9015950082

main90159-50082

9017904003

main90179-04003

9165140616

main91651-40616

9354015012

main93540-15012

9354054012

main93540-54012

9356055016

main93560-55016

9356654512

main93566-54512

28 parts on this diagram · 5 diagrams in section
