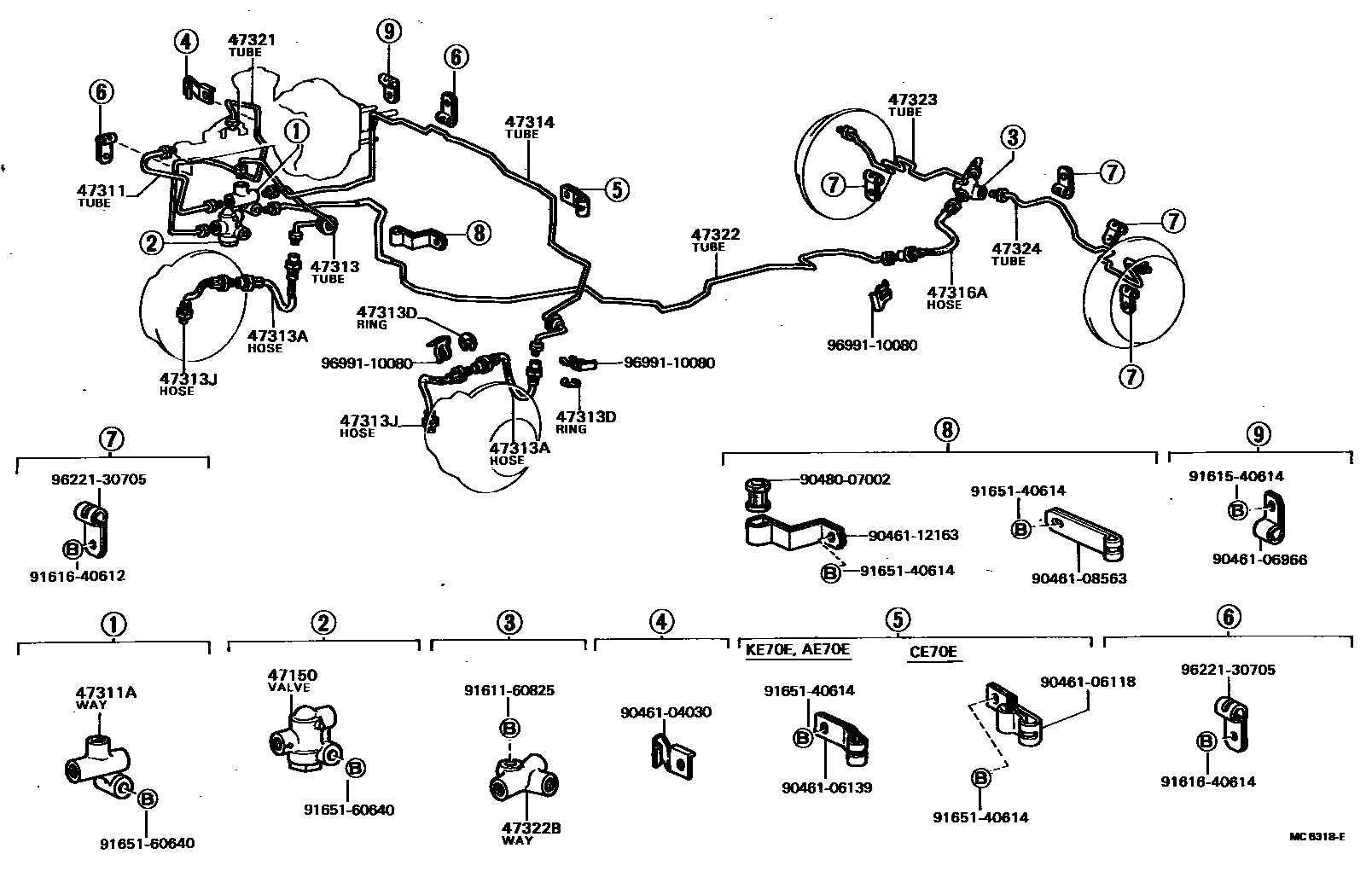

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47150VALVE ASSY, PROPORTIONING

main47150-12031iAE70,CE70,KE70,73,TE70,71197903-198304

sub47150-22050

main47150-16010iCE7#,KE7#198308-198707

47311TUBE, FRONT BRAKE, NO.1

main47312-12030iTE7#197903-198308

main47312-12040iAE70,CE7#,KE7#197903-198308

main47312-12160iCE7#,KE7#198308-198707

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10002iAE70,CE7#,KE7#,TE7#197903-198707

47313TUBE, FRONT BRAKE, NO.3

main47314-12110iAE70,CE7#,KE7#197903-198308

main47314-12130iTE71197903-198304

main47314-12130iTE70..SR197903-198108

RR DISC BRAKE

main47314-12160iTE70,73,74197908-198308

sub47314-12170

main47314-13010iCE7#,KE7#198308-198707

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02393iAE70,CE7#,KE7#,TE7#197903-198508

main90947-02476iCE7#,KE7#198508-198707

47313DRING, E(FOR FRONT FLEXIBLE HOSE SETTING)

main96160-01200iAE70,CE7#,KE7#,TE7#197903-198707

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02224iAE70,CE7#,KE7#,TE7#197903-198508

47314TUBE, FRONT BRAKE, NO.4

main47315-12250iAE70,KE7#197903-198308

sub47315-13010

main47315-12260iTE7#197903-198308

sub47315-12390

main47315-12310iCE7#198202-198308

sub47315-13020

main47315-13010iKE7#198308-198707

main47315-13020iCE7#198308-198707

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02409iCE71,72,KE71,72,73,74,TE73,74197908-198707

sub90947-02724

main96940-32805iAE70,CE70,KE70,TE70,71197903-198304

47321TUBE, REAR BRAKE, NO.1

main47322-12010iTE70,71197903-198304

main47322-12030iAE70,CE70,KE70,73197903-198308

main47322-12050iTE73,74197908-198308

main47322-12080iCE71,KE71,72197908-198308

main47322-13010iCE7#,KE7#198308-198707

47322TUBE, REAR BRAKE, NO.2

main47323-12010iAE70,KE70197903-198108

main47323-12020iTE70,71197903-198304

sub47323-12190

main47323-12030iKE71,72,73197908-198308

sub47323-13040

main47323-12040iTE73,74197908-198308

sub47323-12030

main47323-12110iAE70,KE70198108-198304

sub47323-12180

main47323-12120iCE70198202-198304

sub47323-12180

main47323-13010iCE71198202-198308

sub47323-13040

main47323-13040iKE7#198308-198707

main47323-13050iCE7#198308-198508

main47323-13051iCE7#198508-198707

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10029iCE71,72,KE71,72,73,74,TE73,74197908-198707

main90413-10098iAE70,CE70,KE70,TE70,71197903-198304

47323TUBE, REAR BRAKE, NO.3

main47324-12010iAE70,CE70,KE70197903-198304

sub47324-12120

main47324-12030iTE70,71..GT,LVN,SR197903-198009

RR DISC BRAKE

main47324-12031iTE70,71..GT,LVN,LVS,SR198009-198304

RR DISC BRAKE

sub47324-12150

main47324-12051iTE71198108-198304

RR DRUM BRAKE

sub47324-12071

main47324-12080iTE70197908-198009

main47324-12081iTE70198009-198108

main47324-13010iCE71,KE71,72,73,TE73,74197908-198308

sub47324-13030

main47324-13040iCE7#,KE7#198308-198707

47324TUBE, REAR BRAKE, NO.4

main47325-12010iKE70197903-198304

sub47325-12070

main47325-12020iAE70,CE70197903-198304

sub47325-12120

main47325-12030iTE70,71..GT,LVN,SR197903-198009

RR DISC BRAKE

main47325-12031iTE70,71..GT,LVN,LVS,SR198009-198304

RR DISC BRAKE

sub47325-12150

main47325-12061iTE71198108-198304

RR DRUM BRAKE

sub47325-12081

main47325-12090iTE70197908-198009

main47325-12091iTE70198009-198108

main47325-13030iCE71,KE71,72,73,TE73,74197908-198308

sub47325-13060

main47325-13060iCE7#,KE7#198308-198707

9046104030

main90461-04030

9046106118

main90461-06118

9046106139

main90461-06139

9046106966

main90461-06966

9046108563

main90461-08563

9046112163

main90461-12163

9048007002

main90480-07002

9161160825

main91611-60825

9161540614

main91615-40614

9161640612

main91616-40612

9161640614

main91616-40614

9165140614

main91651-40614

9165160640

main91651-60640

9622130705

main96221-30705

9699110080

main96991-10080

29 parts on this diagram · 4 diagrams in section
