04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-10051i198411-198707

main04479-12060i197903-198306

main04479-12100i198306-198707

main04479-16010i197903-198411

04491PAD KIT, DISC BRAKE, FRONT

main04491-12110i197903-198308

main04491-12120i197903-198108

main04491-12160i198108-198707

main04491-12220i198308-198411

main04491-12222i198411-198707

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-12020i197903-198308

main47707-12030i197903-198707

main47707-12070i198308-198707

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90101-08031×4i197903-197905

main90119-08199×2i197903-198306

main90119-08217×4i197905-198707

main90119-08431×2i198306-198707

47707BCOLLAR(FOR FRONT DISC BRAKE TORQUE PLATE)

main90387-13002×4i197903-198707

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47707-12020i197903-198308

main47707-12070i198308-198707

main47708-12020i197903-198707

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-10020×4i197903-198707

main90101-12332×4i197903-198707

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-10050×2i198609-198707

main47547-20010×2i197903-198609

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2i197903-198707

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-10010×2i197903-198411

main47716-10020×2i198411-198707

main47716-14020×2i197903-198707

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47719-10030×2i197903-198411

main47736-10010×2i198411-198707

main47736-12010×2i197903-198701

main47736-12040×4i198701-198707

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12090i197903-198308

main47730-12100i197903-198306

main47730-12240i198306-198707

main47730-12260i198308-198707

47731PISTON, FRONT DISC BRAKE

main47731-12040×2i197903-198707

main47731-12050×2i197903-198707

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-54038×2i197903-198306

main90522-56001×2i197903-198707

main90522-58001×2i198306-198707

47738PLATE, DISC BRAKE PAD GUIDE, NO.2

main47738-10010×2i197903-198411

main47738-10020×2i198411-198707

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-10010×2i197903-198411

main47743-10020×2i198411-198707

main47743-12010i197903-198701

LH

main47748-12050i197903-198701

RH

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-10010×2i198308-198411

main47744-10020×2i198411-198707

main47744-12040×2i197903-198707

main47744-12060×2i197903-198308

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-10010×2i197903-198411

main47745-10020×2i198411-198707

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47743-12020×2i197903-198707

RH=UPR,LH=LWR

main47748-10030×2i197903-198411

main47748-10040×2i198411-198707

main47748-12060×2i197903-198707

RH=LWR,LH=UPR

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12090i197903-198308

main47750-12100i197903-198306

main47750-12240i198306-198707

main47750-12260i198308-198707

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-10020×4i197903-198707

main47769-12010×2i197903-198108

main47769-14010×2i198108-198306

main47769-28010×2i198306-198707

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-12010×2i197903-198108

main47775-14010×2i198108-198707

main47775-16010×8i197903-198707

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-12060i197903-198707

main47703-12070i197903-198308

main47703-12080i198308-198707

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-10082×8i197903-198111

main90119-10157×8i198308-198707

main91111-71020×8i197903-198308

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-12060i197903-198707

main47704-12070i197903-198308

main47704-12080i198308-198707

9453101000

main94531-01000

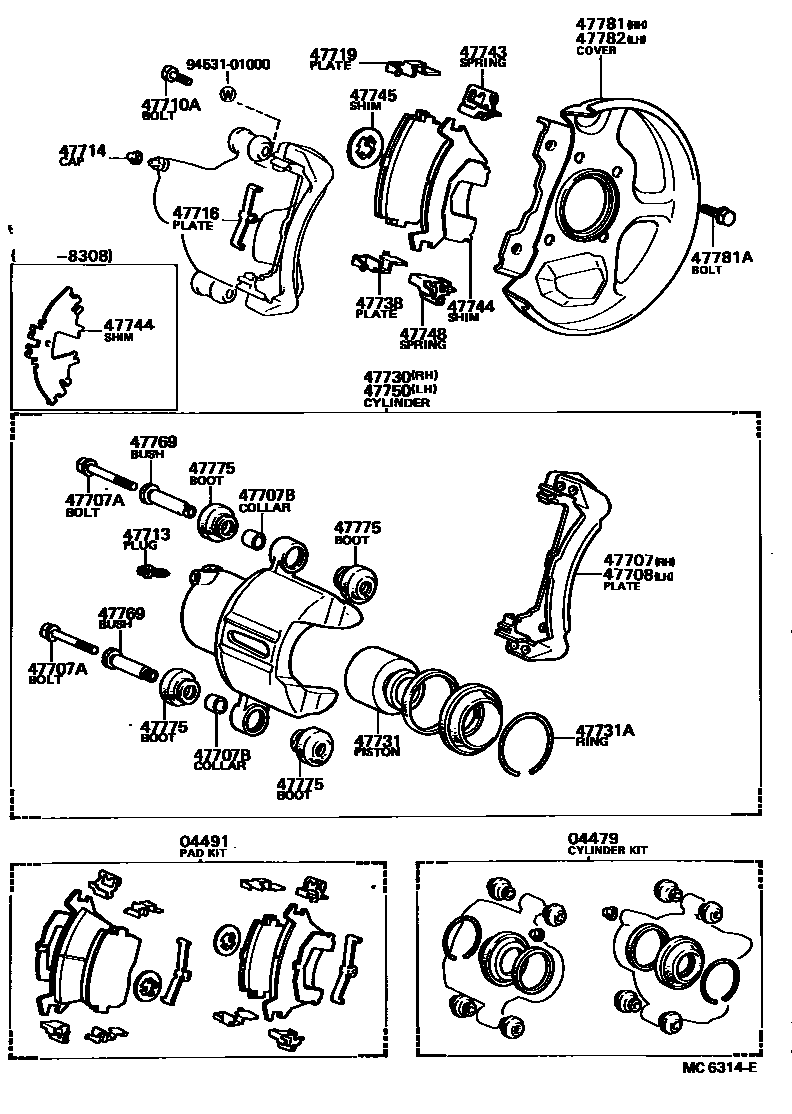

FRONT DISC BRAKE CALIPER & DUST COVER
