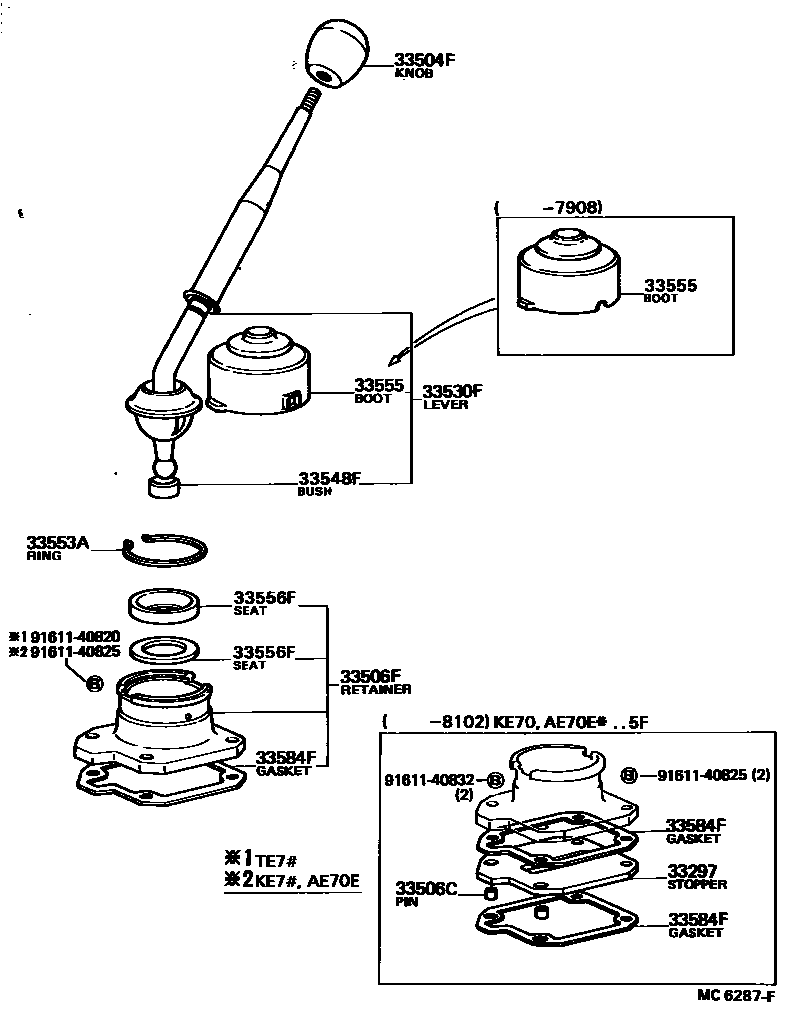

SHIFT LEVER & RETAINER
33297STOPPER, SHIFT LEVER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,BLACK,TRIM2#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
URETHANE,BLACK,BLACK,TRIM2#
URETHANE,BLUE,BLUE,TRIM8#
URETHANE,DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DARK BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
WOODY
WOODY
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
BLACK,BLACK,TRIM2#
WOODY
MAROON,RED/MAROON,TRIM3#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
33506CPIN, SHIFT LEVER RETAINER RING
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33553ARING, SNAP (FOR SHIFT LEVER SPRING SHEET)
33555BOOT, SHIFT LEVER
33556FSEAT, TRANSMISSION SHIFT LEVER BALL
T=13.5
T=3.0
33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
T=0.5,LWR
T=0.3
9161140820
main91611-40820
9161140825
main91611-40825
9161140832
main91611-40832
13 parts on this diagram · 7 diagrams in section
