V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02123i1C..CE7#198206-198707

main99321-00850i2TGEU..TE71197903-198304

L=850

main99321-00870i4K#..KE7#197903-198108

L=870

main99321-00885i4K#..KE7#198108-198212

L=885

main99321-01000i3AU..AE70197903-198304

W/COOLER,L=1000

main99321-50975i3AU..AE70198205-198304

L=975

main99321-50985i3AU..AE70197903-198205

L=985

main99332-60975i1C..CE7#198202-198206

44310ABELT, V(FOR VANE PUMP)

main99332-00805iAE70198108-198304

main99332-01080iTE70..GL,SE,SL197908-198108

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00890iAE70197903-198304

main99322-00930iKE7#197903-198707

main99322-00950iTE7#197903-198308

main99322-50830iCE7#198202-198707

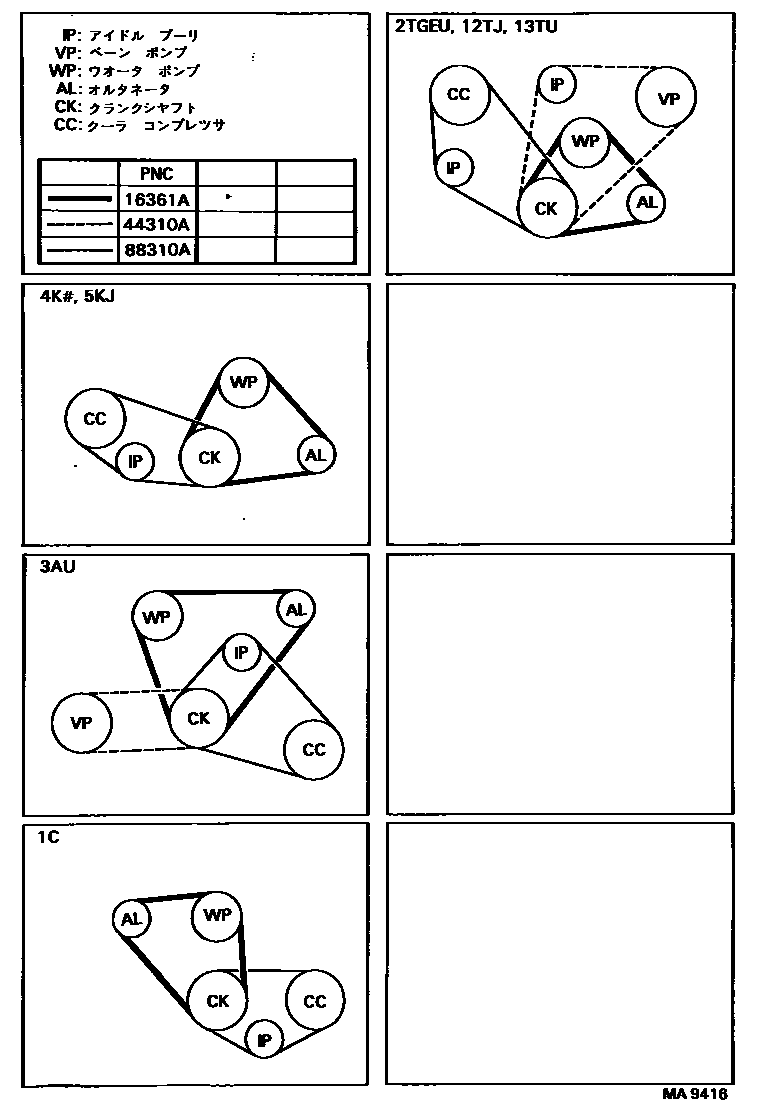

3 parts on this diagram · 1 diagram in section
