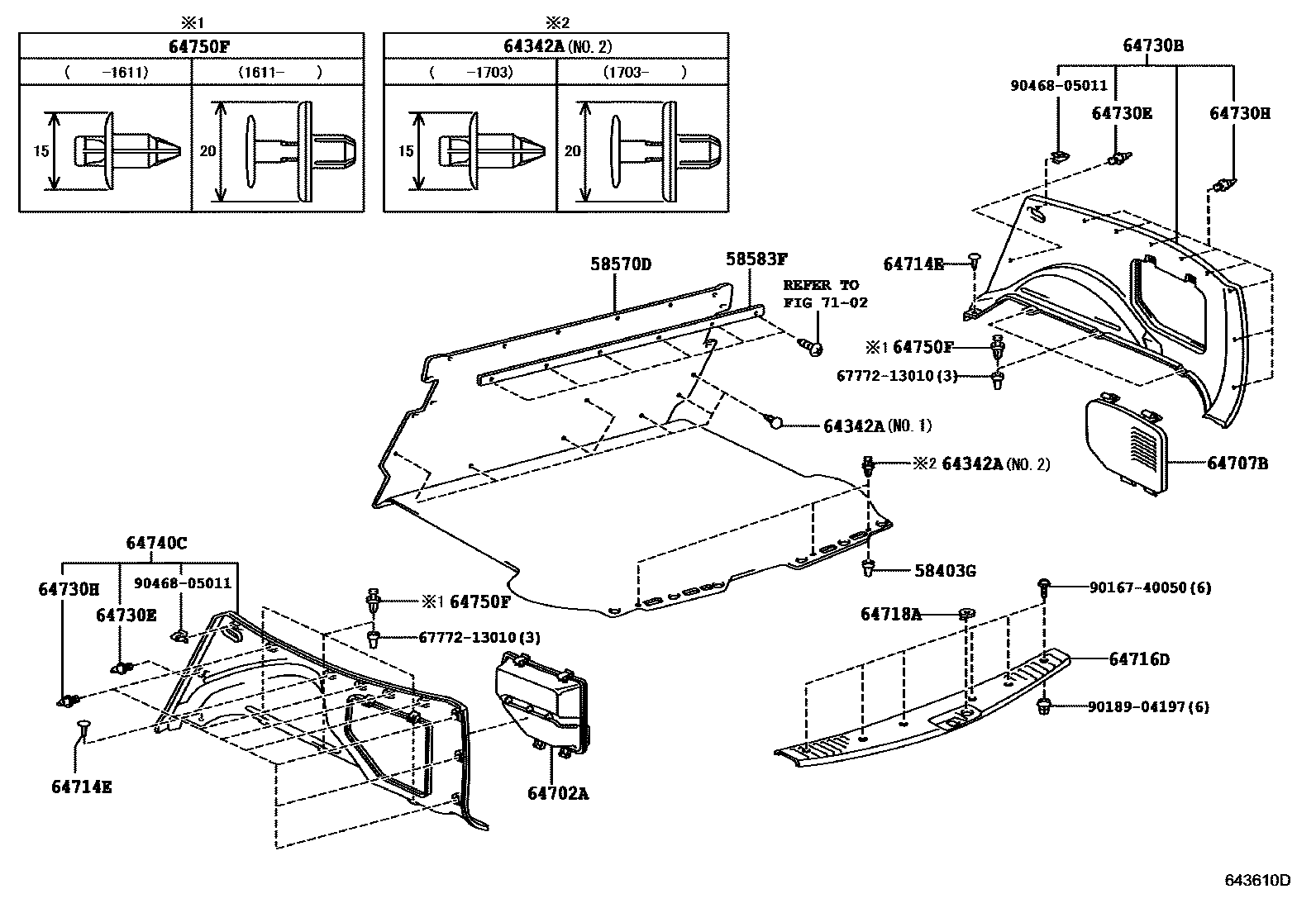

DECK BOARD & DECK TRIM COVER
58403GCAP, DECK BOARD SERVICE HOLE
58570DCARPET ASSY, REAR FLOOR
GRAY,TRIM1#
BLACK,TRIM1#
GRAY,TRIM1#
BLACK,TRIM1#
58583FPLATE, REAR SEATBACK CARPET SUPPORT
64342ACLIP
64702ACOVER SUB-ASSY, DECK TRIM SIDE SERVICE HOLE
BLACK,TRIM1#
BLACK,TRIM1#
64707BCOVER SUB-ASSY, QUARTER TRIM JACK
BLACK,TRIM1#
64714ECLIP(FOR DECK TRIM SIDE COVER)
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM1#
64718ACOVER, DECK TRIM SERVICE HOLE
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM1#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64730HCLIP(FOR DECK TRIM SIDE PANEL)
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM1#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
7102
6777213010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-13010
9016740050
main90167-40050
9018904197
main90189-04197
9046805011
main90468-05011
19 parts on this diagram · 2 diagrams in section
