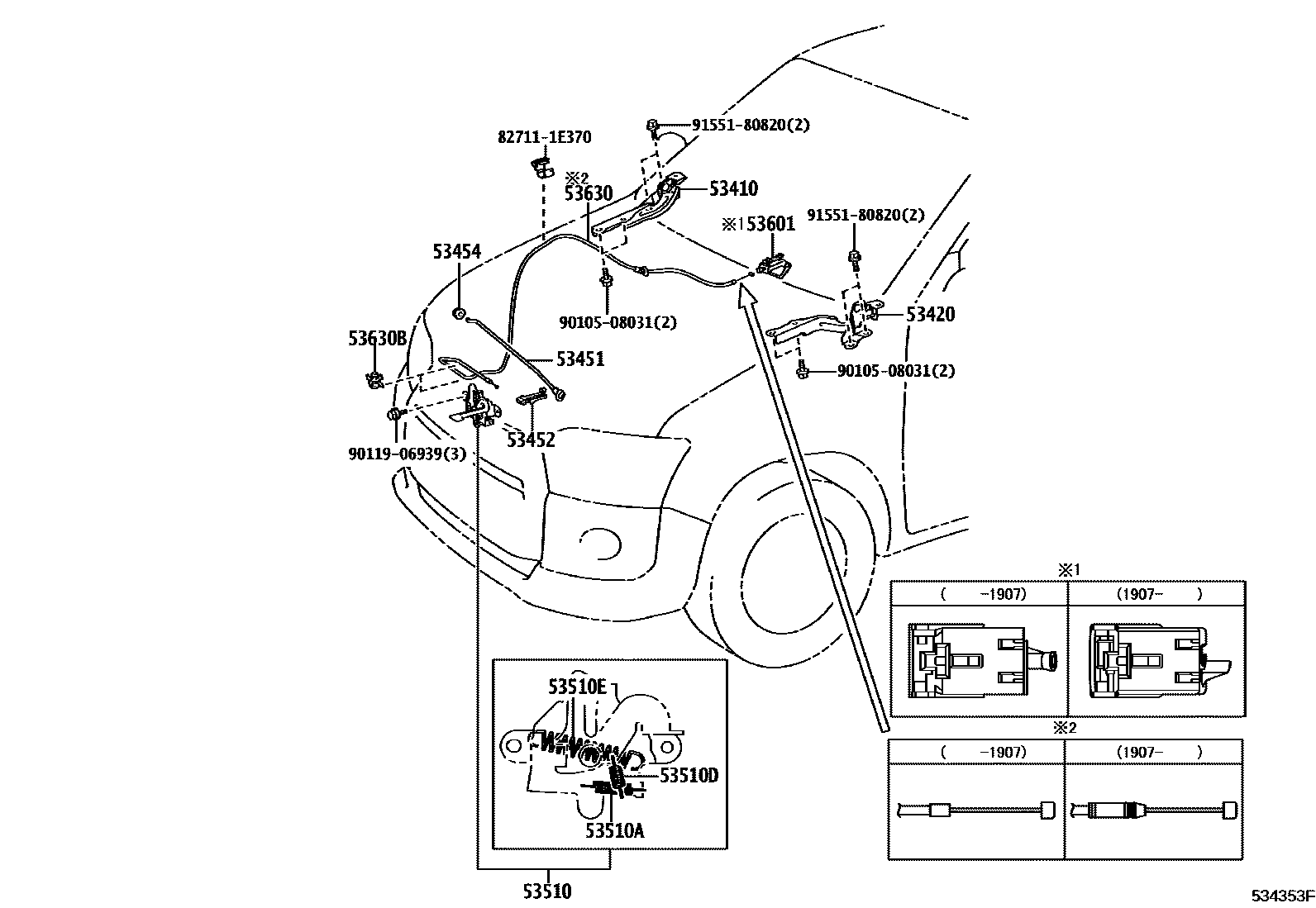

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52410iNCP16#,NHP160,NSP160201409

53420HINGE ASSY, HOOD, LH

main53420-52420iNCP16#,NHP160,NSP160201409

53451ROD, HOOD SUPPORT

main53440-52300iNCP16#,NHP160,NSP160201409

53452HOLDER, HOOD STAY

main53452-52030iNCP16#,NHP160,NSP160201409

53454CLIP, HOOD SUPPORT ROD

main53454-52020iNCP16#,NHP160,NSP160201409

53510LOCK ASSY, HOOD

main53510-52730supersedes 53510-52760iNCP160201409-201609

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNCP16#,NHP160,NSP160201409

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iNCP16#,NHP160,NSP160201409

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iNCP16#,NHP160,NSP160201409

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iNCP16#,NHP160,NSP160201907

BLACK,TRIM1#

main53601-52010-C0iNCP16#,NSP160201409-201612

BLACK,TRIM1#

main53601-52010-C1iNCP16#,NHP160,NSP160201612-201907

BLACK,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52190iNCP16#,NSP160201409-201907

main53630-52191iNCP16#,NSP160201907

main53630-52210iNHP160201812-201907

main53630-52211iNHP160201907

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×2iNCP16#,NHP160,NSP160201409

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9010508031

main90105-08031

9011906939

main90119-06939

9155180820

main91551-80820

16 parts on this diagram · 1 diagram in section
