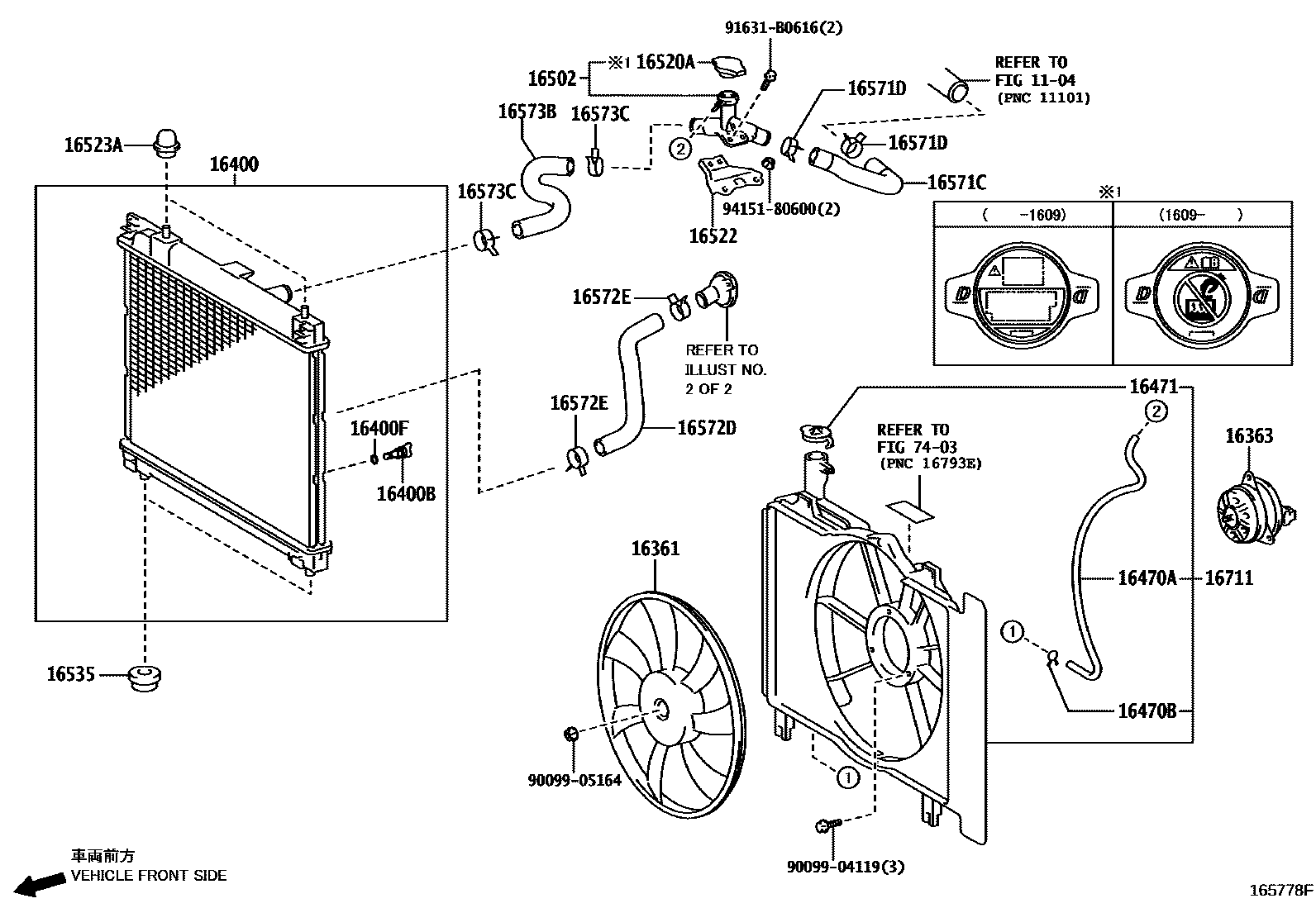

RADIATOR & WATER OUTLET

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1104

16361FAN

main16361-21090i1NZFE..NCP165..PROB201409-202008

main16361-21120i1NZFXE..NHP160201812

main16361-21140i1NZFE..NCP165202008

main16361-47040i1NRFE..NSP160201409

16363MOTOR, COOLING FAN

main16363-21110i1NZFXE..NHP160201812

main16363-28160i1NZFE..NCP165..PROB201409-202008

main16363-47020i1NRFE..NSP160201409

main16363-47060i1NZFE..NCP165202008

16400RADIATOR ASSY

main16400-21270i1NZFE..NCP16#201409-201704

sub16400-21381

main16400-21330i1NZFXE..NHP160201812-202001

sub16400-21331

main16400-21331i1NZFXE..NHP160202002

main16400-21380i1NZFE..NCP16#201705-201802

sub16400-21381

main16400-21381i1NZFE..NCP16#201803

main16400-47090i1NRFE..NSP160201409-201801

sub16400-47141

main16400-47141i1NRFE..NSP160201802

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i1NZ#,1NRFE..NCP16#,NHP160,NSP160201409

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1NZ#,1NRFE..NCP16#,NHP160,NSP160201409

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-21200i1NZFE..NCP165..PROB201409-202008

main16377-47020i1NRFE..NSP160201409

main16378-21180i1NZFXE..NHP160201812

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1NZ#,1NRFE..NCP16#,NHP160,NSP160201409

16471CAP SUB-ASSY, RESERVE TANK

main16471-23010i1NZFXE..NHP160201812

main16471-23030i1NZFE,1NRFE..NCP16#,NSP160201409

16502FILLER SUB-ASSY, WATER

main16502-21080i1NZFE..NCP16#201409

main16502-21090i1NZFXE..NHP160201812

16520ACAP SUB-ASSY, WATER FILLER

main16401-31520i1NZFE..NCP16#201409-201608

sub16401-36020

main16401-36020i1NZFE..NCP16#..SUCD201609-202007

16522BRACKET, WATER FILLER

main16522-21010i1NZFE..NCP16#..SUCD201409-202007

16523ACUSHION, RADIATOR SUPPORT

main16523-21030i1NZ#,1NRFE..NCP16#,NHP160,NSP160201409

16535SUPPORT, RADIATOR, LOWER

main90480-22025i1NZ#,1NRFE..NCP16#,NHP160,NSP160201409

16571CHOSE, RADIATOR, NO.1

main16571-21100i1NZFXE..NHP160201812

main16571-21120i1NZFE..NCP16#201409

main16571-47080i1NRFE..NSP160201409-202406

sub16571-47130

main16571-47130i1NRFE..NSP160202407

16571DCLIP, RADIATOR HOSE, NO.1

main96136-43901i1NZ#,1NRFE..NCP16#,NHP160,NSP160201409

16572DHOSE, RADIATOR, NO.2

main16572-21071i1NZFXE..NHP160201812

main16572-21090i1NZFE..NCP16#201409

main16572-47070i1NRFE..NSP160201409

16572ECLIP, RADIATOR HOSE, NO.2

main96136-43901i1NZ#,1NRFE..NCP16#,NHP160,NSP160201409

16573BHOSE, RADIATOR, NO.3

main16573-21060i1NZFE..NCP16#201409

main16573-21100i1NZFXE..NHP160201812

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main96136-43901i1NZ#..NCP16#,NHP160201409

16711SHROUD, FAN

main16711-21110i1NZFE..NCP165..PROB201409-202008

main16711-21160i1NZFXE..NHP160201812

main16711-21200i1NZFE..NCP165202008

main16711-47050i1NRFE..NSP160201409

7403

9009904119

main90099-04119

9009905164

main90099-05164

91631B0616

main91631-B0616

9415180600

main94151-80600

26 parts on this diagram · 8 diagrams in section
