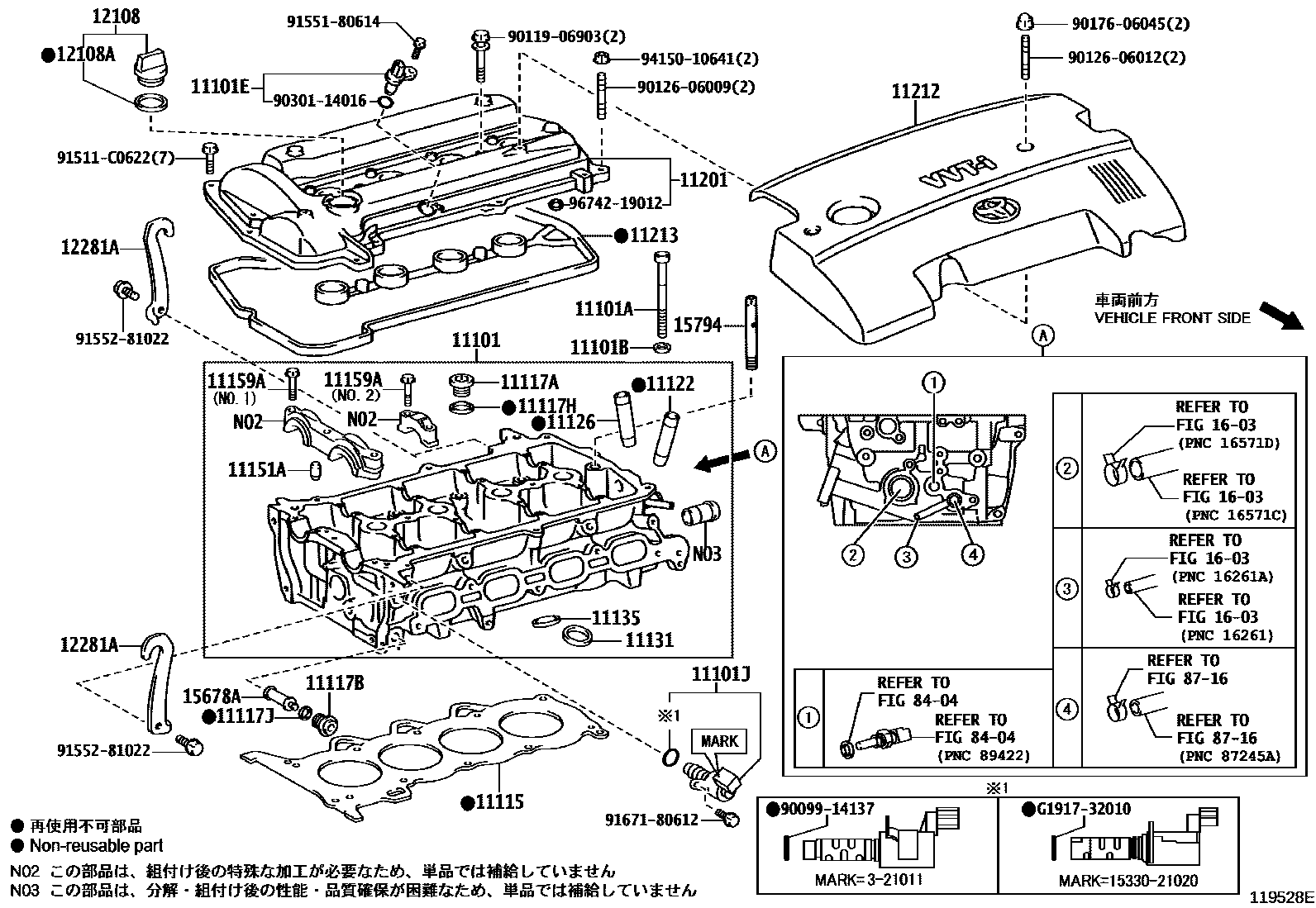

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1

11101HEAD SUB-ASSY, CYLINDER

main11101-21051i1NZFE..NCP165201409-201803

sub11101-21052

main11101-21052i1NZFE..NCP165201804

main11101-21090i1NZFE..NCP160201409-201803

sub11101-21091

main11101-21091i1NZFE..NCP160201804

main11101-21120i1NZFXE..NHP160201812

main11101-49465i1NRFE..NSP160201409-201708

sub11101-49466

main11101-49466i1NRFE..NSP160201708

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02170i1NZ#..NCP16#,NHP160201409

main90910-02174i1NRFE..NSP160201409

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024i1NZ#..NCP16#,NHP160201409

main90201-10344i1NRFE..NSP160201409

11101ESENSOR, CAM POSITION

main90919-05024i1NZ#..NCP165,NHP160201409

main90919-05060i1NZFE..NCP160201409

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-21011i1NZFE..NCP16#201409

main15330-21030i1NZFXE..NHP160201812

main15330-47010i1NRFE..NSP160201409

main15330-47020i1NRFE..NSP160201409

11115GASKET, CYLINDER HEAD

main11115-21090i1NZFE..NCP16#201409-201503

sub11115-21091

main11115-21091i1NZ#..NCP16#,NHP160201504

main11115-47050i1NRFE..NSP160201409

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-20002i1NZFXE..NHP160201812

main90341-24011i1NZFE..NCP16#201501

main90341-24013i1NZFE..NCP16#201409-201412

sub90341-24011

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-14013i1NZ#..NCP16#,NHP160201409

11117HGASKET(FOR WATER HOLE)

main90430-20004i1NZFXE..NHP160201812

main90430-24246i1NZFE..NCP16#201409

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1NZ#..NCP16#,NHP160201409

11122BUSH, INTAKE VALVE GUIDE

main11122-21010i1NZFXE..NHP160201812

main11122-31041i1NRFE..NSP160201409-201707

sub11122-47010

main11122-47020i1NRFE..NSP160201708

main11122-75020i1NZFE..NCP16#201409

main11123-21010i1NZFXE..NHP160201812

main11123-31041i1NRFE..NSP160201409-201707

sub11123-47010

main11123-47020i1NRFE..NSP160201708

main11123-75020i1NZFE..NCP16#201409

11126BUSH, EXHAUST VALVE GUIDE

main11122-21010i1NZFXE..NHP160201812

main11122-31041i1NRFE..NSP160201409-201707

sub11122-47010

main11122-47020i1NRFE..NSP160201708

main11122-75020i1NZFE..NCP16#201409

main11123-21010i1NZFXE..NHP160201812

main11123-31041i1NRFE..NSP160201409-201707

sub11123-47010

main11123-47020i1NRFE..NSP160201708

main11123-75020i1NZFE..NCP16#201409

11131SEAT, INTAKE VALVE

main11131-21020i1NZFE..NCP165201409-201703

sub11131-21021

main11131-21021i1NZFE..NCP165201704

main11131-21060i1NZFE..NCP160201409-201703

main11131-21070i1NZ#..NCP160,NHP160201704

main11131-47010i1NRFE..NSP160201409

main11132-21020i1NZFE..NCP165201409-201703

sub11132-21021

main11132-21021i1NZFE..NCP165201704

main11132-21060i1NZFE..NCP160201409-201703

sub11132-21070

main11132-21070i1NZ#..NCP160,NHP160201704

main11132-47010i1NRFE..NSP160201409

11135SEAT, EXHAUST VALVE

main11135-21020i1NZFE..NCP16#201409-202203

sub11135-21041

main11135-21040i1NZFXE..NHP160201812-202202

sub11135-21041

main11135-21041i1NZ#..NCP16#,NHP160202203

main11135-47010i1NRFE..NSP160201409

main11136-21020i1NZFE..NCP16#201409-202203

main11136-21040i1NZFXE..NHP160201812-202203

main11136-21041i1NZ#..NCP16#,NHP160202203

main11136-47010i1NRFE..NSP160201409

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90250-06001i1NZ#..NCP16#,NHP160201409

main90253-13005i1NRFE..NSP160201409

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-06360i1NRFE..NSP160201611-201705

sub91551-80635

main90105-T0347i1NRFE..NSP160201606-201610

main90109-06080i1NZ#..NCP16#,NHP160201409

main90119-08A29i1NZ#..NCP16#,NHP160201409

main91551-80635i1NRFE..NSP160201409-201606

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-21070i1NZFE..NCP165201409

main11201-21080i1NZFXE..NHP160201812

main11201-21090i1NZFE..NCP160201409

main11201-47130i1NRFE..NSP160201409

11212COVER, CYLINDER HEAD, NO.2

main11212-21040i1NZFE..NCP16#..SUCD201409-202007

11213GASKET, CYLINDER HEAD COVER

main11213-21011i1NZFXE..NHP160201812

main11213-21020i1NZFE..NCP16#201409

main11213-47020i1NRFE..NSP160201409

12108CAP SUB-ASSY, OIL FILLER

main12180-38010i1NZ#,1NRFE..NCP16#,NHP160,NSP160201409

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i1NZ#,1NRFE..NCP16#,NHP160,NSP160201409

12281AHANGER, ENGINE, NO.1

main12281-21090i1NZ#..NCP16#,NHP160201409

main12281-47023i1NRFE..NSP160201409

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1NZ#..NCP16#,NHP160201409

main15678-31020i1NRFE..NSP160201409

15794NOZZLE, CYLINDER HEAD OIL

main15794-21010i1NZFE..NCP16#..SUCD201409-202007

1603

8404

8716

9009914137

main90099-14137

9011906903

main90119-06903

9012606009

main90126-06009

9012606012

main90126-06012

9017606045

main90176-06045

9030114016

main90301-14016

91511C0622

main91511-C0622

9155180614

main91551-80614

9155281022

main91552-81022

9167180612

main91671-80612

9415010641

main94150-10641

9674219012

main96742-19012

G191732010

mainG1917-32010

40 parts on this diagram · 5 diagrams in section
