HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1����� ��� 0003 1 0004 1����� ��� 0005 1��(����) 0006 1����� ��� & ��(����)

87030BLOWER ASSY, AIR CONDITIONER

main87030-52302iNCP5#200302-201108

main87030-52303iNCP5#201108

main87030-52310supersedes 87030-52301iNCP5#200206-200302

main87030-52311iNCP50,51,55,58,59200302-201108

main87030-52312iNCP50,51,55,58,59201108

main87030-52330supersedes 87030-52322iNLP51200206-200302

main87030-52331supersedes 87030-52322iNLP51200302-200708

main87030-52340iNCP50,51,55,58,59..DX,DXJ,F,TX,U200206

main87030-52350iNCP5#..DX,DXJ,F,TX,U200206-200302

main87030-52351iNCP50,51,55,58,59..DX,DXJ,F,TX,U200302

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52100iNCP5#,NLP51200302

main87103-52010iNCP50,51,55,58,59..DX,DXJ,F,TX,U200206

main87103-52030supersedes 87103-52050iNCP5#,NLP51; NCP5#..DX,DXJ,F,TX,U200206-200302

main87103-52070supersedes 87103-52050iNCP50,51,55,58,59,NLP51; NCP50,51,55,58,59..DX,DXJ,F,TX,U200302

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52010iNCP5#,NLP51200206-201409

main87107-52050iNLP51200206-200708

87114BCOVER, HEATER

main87114-52010iNCP5#,NLP51200206-201111

main87114-52011iNCP5#201112

main87114-52020iNCP50,51,55,58,59..DX,DXJ,F,TX,U; NCP50,51,55,58,59..DX,F,GL,TX,U,UL200206-201111

main87114-52021iNCP50,51,55,58,59; NCP50,51,55,58,59..DX,F,TX,U201112

87138CRESISTOR, BLOWER

main87138-52010iNCP5#,NLP51200206

87139CFILTER, CLEAN AIR

main87139-12010iNCP5#..DX,F,GL,TX,U,UL200206

main87139-44010iNCP5#..DX,F,GL,TX,U,UL200206

87150BRADIATOR ASSY, HEATER

main87150-52010iNCP5#200206

main87150-52030iNCP50,51,55,58,59; NCP50,51,55,58,59..DX,DXJ,F,TX,U200206

main87150-52230supersedes 87150-52220iNLP51200206-200708

main87150-52320iNCP52200304

87220BDUCT ASSY, AIR

main87220-52010iNCP5#,NLP51200206

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52030iNLP51200206-200302

main88501-52070iNCP5#200212

main88501-52010iNCP5#,NLP51200206-200302

88515VALVE, COOLER EXPANSION

main88515-52020iNCP5#200206-200312

main88515-52040iNCP5#200312-201108

main88515-52080iNCP5#201108-201409

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-52010iNCP5#,NLP51200302

88548BCASE, AIR FILTER

main88548-52010iNCP5#,NLP51200206

88625THERMISTOR, COOLER, NO.1

main88625-52090iNCP5#,NLP51200302

main88625-60140iNCP5#,NLP51200206-200302

88648WIRING, COOLER, NO.1

main88648-52120iNCP5#,NLP51200302

main88648-52020iNCP50,51,55,58,59,NLP51; NCP50,51,55,58,59..DX,DXJ,F,TX,U200302

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

9009900318

main90099-00318

9009914120

main90099-14120

9009914121

main90099-14121

9017906314

main90179-06314

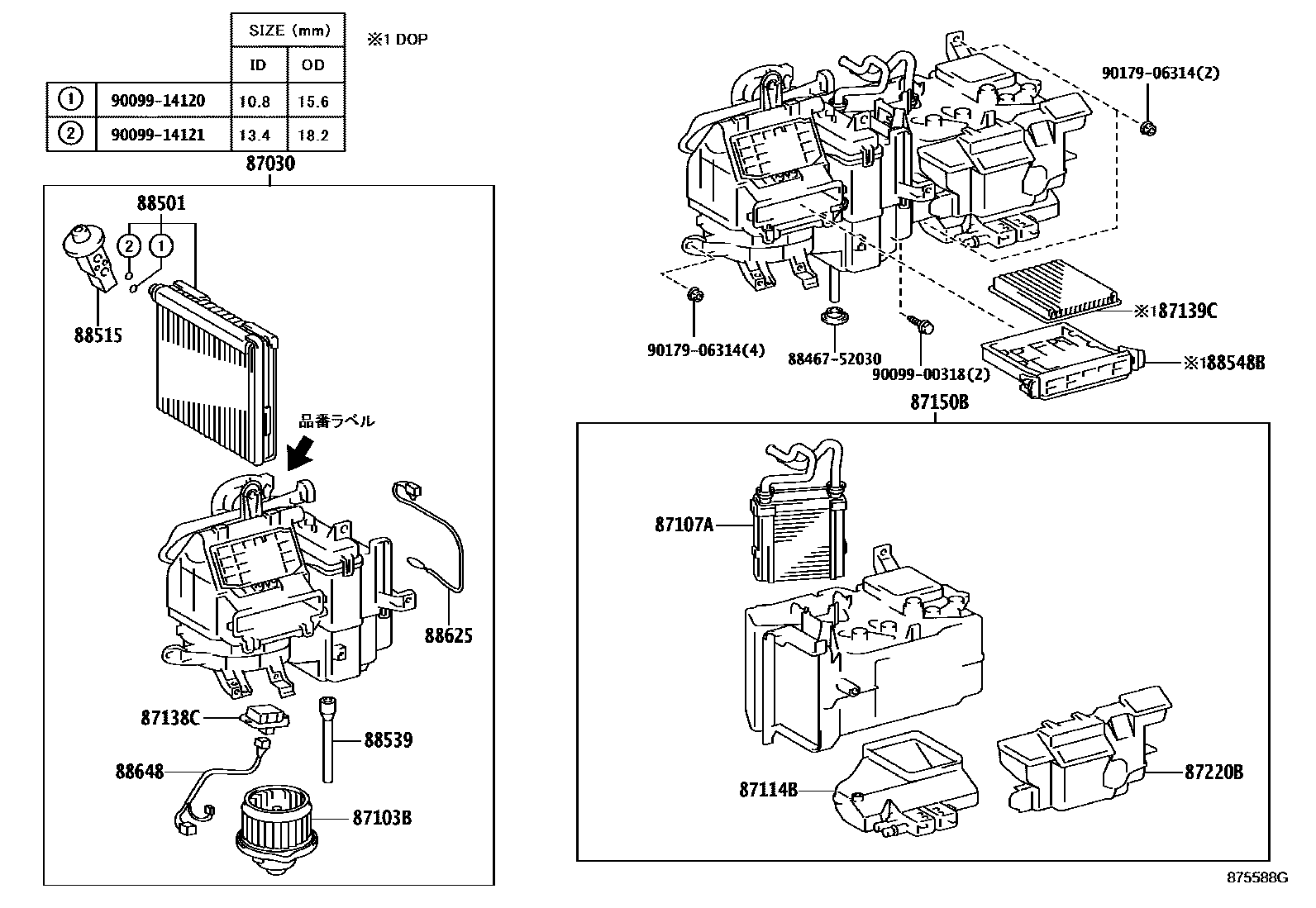

19 parts on this diagram · 6 diagrams in section
