BATTERY CARRIER

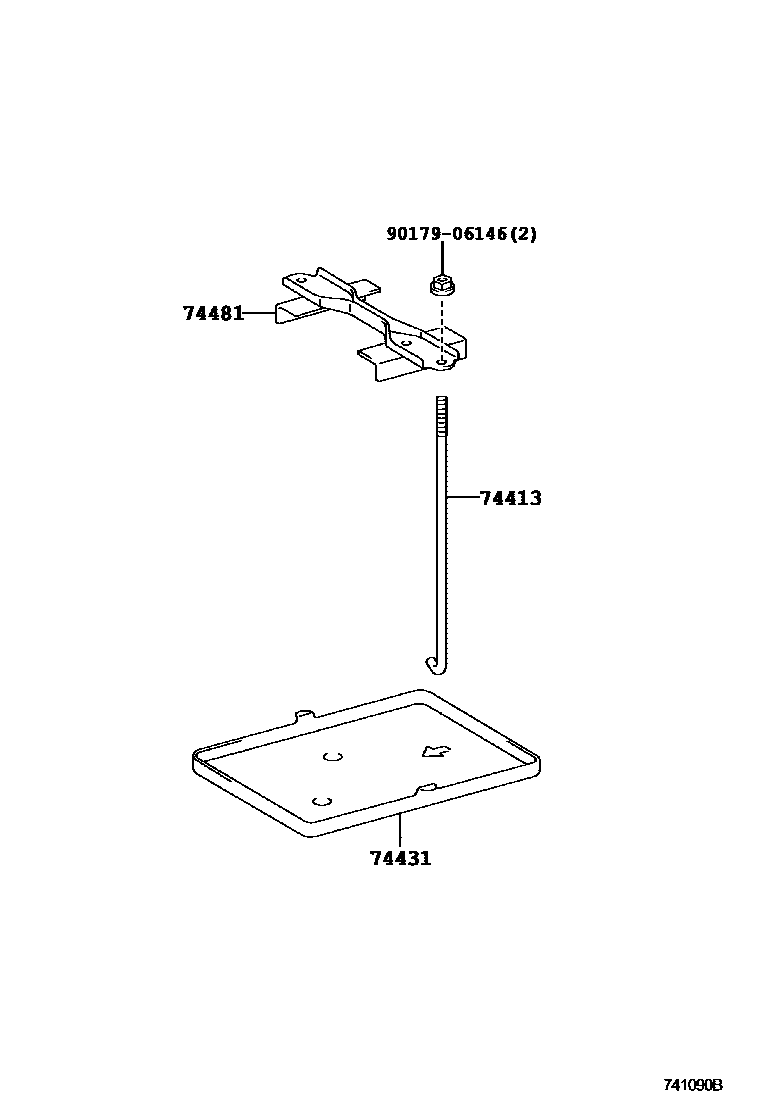

Parts diagram

74413BOLT, BATTERY CLAMP

main74451-16010i201012

main74451-16030i200206-201011

74431TRAY, BATTERY

main74431-52010i200206

main74431-52020i200206

74481CLAMP, BATTERY HOLD DOWN

main74404-42030i200206

main74404-52020i200206

9017906146

main90179-06146

4 parts on this diagram · 1 diagram in section
