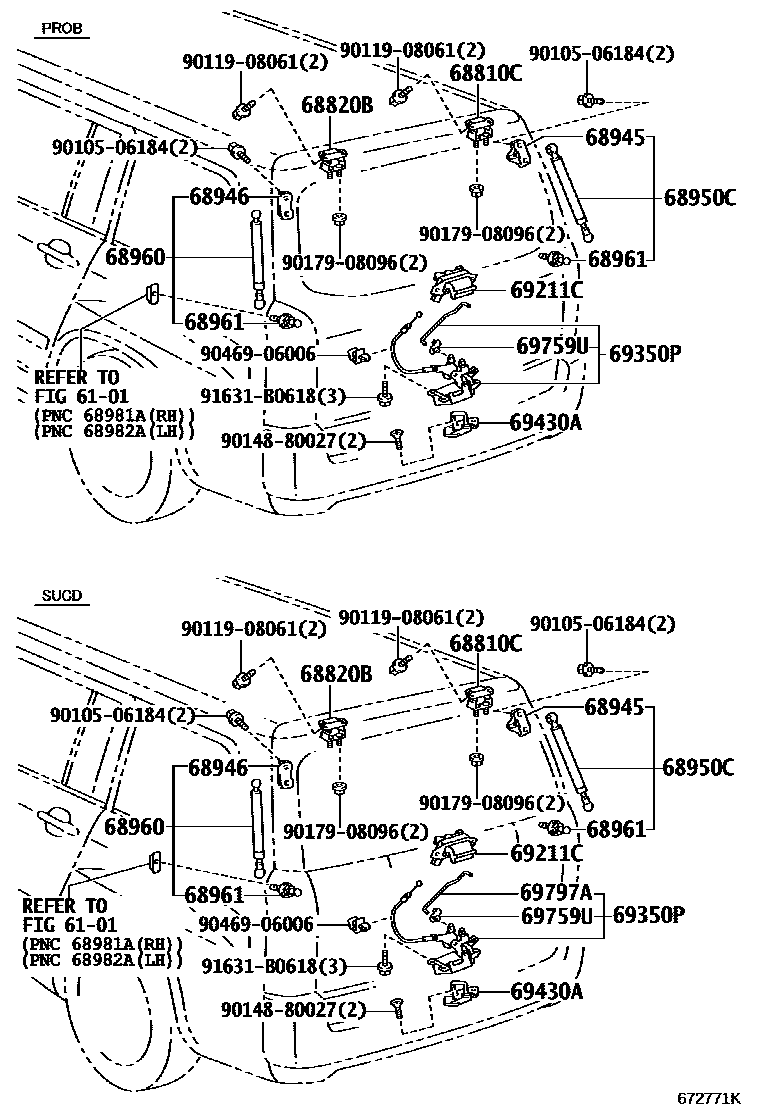

BACK DOOR LOCK & HANDLE

6101

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iNCP5#,NLP51200206-201409

68820BHINGE ASSY, BACK DOOR, LH

main68810-21050iNCP5#,NLP51200206-201409

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52030iNCP5#,NLP51200206

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-52030iNCP5#,NLP51200206

68950CSTAY ASSY, BACK DOOR, RH

main68950-59105iNCP51,55,58,59,NLP51..SUCD200206-201001

main68950-59106iNCP51,55,58,59..SUCD201001

main68950-59115iNCP5#,NLP51..PROB200206-201001

main68950-59116iNCP5#..PROB201001

68960STAY ASSY, BACK DOOR, LH

main68960-59075iNCP51,55,58,59,NLP51..SUCD200206-201001

main68960-59076iNCP51,55,58,59..SUCD201001

main68960-59085iNCP5#,NLP51..PROB200206-201001

main68960-59086iNCP5#..PROB201001

68961BOLT, BACK DOOR STAY

main68961-30020iNCP5#,NLP51200206

69211CHANDLE, BACK DOOR OUTSIDE

main69023-13020iNCP5#,NLP51200206

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52120iNCP50,55,NLP51..DXJ200206-200305

main69350-52130iNCP5#,NLP51..DX,F,GL200206-201409

main69350-52150iNCP51,55,58,59,NLP51..SUCD200206-200208

sub69350-52151

main69350-52151iNCP51,55,58,59,NLP51..SUCD200208-201409

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-52020iNCP5#,NLP51200206

69759USNAP, BACK DOOR LOCK CONTROL LINK

main69759-20200iNCP5#,NLP51..PROB200206

69797ALINK, BACK DOOR CYLINDER TO LOCK CONTROL

main69797-52020iNCP51,55,58,59,NLP51..SUCD200208

9010506184

main90105-06184

9011908061

main90119-08061

9014880027

main90148-80027

9017908096

main90179-08096

9046906006

main90469-06006

91631B0618

main91631-B0618

19 parts on this diagram · 1 diagram in section
