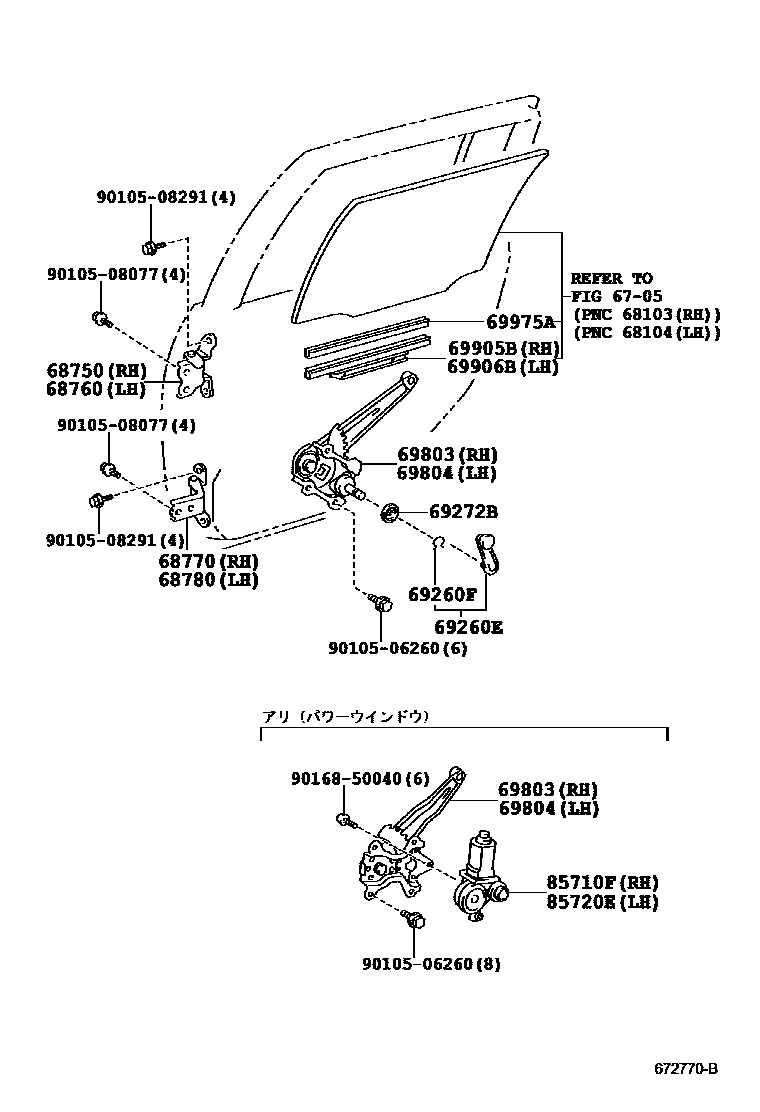

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20120iNCP5#,NLP51200206-200609

main68750-20121iNCP5#,NLP51200610-201206

main68750-20122iNCP5#201206-201409

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20120iNCP5#,NLP51200206-200609

main68760-20121iNCP5#,NLP51200610-201206

main68760-20122iNCP5#201206-201409

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52030iNCP5#,NLP51200206-200609

main68770-52031iNCP5#,NLP51200610-201409

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52030iNCP5#,NLP51200206-200609

main68780-52031iNCP5#,NLP51200610-201409

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-22030-B6×2iNCP5#,NLP51; NCP51,55,NLP51..UL; NCP58,59..F; NCP58,59..TX200206-200508

main69260-52070-B0×2iNCP5#,NLP51; NCP51,55,NLP51..UL200509-201409

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iNCP50,51,55,58,59,NLP51..DX,DXJ,F,U; NCP50,51,55,58,59,NLP51..DX,F,U; NCP50,51,55,NLP51..DX,GL; NCP51,55,NLP51..UL; NCP52;NCP50,51,55,58,59,NLP51..GL,TX,UL200206

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010×2iNCP5#,NLP51; NCP51,55,NLP51..UL200206

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-52130iNCP5#,NLP51200206-200311

main69830-52160iNCP5#,NLP51200311

main69803-13020iNCP51,55,NLP51..UL200206

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-52130iNCP5#,NLP51200206-200311

main69840-52160iNCP5#,NLP51200311

main69804-13020iNCP58,59..F; NCP58,59..TX200206-201310

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52020iNCP5#,NLP51200206

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52010iNCP5#,NLP51200206

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iNCP5#,NLP51200206

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-12250iNCP51,55,NLP51..UL; NCP58,59..F; NCP58,59..TX200206-201111

main85720-52200iNCP58,59..F; NCP58,59..TX201111-201310

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-12250iNCP51,55,NLP51..UL; NCP58,59..F; NCP58,59..TX200206-201111

main85710-52220iNCP58,59..F; NCP58,59..TX201111-201310

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9016850040

main90168-50040

19 parts on this diagram · 1 diagram in section
