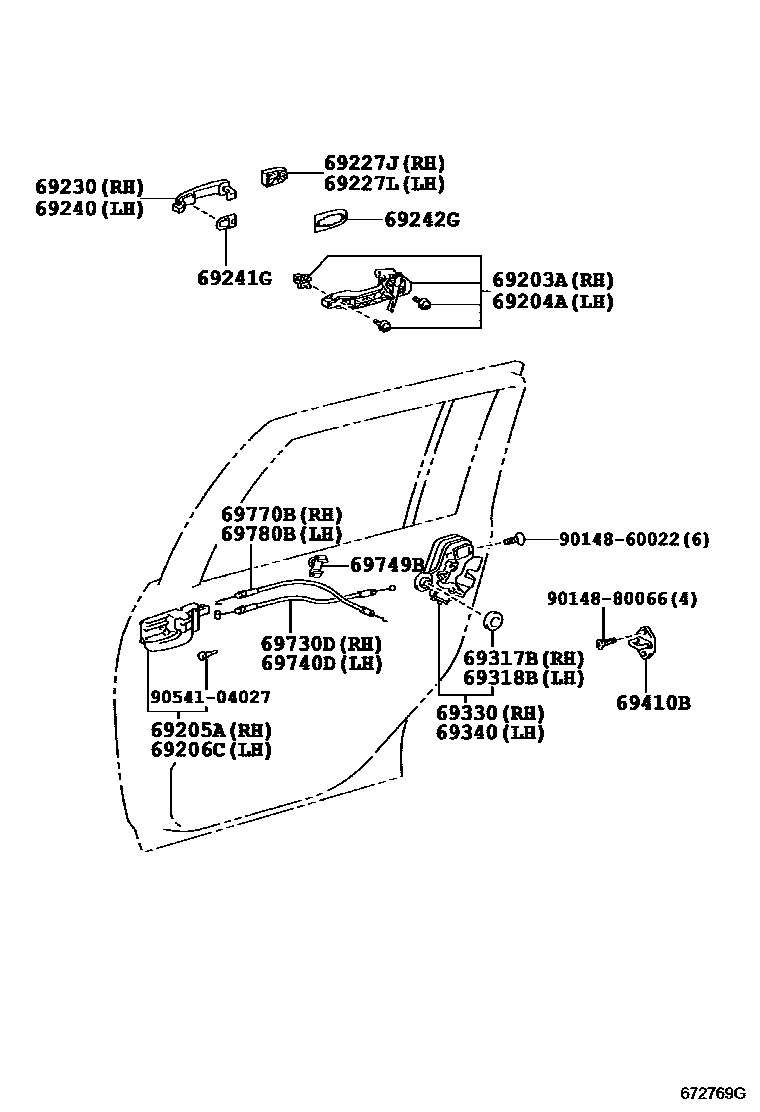

REAR DOOR LOCK & HANDLE

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-52010iNCP5#,NLP51200206

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-52010iNCP5#,NLP51200206

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-12200-B1iNCP5#,NLP51200206-201409

DK.GRAY,TRIM1#

sub69205-12200

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-12200-B1iNCP5#,NLP51200206-201409

DK.GRAY,TRIM1#

sub69206-12200

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-42060iNCP50,51,55..GL200206-201409

main69227-42070-A9iNCP50,51,55..GL201006-201409

WHITE,058

sub69227-42070

main69227-42070-A9iNCP50,51,55..GL201006-201409

sub69227-42070

main69227-42070-B2iNCP50,51,55..GL201006-201409

SILVER ME.,199

sub69227-42070

main69227-42070-B2iNCP50,51,55..GL201006-201409

sub69227-42070

main69227-42070-F0iNCP50,51,55..GL201006-201409

CHAMPAGNE ME.,586

sub69227-42070

main69227-42070-F0iNCP50,51,55..GL201006-201409

sub69227-42070

main69227-42070-J2iNCP50,51,55..GL201006-201409

DK.BLUE M.M.,8P4

sub69227-42070

main69227-42070-J2iNCP50,51,55..GL201006-201409

sub69227-42070

main69227-42070-L9iNCP50,51,55..GL201006-201409

BEIGE ME.,4T8

sub69227-42070

main69227-42070-L9iNCP50,51,55..GL201006-201409

sub69227-42070

main69227-42070-L9iNCP50,51,55..GL201006-201409

sub69227-42070

main69227-42070-P0iNCP50,51,55..GL201006-201409

SILVER M.M.,1E7

sub69227-42070

main69227-42070-P0iNCP50,51,55..GL201006-201409

sub69227-42070

main69227-42070-P0iNCP50,51,55..GL201006-201409

sub69227-42070

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-42060iNCP50,51,55..GL200206-201409

main69227-42070-A9iNCP50,51,55..GL201006-201409

WHITE,058

sub69227-42070

main69227-42070-A9iNCP50,51,55..GL201006-201409

sub69227-42070

main69227-42070-B2iNCP50,51,52,55..DX201006-201409

sub69227-42070

main69227-42070-B2iNCP50,51,52,55..DX201006-201409

SILVER ME.,199

sub69227-42070

main69227-42070-F0iNCP50,51,52,55..DX201006-201409

sub69227-42070

main69227-42070-F0iNCP50,51,55..GL201006-201409

CHAMPAGNE ME.,586

sub69227-42070

main69227-42070-J2iNCP50,51,55..GL201006-201409

DK.BLUE M.M.,8P4

sub69227-42070

main69227-42070-J2iNCP50,51,55..GL201006-201409

sub69227-42070

main69227-42070-L9iNCP50,51,52,55..DX201006-201409

sub69227-42070

main69227-42070-L9iNCP50,51,55..GL201006-201409

BEIGE ME.,4T8

sub69227-42070

main69227-42070-L9iNCP50,51,55..GL201006-201409

sub69227-42070

main69227-42070-P0iNCP50,51,55..GL201006-201409

SILVER M.M.,1E7

sub69227-42070

main69227-42070-P0iNCP50,51,55..GL201006-201409

sub69227-42070

main69227-42070-P0iNCP50,51,55..GL201006-201409

sub69227-42070

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-12220-A9iNCP50,51,52,55..DX201006-201409

WHITE,058

sub69211-12220

sub69211-52090

main69211-12220-A9iNCP50,51,52,55..DX201006-201409

sub69211-12220

sub69211-52090

main69211-12220-B0iNCP50,51,55..GL201006-201409

sub69211-12220

sub69211-52090

main69211-12220-B0iNCP50,51,55..GL201006-201409

SILVER ME.,199

sub69211-12220

sub69211-52090

main69211-12220-F0iNCP50,51,55..GL201006-201409

CHAMPAGNE ME.,586

sub69211-12220

sub69211-52090

main69211-12220-F0iNCP50,51,55..GL201006-201409

sub69211-12220

sub69211-52090

main69211-12220-J0iNCP50,51,52,55..DX201006-201409

sub69211-12220

sub69211-52090

main69211-12220-J0iNCP50,51,55..GL201006-201409

DK.BLUE M.M.,8P4

sub69211-12220

sub69211-52090

main69211-12220-L9iNCP50,51,55..GL201006-201409

sub69211-12220

sub69211-52090

main69211-12220-L9iNCP51,55,58,59..TX,UL201006-201409

BEIGE ME.,4T8

sub69211-12220

sub69211-52090

main69211-12220-L9iNCP51,55,58,59..TX,UL201006-201409

sub69211-12220

sub69211-52090

main69211-12220-P0iNCP50,51,52,55..DX201006-201409

sub69211-12220

sub69211-52090

main69211-12220-P0iNCP50,51,52,55..DX201006-201409

SILVER M.M.,1E7

sub69211-12220

sub69211-52090

main69211-12220-P0iNCP50,51,52,55..DX201006-201409

sub69211-12220

sub69211-52090

main69211-42010iNCP50,51,55..GL200206-201409

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-12220-A9iNCP50,51,55..GL201006-201409

sub69211-12220

sub69211-52090

main69211-12220-A9iNCP50,51,55..GL201006-201409

WHITE,058

sub69211-12220

sub69211-52090

main69211-12220-B0iNCP50,51,55..GL201006-201409

sub69211-12220

sub69211-52090

main69211-12220-B0iNCP50,51,55..GL201006-201409

SILVER ME.,199

sub69211-12220

sub69211-52090

main69211-12220-F0iNCP50,51,55..GL201006-201409

sub69211-12220

sub69211-52090

main69211-12220-F0iNCP50,51,55..GL201006-201409

CHAMPAGNE ME.,586

sub69211-12220

sub69211-52090

main69211-12220-J0iNCP50,51,55..GL201006-201409

sub69211-12220

sub69211-52090

main69211-12220-J0iNCP50,51,55..GL201006-201409

DK.BLUE M.M.,8P4

sub69211-12220

sub69211-52090

main69211-12220-L9iNCP50,51,55..GL201006-201409

BEIGE ME.,4T8

sub69211-12220

sub69211-52090

main69211-12220-L9iNCP50,51,55..GL201006-201409

sub69211-12220

sub69211-52090

main69211-12220-L9iNCP50,51,55..GL201006-201409

sub69211-12220

sub69211-52090

main69211-12220-P0iNCP50,51,52,55..DX201006-201409

sub69211-12220

sub69211-52090

main69211-12220-P0iNCP50,51,52,55..DX201006-201409

sub69211-12220

sub69211-52090

main69211-12220-P0iNCP50,51,55..GL201006-201409

SILVER M.M.,1E7

sub69211-12220

sub69211-52090

main69211-42010iNCP50,51,55..GL200206-201409

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-48020iNCP5#,NLP51200206

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-42010iNCP5#,NLP51200206-200710

main69242-52020iNCP5#200711

69317BSEAL, REAR DOOR LOCK HOLE, RH

main69318-51010iNCP5#,NLP51200206

69318BSEAL, REAR DOOR LOCK HOLE, LH

main69318-51010iNCP5#,NLP51200206

69330LOCK ASSY, REAR DOOR, RH

main69050-52120iNCP50,51,55,58,59,NLP51..DX,F,U200206

main69050-52120iNCP52;NCP50,51,55,58,59,NLP51..GL,TX,UL200206

main69330-52140iNCP50,51,55,58,59,NLP51..DX,DXJ,F,U200206

69340LOCK ASSY, REAR DOOR, LH

main69060-52120iNCP52;NCP50,51,55,58,59,NLP51..GL,TX,UL200206

main69060-52120iNCP52;NCP50,51,55,58,59,NLP51..GL,TX,UL200206

main69340-52150iNCP50,51,55,58,59,NLP51..DX,DXJ,F,U200206

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20110iNCP5#,NLP51200206

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-52060iNCP5#,NLP51200206

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-52060iNCP5#,NLP51200206

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32040iNCP5#,NLP51200206

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-52010iNCP5#,NLP51200206

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-52030iNCP5#,NLP51200206

9014860022

main90148-60022

9014880066

main90148-80066

9054104027

main90541-04027

23 parts on this diagram · 1 diagram in section
