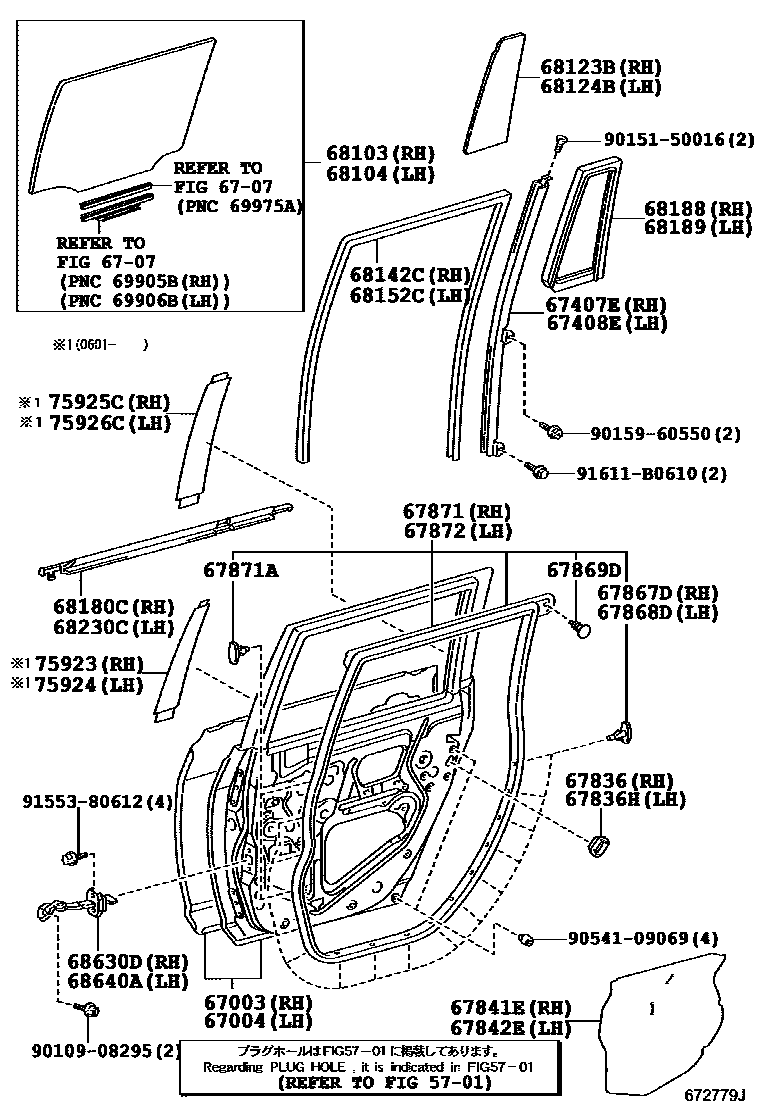

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-52110iNCP50,51,55,NLP51..DX,DXJ,U200206-201111

main67003-52140supersedes 67003-52130iNCP50,51,55,NLP51..DX; NCP50,51,55,NLP51..DX,U; NCP50,51,55,NLP51..GL; NCP51,55,58,59,NLP51..TX,UL; NCP52;NCP50,51,55,NLP51..GL; NCP58,59..F200206-201111

main67003-52141supersedes 67003-52121iNCP50,51,55..DX; NCP50,51,55..DX,U; NCP50,51,55..GL; NCP51,55,58,59..TX,UL; NCP52;NCP50,51,55..GL201111-201409

main67003-52120iNCP50,51,55,NLP51..DX; NCP50,51,55,NLP51..DX,U; NCP52;NCP50,51,55,NLP51..GL200206-201111

main67003-52121supersedes 67003-52111iNCP50,51,55..DX; NCP50,51,55..DX,U; NCP52;NCP50,51,55..GL201111-201409

main67003-52130iNCP50,51,55,NLP51..DX,U; NCP58,59..F200206-201111

main67003-52131supersedes 67003-52111iNCP50,51,55..DX,U201111-201409

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-52120iNCP50,51,55,NLP51..DX,DXJ,U200206-201111

main67004-52150supersedes 67004-52140iNCP50,51,55,NLP51..DX; NCP50,51,55,NLP51..DX,U; NCP50,51,55,NLP51..GL; NCP51,55,58,59,NLP51..TX,UL; NCP52;NCP50,51,55,NLP51..GL; NCP58,59..F200206-201111

main67004-52151supersedes 67004-52141iNCP50,51,55..DX; NCP50,51,55..DX,U; NCP50,51,55..GL; NCP51,55,58,59..TX,UL; NCP52;NCP50,51,55..GL201111-201409

main67004-52130iNCP50,51,55,NLP51..DX; NCP50,51,55,NLP51..DX,U; NCP52;NCP50,51,55,NLP51..GL200206-201111

main67004-52131iNCP50,51,55..DX; NCP50,51,55..DX,U; NCP52;NCP50,51,55..GL201111-201409

main67004-52140iNCP50,51,55,NLP51..DX,U; NCP58,59..F200206-201111

main67004-52141supersedes 67004-52121iNCP50,51,55..DX,U201111-201409

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-52060iNCP5#,NLP51200206

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-52060iNCP5#,NLP51200206

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040iNCP5#,NLP51200206

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-12040iNCP5#,NLP51200206

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-52090iNCP5#,NLP51200206

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-52090iNCP5#,NLP51200206

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×14iNCP5#,NLP51200206

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×14iNCP5#,NLP51200206

67869DCLIP, DOOR WEATHERSTRIP

main90467-05159×2iNCP5#,NLP51200206

67871WEATHERSTRIP, REAR DOOR, RH

main67871-52070iNCP5#,NLP51200206

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-32060×4iNCP5#,NLP51200206

67872WEATHERSTRIP, REAR DOOR, LH

main67872-52080iNCP5#,NLP51200206

68103GLASS SUB-ASSY, REAR DOOR, RH

main68130-52140iNCP5#,NLP51200206-200508

main68130-52150iNCP50,51,55..GL201006-201409

main68130-52290iNLP51;NCP5#..DX,F,TX,U,UL200508-201409

68104GLASS SUB-ASSY, REAR DOOR, LH

main68140-52140iNCP5#,NLP51200206-200508

main68140-52150iNCP50,51,55..GL201006-201409

main68140-52290iNLP51;NCP5#..DX,F,TX,U,UL200508-201409

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-52080iNCP5#,NLP51200206-200508

main68123-52090iNCP50,51,55..GL201006

main68123-52160iNLP51;NCP5#..DX,F,TX,U,UL200508

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-52080iNCP5#,NLP51200206-200508

main68124-52090iNCP50,51,55..GL201006

main68124-52160iNLP51;NCP5#..DX,F,TX,U,UL200508

68142CRUN, REAR DOOR GLASS, RH

main68142-52090iNCP5#,NLP51200206

68152CRUN, REAR DOOR GLASS, LH

main68152-52090iNCP5#,NLP51200206

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-52060iNCP5#,NLP51200206-200512

main68180-52061iNCP5#,NLP51200601

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-52050iNCP5#,NLP51200206

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-52050iNCP5#,NLP51200206

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-52060iNCP5#,NLP51200206-200512

main68230-52061iNCP5#,NLP51200601

68630DCHECK ASSY, REAR DOOR, RH

main68630-12070iNCP5#,NLP51200206-200407

main68630-12071iNCP5#,NLP51200407-201111

main68630-52150iNCP5#201111-201409

68640ACHECK ASSY, REAR DOOR, LH

main68640-12040iNCP5#,NLP51200206-200407

main68640-12041iNCP5#,NLP51200407-201111

main68640-52110iNCP5#201111-201409

75923TAPE, BLACK OUT, NO.2 RH

main75923-52090iNCP50,51,55,58,59,NLP51..GL,TX,U,UL; NCP58,59..F200601-201205

main75923-52090-C0iNCP58,59..F; NCP58,59..TX201205-201310

75924TAPE, BLACK OUT, NO.2 LH

main75924-52090iNCP50,51,55,58,59,NLP51..GL,TX,U,UL; NCP58,59..F200601-201205

main75924-52090-C0iNCP58,59..F; NCP58,59..TX201205-201310

75925CTAPE, BLACK OUT, NO.3 RH

main75925-52090iNCP50,51,55,58,59,NLP51..GL,TX,U,UL; NCP58,59..F200601-201205

main75925-52090-C0iNCP58,59..F; NCP58,59..TX201205-201310

75926CTAPE, BLACK OUT, NO.3 LH

main75926-52090iNCP50,51,55,58,59,NLP51..GL,TX,U,UL; NCP58,59..F200601-201205

main75926-52090-C0iNCP58,59..F; NCP58,59..TX201205-201310

9010908295

main90109-08295

9015150016

main90151-50016

9015960550

main90159-60550

9054109069

main90541-09069

9155380612

main91553-80612

91611B0610

main91611-B0610

37 parts on this diagram · 2 diagrams in section
