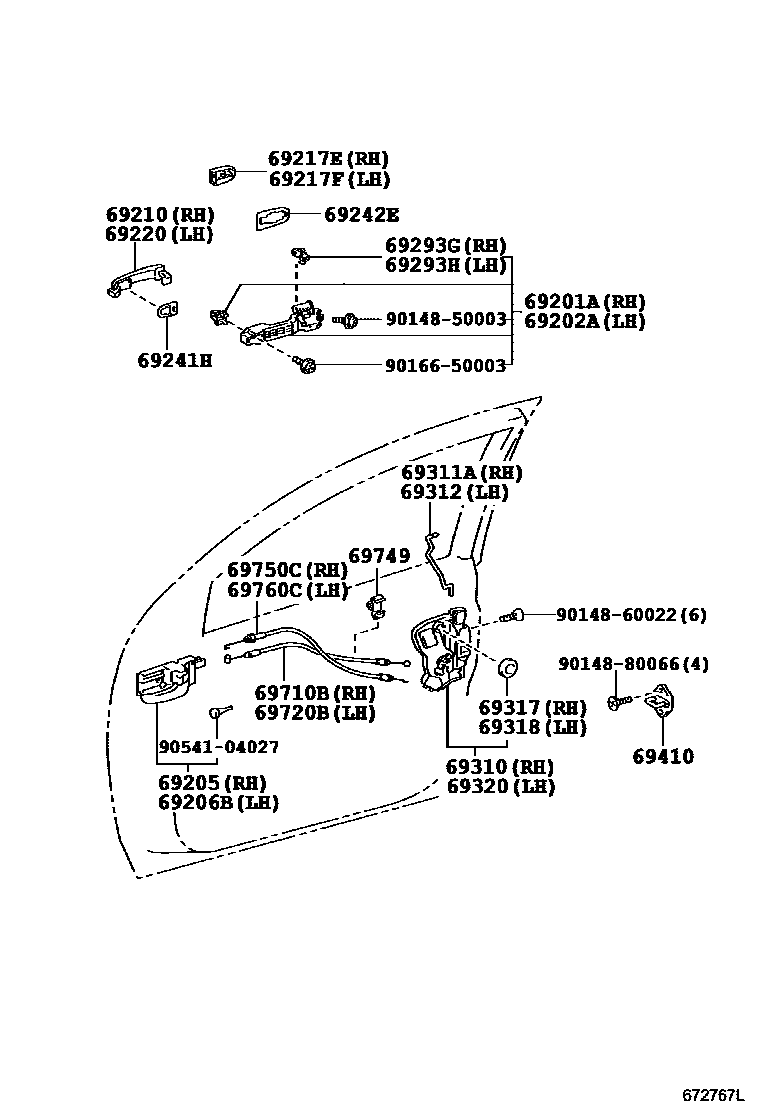

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69317SEAL, FRONT DOOR LOCK HOLE, RH
69318SEAL, FRONT DOOR LOCK HOLE, LH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016650003
main90166-50003
9054104027
main90541-04027
29 parts on this diagram · 1 diagram in section
