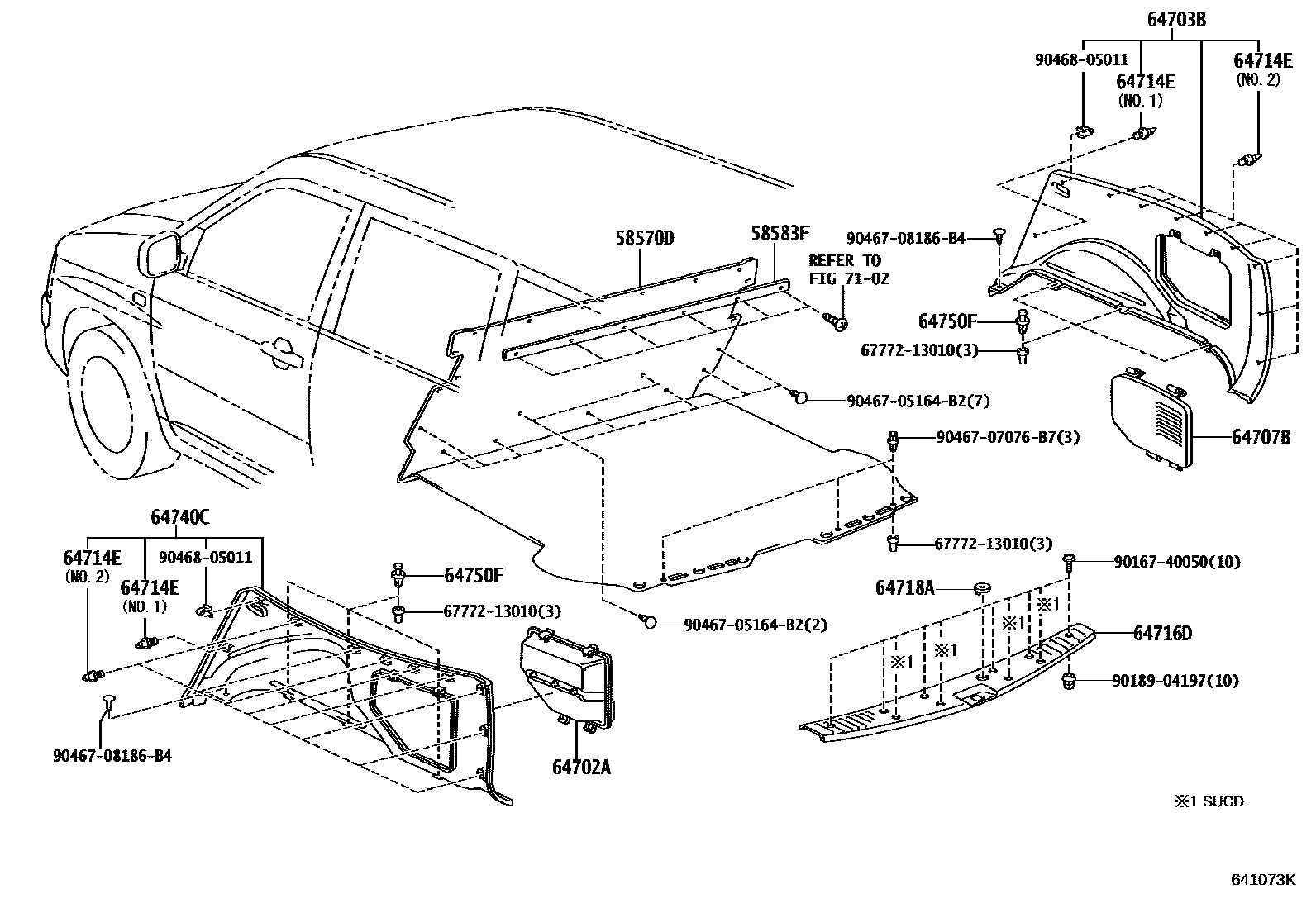

DECK BOARD & DECK TRIM COVER

58570DCARPET ASSY, REAR FLOOR

main58570-52100-B0iNCP51..U;NCP55..4FC..U200206-201409

main58570-52100-B0iNCP51..U;NCP55..4FC..U200206-201409

main58570-52100-B0iNCP51,55,NLP51..U200206-201409

main58570-52100-B0iNCP51,55,NLP51..U200206-201409

main58570-52110-B0iNCP51..DX200206-201409

main58570-52110-B0iNCP51..DX200206-201409

main58570-52110-B0iNCP51..DX200206-201409

main58570-52110-B0iNCP51..DX200206-201409

main58570-52110-B0iNCP51..DX200206-201409

main58570-52120-B0iNCP58,59200206-201205

main58570-52121-B0iNCP58,59201205-201310

main58570-52130-B1iNCP51,55,NLP51..UL200206-201409

main58570-52310-B0iNCP52201006-201409

main58581-52030-B0iNCP50,51,NLP51..PROB200206-201006

main58581-52030-B0iNCP51..DX200206-201006

main58581-52030-B0iNCP51..DX200206-201006

main58581-52030-B0iNCP51..DX200206-201006

main58581-52030-B0iNCP51..DX200206-201006

main58581-52040-B0iNCP52200304-201006

58583FPLATE, REAR SEATBACK CARPET SUPPORT

main58583-52010iNCP5#,NLP51200206

64702ACOVER SUB-ASSY, DECK TRIM SIDE SERVICE HOLE

main64702-52020-B0iNCP5#,NLP51200206-201409

DK.GRAY,TRIM1#

64703BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52080-B0iNCP5#,NLP51..DX,DXJ,F,GL,U200206-201409

DK.GRAY,TRIM1#

sub64730-52080

main64730-52100-B0iNCP51,55,58,59,NLP51..TX,UL200206-201409

DK.GRAY,TRIM1#

64707BCOVER SUB-ASSY, QUARTER TRIM JACK

main64707-52010-B0iNCP5#,NLP51200206-201409

DK.GRAY,TRIM1#

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-10161iNCP5#,NLP51200206

main90467-10167iNCP5#,NLP51200206

64716DCOVER, DECK TRIM, REAR

main64716-52040-B0iNCP5#,NLP51..PROB200206-201409

DK.GRAY,TRIM1#

main64716-52070-B0iNCP51,55,58,59,NLP51..SUCD200206-201409

DK.GRAY,TRIM1#

64718ACOVER, DECK TRIM SERVICE HOLE

main64718-52010-B0iNCP51,55,58,59,NLP51..SUCD200206-201409

DK.GRAY,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-52080-B0iNCP5#,NLP51..DX,DXJ,F,GL,U200206-201409

DK.GRAY,TRIM1#

sub64740-52080

main64740-52100-B0iNCP51,55,58,59,NLP51..TX,UL200206-201409

DK.GRAY,TRIM1#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-07076-B7iNCP5#,NLP51200206-201409

DK.GRAY,TRIM1#

sub90467-07041

sub90467-07076

sub90467-A0016

7102

6777213010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-13010

9016740050

main90167-40050

9018904197

main90189-04197

9046705164B2

main90467-05164B2

9046707076B7

main90467-07076B7

9046708186B4

main90467-08186B4

9046805011

main90468-05011

18 parts on this diagram · 1 diagram in section
