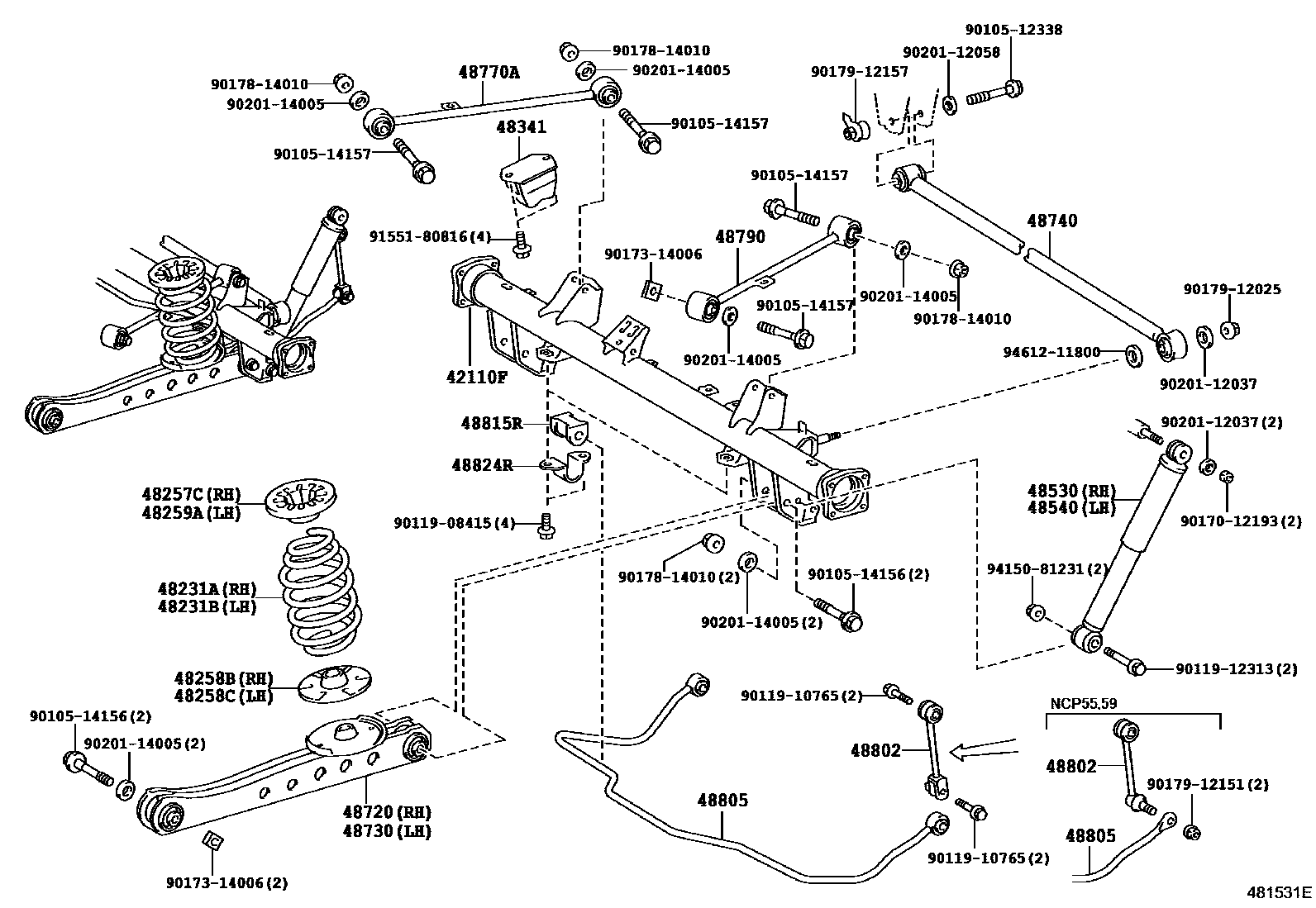

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-52200iNCP50,51,52,58,NLP51200206

48231ASPRING, COIL, REAR RH

main48231-52450iNCP50,51,NLP51..PROB200206

main48231-52460iNCP52;NCP51,NLP51..SUCD200206

main48231-52470iNCP55200206

main48231-52530iNCP58200206-201310

main48231-52540iNCP59200206-201310

48231BSPRING, COIL, REAR LH

main48231-52450iNCP50,51,NLP51..PROB200206

main48231-52460iNCP52;NCP51,NLP51..SUCD200206

main48231-52470iNCP55200206

main48231-52530iNCP58200206-201310

main48231-52540iNCP59200206-201310

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52030iNCP5#,NLP51200206

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-52020iNCP5#,NLP51200206

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-52020iNCP5#,NLP51200206

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52030iNCP5#,NLP51200206

48341BUMPER, REAR SPRING

main48341-52050iNCP50,51,52,58,NLP51200206

main48341-52060iNCP55,59200206

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-52440iNLP51..DX,GL,U,UL200206-200406

main48530-52450iNCP55,59200206

main48530-52B50iNLP51200406-200708

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-52440iNLP51..DX,GL,U,UL200206-200406

main48530-52450iNCP55,59200206

main48530-52B50iNLP51200406-200708

48720ARM ASSY, LOWER CONTROL, RH

main48720-52030iNCP55;NCP50,51,52,58,59,NLP51..DX,DXJ,F,GL,TX200206

main48720-52040iNCP51,NLP51..SUCD200206

48730ARM ASSY, LOWER CONTROL, LH

main48720-52030iNCP55;NCP50,51,52,58,59,NLP51..DX,DXJ,F,GL,TX200206

main48720-52040iNCP51,NLP51..SUCD200206

48740ROD ASSY, REAR LATERAL CONTROL

main48740-52030iNCP50,51,52,58,NLP51200206

main48740-52040iNCP55,59200206

48770AARM ASSY, UPPER CONTROL, REAR RH

main48710-52040iNCP50,51,52,58,NLP51200206

main48710-52050iNCP55,59200206

48790ARM ASSY, UPPER CONTROL, REAR LH

main48710-52040iNCP50,51,52,58,NLP51200206

main48710-52050iNCP55,59200206

48802LINK SUB-ASSY, STABILIZER

main48802-52030iNCP50,51,52,58,NLP51200206

main48802-52050iNCP55,59200206

48805BAR SUB-ASSY, REAR STABILIZER

main48805-52040iNCP50,51,52,58,NLP51200206

main48812-52070iNCP55,59200206

48815RBUSH, STABILIZER(FOR REAR)

main48815-52060iNCP5#,NLP51200206

48824RBRACKET, STABILIZER(FOR REAR)

main48824-28170iNCP5#,NLP51200206

9010512338

main90105-12338

9010514156

main90105-14156

9010514157

main90105-14157

9011908415

main90119-08415

9011910765

main90119-10765

9011912313

main90119-12313

9017012193

main90170-12193

9017314006

main90173-14006

9017814010

main90178-14010

9017912025

main90179-12025

9017912151

main90179-12151

9017912157

main90179-12157

9020112037

main90201-12037

9020112058

main90201-12058

9020114005

main90201-14005

9155180816

main91551-80816

9415081231

main94150-81231

9461211800

main94612-11800

37 parts on this diagram · 1 diagram in section
