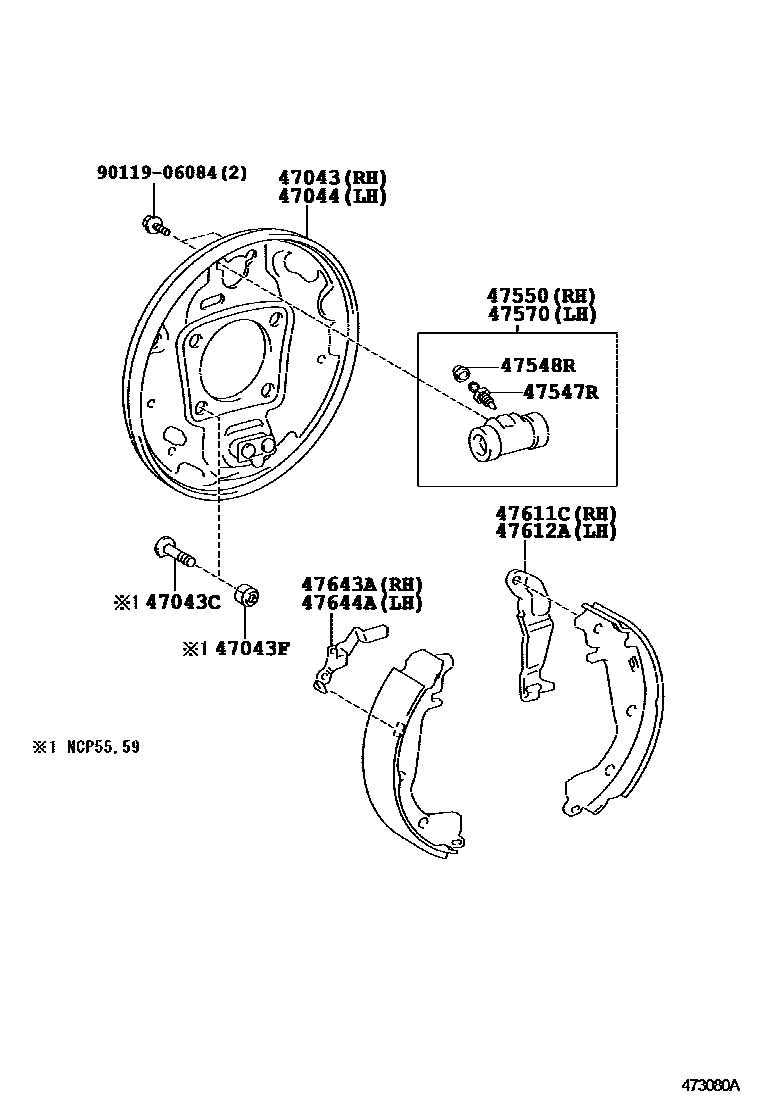

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52040iNCP50,55,NLP51..DXJ200206-200304

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-12020×8iNCP55,59200206

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94184-01001×8iNCP55,59200206

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52040iNCP50,55,NLP51..DXJ200206-200304

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-26010×2iNCP50,55,NLP51..DXJ200206-200304

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iNCP5#,NLP51..DX,F,GL,TX,U,UL200206-201409

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-63010iNCP5#,NLP51..DX,F,GL,TX,U,UL200206

main47550-42020supersedes 47550-63010iNCP50,55,NLP51..DXJ200206-200304

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-63010iNCP5#,NLP51..DX,F,GL,TX,U,UL200206

main47550-42020supersedes 47550-63010iNCP50,55,NLP51..DXJ200206-200304

47611CLEVER, PARKING BRAKE SHOE, RH

main47612-33010iNCP50,55,NLP51..DXJ200206-200304

47612ALEVER, PARKING BRAKE SHOE, LH

main47611-33010iNCP50,55,NLP51..DXJ200206-200304

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-42010iNCP50,55,NLP51..DXJ200206-200304

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-42010iNCP50,55,NLP51..DXJ200206-200304

9011906084

main90119-06084

13 parts on this diagram · 2 diagrams in section
