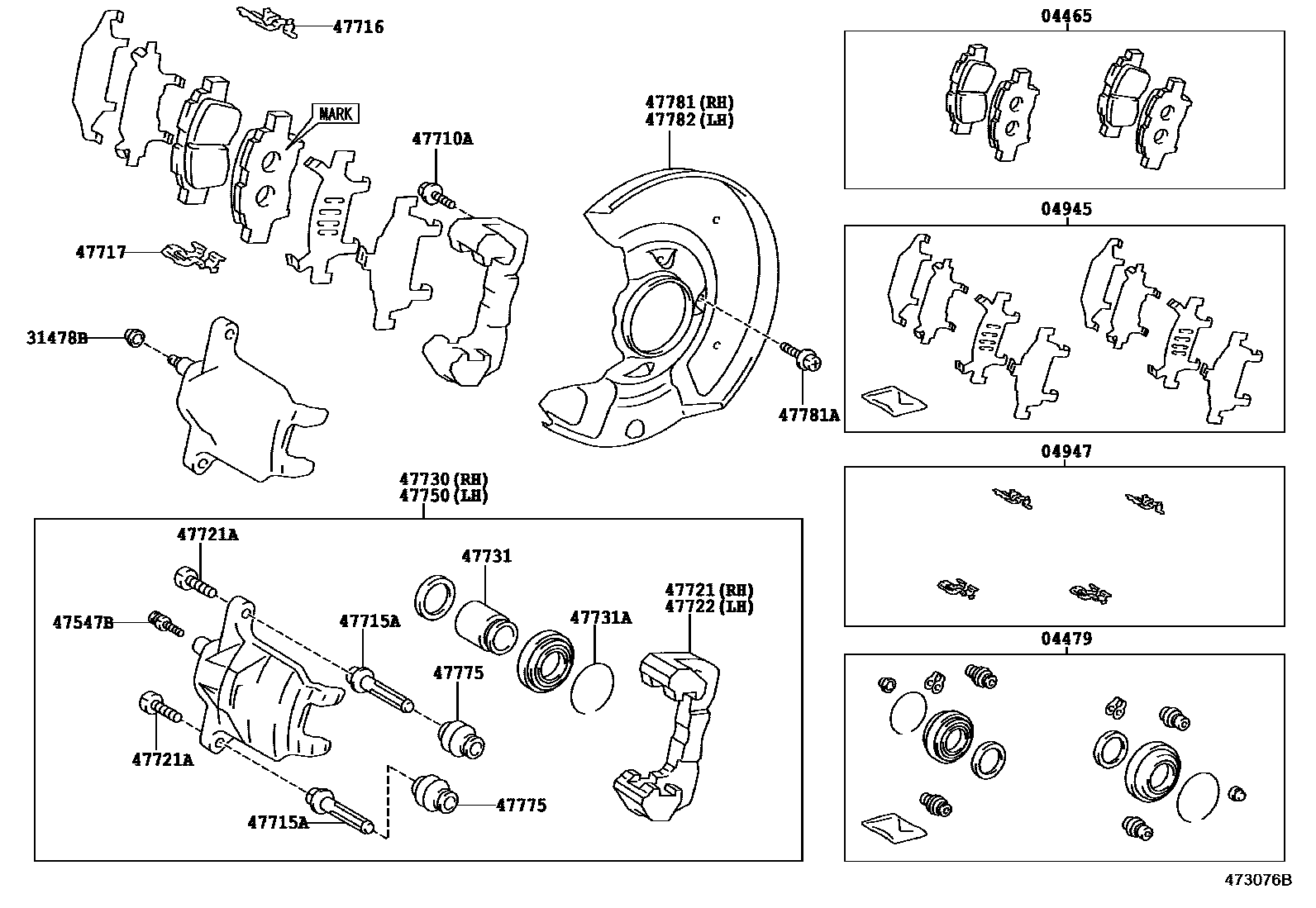

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-52090iNCP5#,NLP51200206-200912

main04465-52280iNCP5#200912

main04465-52022iNCP58,59..TX200206-200501

main04465-52230iNCP58,59..TX200501-201006

main04465-52290iNCP58,59..F; NCP58,59..TX201006-201310

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-47050iNCP5#201304

main04479-47020iNCP50,55,NLP51..DXJ200206-200304

main04479-52020iNCP58,59..F; NCP58,59..TX201006-201303

main04479-52021iNCP58,59..F; NCP58,59..TX201303-201310

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-52020iNCP5#,NLP51200206

main04945-20210iNCP58,59..F; NCP58,59..TX201006-201310

main04945-52060iNCP58,59..TX200501-201006

04947FITTING KIT, DISC BRAKE, FRONT

main04947-52030iNCP5#,NLP51200206

main04947-52010iNCP58,59..F; NCP58,59..TX201006-201310

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iNCP5#,NLP51200206

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iNCP5#,NLP51200206

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12314×4iNCP5#,NLP51200206-201409

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52010×4iNCP5#,NLP51200206

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-52030×2iNCP5#,NLP51200206

main47716-52020×2iNCP58,59..F; NCP58,59..TX201006-201310

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-52030×2iNCP5#,NLP51200206

main47717-52020×2iNCP58,59..TX200206-201006

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52030iNCP5#,NLP51200206

main47721-52020iNCP58,59..F; NCP58,59..TX201006-201310

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164×4iNCP5#,NLP51200206

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52030iNCP5#,NLP51200206

main47722-52020iNCP58,59..TX200206-201006

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52050iNCP5#,NLP51200206

main47730-52020iNCP58,59..TX200206-201006

47731PISTON, FRONT DISC BRAKE

main47731-12170×2iNCP5#,NLP51200206

main47731-52010×2iNCP58,59..TX200206-201006

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-66001×2iNCP5#,NLP51200206

main90522-64003×2iNCP58,59..F; NCP58,59..TX201006-201310

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52050iNCP5#,NLP51200206

main47750-52020iNCP58,59..F; NCP58,59..TX201006-201310

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-02130×4iNCP5#201304

main47775-52010×4iNCP5#,NLP51200206-201303

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52010iNCP50,55,NLP51..DXJ200206-200304

main47781-52020iNCP58,59..F; NCP58,59..TX201006-201310

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iNCP5#,NLP51..DX,F,GL,TX,U,UL200206-201409

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52010iNCP5#,NLP51..DX,F,GL,TX,U,UL200206-201409

main47782-52020iNCP58,59..TX200206-201006

21 parts on this diagram · 1 diagram in section
