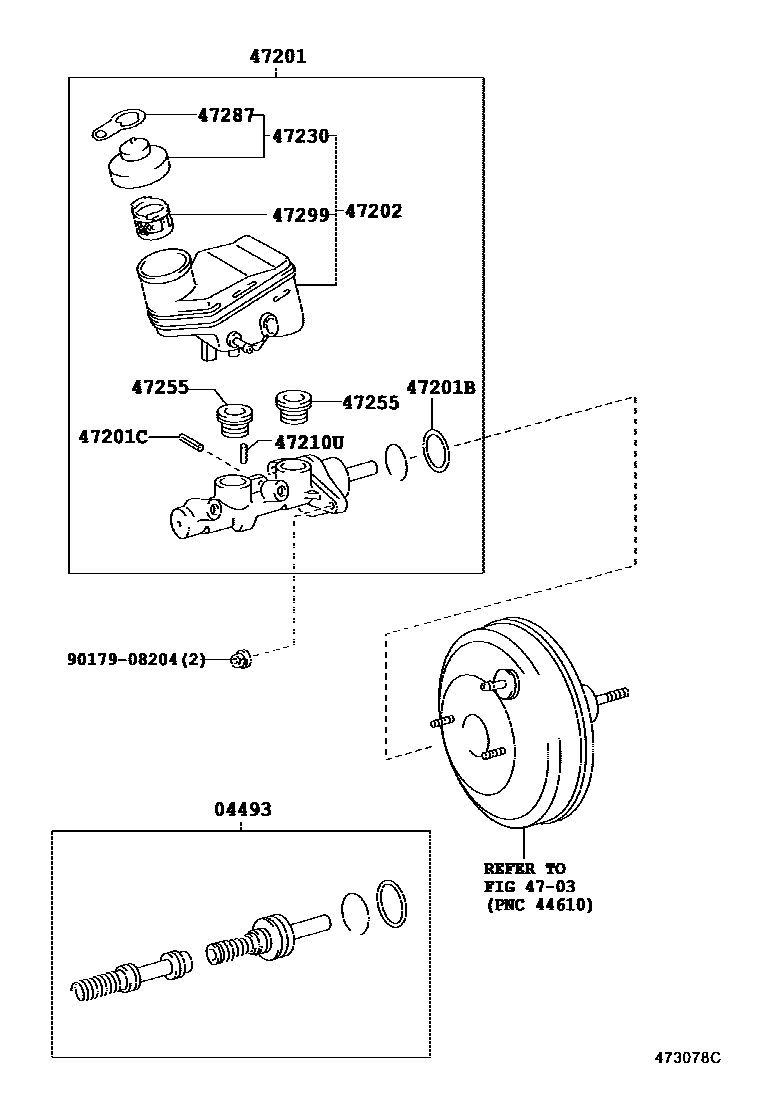

BRAKE MASTER CYLINDER

0001 1��(ABS) 0002 1��(ABS)

04493CYLINDER KIT, BRAKE MASTER

main04493-46010iNCP5#200808

main04493-52020iNCP5#,NLP51..DX,F,GL,TX,U,UL200206-200808

main04493-52030supersedes 04493-52020iNCP50,55,NLP51..DXJ200206-200304

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52031iNCP50,51,55,58,59,NLP51..5F..(DX,F,GL,U,UL)200206-200808

main47201-52032iNCP50,51,55,58,59..5F200808-201409

main47201-52041iNCP5#..4FC..(DX,F,GL,TX,U,UL)200206-200808

main47201-52042iNCP5#..4FC200808-201409

main47201-52051supersedes 47201-52031iNCP50,55,NLP51..5F..DXJ200206-200304

main47201-52061supersedes 47201-52041iNCP50,55..4FC..DXJ200206-200304

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iNCP50,55,NLP51..DXJ200206-200305

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15804iNCP50,55,NLP51..DXJ200206-200304

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52050iNCP50,55,NLP51..5F..DXJ200206-200304

main47220-52060iNCP50,55..4FC..DXJ200206-200304

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-14204iNCP5#,NLP51..DX,F,GL,TX,U,UL200206

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNCP50,55,NLP51..DXJ200206-200304

47255GROMMET, MASTER CYLINDER RESERVOIR

main31417-35010×2iNCP50,55,NLP51..DXJ200206-200304

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNCP50,55,NLP51..DXJ200206-200304

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iNCP50,55,NLP51..DXJ200206-200304

9017908204

main90179-08204

12 parts on this diagram · 2 diagrams in section
