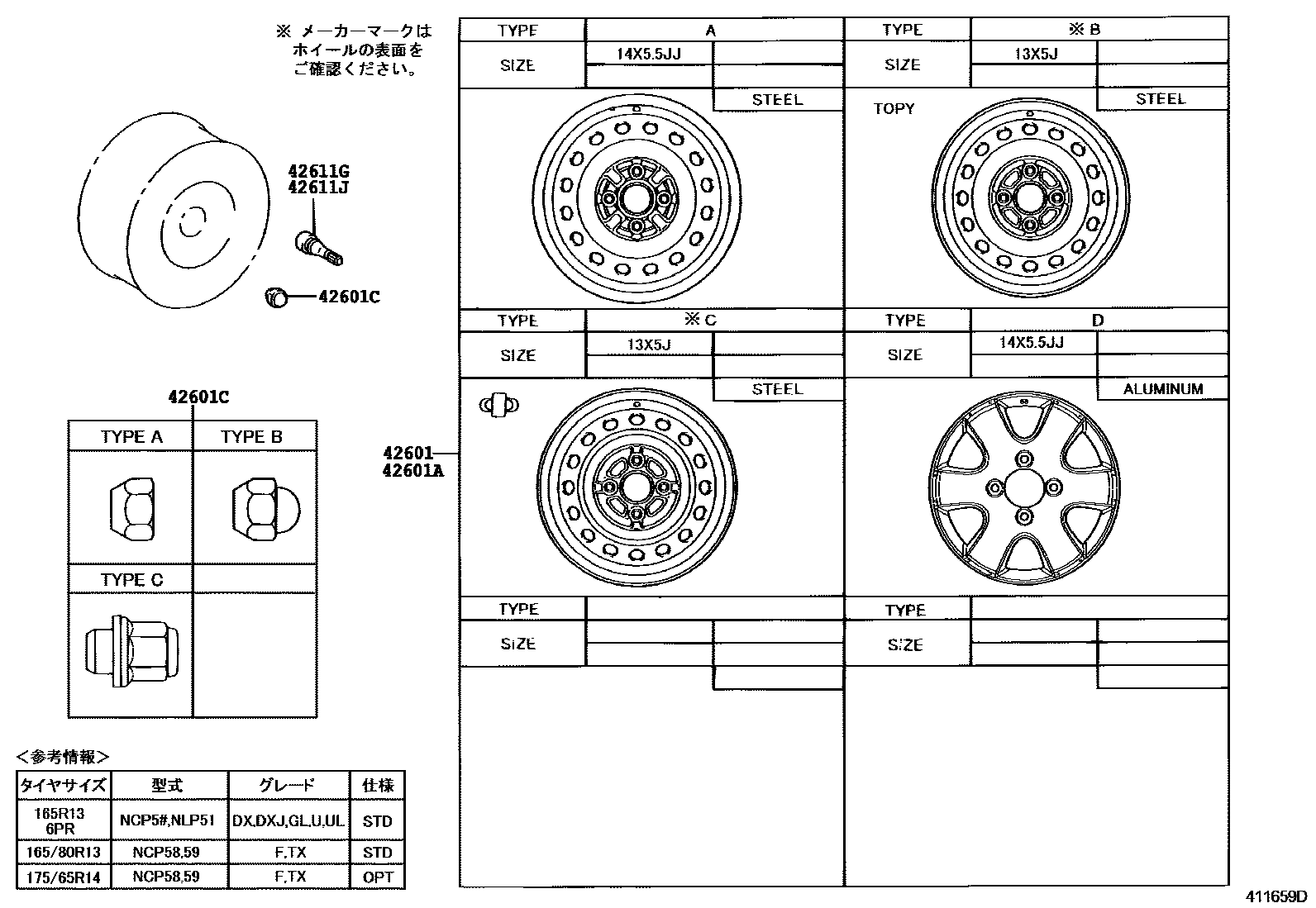

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-52230×4iNCP50,55,NLP51..DXJ200206-200304

main42611-52030×4iNCP58,59..TX201006-201310

main42611-52110×4iNCP58,59..F; NCP58,59..TX201006-201110

main42611-52111×4supersedes 42611-52260iNCP58,59..F; NCP58,59..TX201110-201204

main42611-52112×4supersedes 42611-52260iNCP58,59..F; NCP58,59..TX201205-201310

main42611-52250×4iNCP50,51,55,58,59,NLP51..F,GL,UL200206-201409

main42611-52260×4iNCP50,51,55,58,59,NLP51..F,GL,UL; NCP58,59..TX200206-200502

42601AWHEEL, DISC (FOR SPARE)

main42611-52230iNCP50,55,NLP51..DXJ200206-200304

main42611-52030iNCP58,59..TX200206-201006

main42611-52110iNCP58,59..F; NCP58,59..TX201006-201110

main42611-52111iNCP58,59..F; NCP58,59..TX201110-201204

main42611-52112supersedes 42611-52260iNCP58,59..F; NCP58,59..TX201205-201310

main42611-52250iNCP50,51,55,58,59,NLP51..F,GL,UL200206-201409

main42611-52260iNCP50,51,55,58,59,NLP51..F,GL,UL; NCP58,59..TX200206-200502

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iNCP58,59..TX200206-201310

main90942-01021×16iNCP5#,NLP51..DX,F,GL,U,UL200206-200307

main90942-01082×16iNCP5#,NLP51..DX,F,GL,U,UL200308

main90942-01033×16iNCP58,59..F; NCP58,59..TX201006-201310

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iNCP5#,NLP51..DX,F,GL,TX,U,UL200206

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNCP50,55,NLP51..DXJ200206-200304

5 parts on this diagram · 3 diagrams in section
