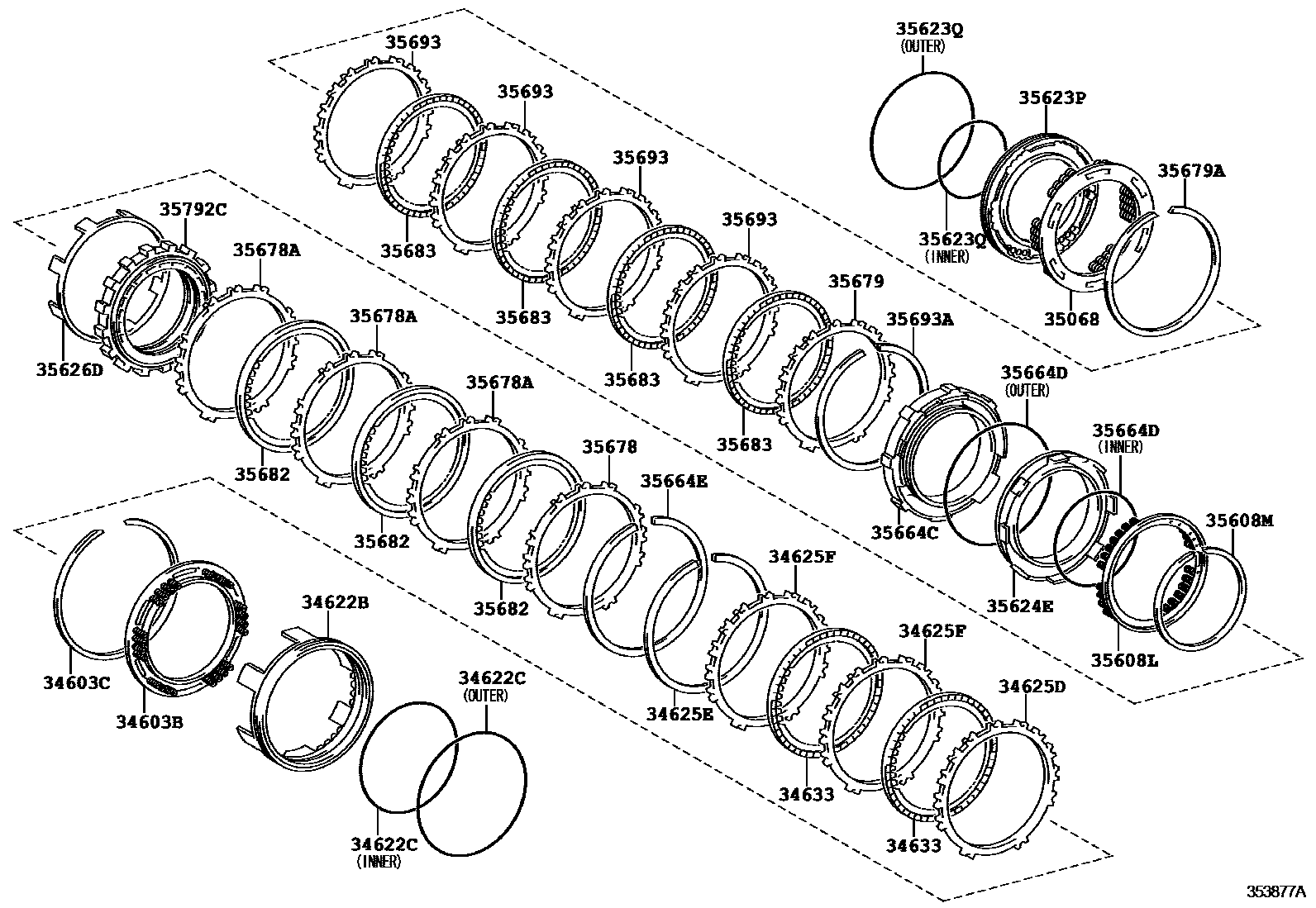

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U340E,U340F 0002 1U441E

34603BSPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-52010iNCP50..4FC200206

main34603-52020iNCP51,52,55,58,59..4FC200206

34603CRING, HOLE SNAP(FOR OVERDRIVE BRAKE RETURN SPRING)

main90520-99047iNCP50..4FC200206

main90520-99055iNCP51,52,55,58,59..4FC200206

34622BPISTON, 2ND COAST & OVERDRIVE BRAKE

main34622-52010iNCP50..4FC200206

main34622-52021iNCP51,52,55,58,59..4FC200206

34622CRING, O(FOR 2ND COAST & OVERDRIVE)

main90301-99113iNCP50..4FC200206

main90301-99115iNCP50..4FC200206

main90301-99121iNCP51,52,55,58,59..4FC200206

main90301-99122iNCP51,52,55,58,59..4FC200206

34625DFLANGE, 2ND COAST & OVERDRIVE BRAKE

main34625-52010iNCP50..4FC200206

main34625-52020iNCP50..4FC200206

main34625-52030iNCP50..4FC200206

main34625-52040iNCP50..4FC200206

main34625-52050iNCP50..4FC200206

main34625-52071iNCP51,52,55,58,59..4FC200206

main34625-52081iNCP51,52,55,58,59..4FC200206

main34625-52091iNCP51,52,55,58,59..4FC200206

main34625-52100iNCP50..4FC200206

main34625-52110iNCP51,52,55,58,59..4FC200206

34625ERING, HOLE SNAP(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE)

main90520-99046iNCP50..4FC200206

main90520-99050iNCP51,52,55,58,59..4FC200206

34625FFLANGE, 2ND COAST & OVERDRIVE BRAKE, NO.2

main34625-52060×2iNCP51,52,55,58,59..4FC200206

34633DISC, 2ND COAST & OVERDRIVE BRAKE

main34633-52020×2iNCP51,52,55,58,59..4FC200206

main34633-52030×2iNCP50..4FC200206-201209

main34633-52040×2iNCP50..4FC201209

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-52020iNCP50..4FC200206

main35068-52030iNCP51,52,55,58,59..4FC200206

35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-52010iNCP50..4FC200206

main35608-52020iNCP51,52,55,58,59..4FC200206

35608MRING, SNAP(FOR 2ND BRAKE PISTON RETURN SPRING)

main90520-99048iNCP51,52,55,58,59..4FC200206

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-52030iNCP51,52,55,58,59..4FC200206

35623QRING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2)

main90301-98002iNCP51,52,55,58,59..4FC200206

main90301-99117iNCP51,52,55,58,59..4FC200206

35624EPISTON, 2ND BRAKE

main35624-52010iNCP50..4FC200206

main35624-52020iNCP51,52,55,58,59..4FC200206

35626DSLEEVE, 2ND BRAKE PISTON

main35626-52020iNCP51,52,55,58,59..4FC200206

35664CCYLINDER, 2ND BRAKE

main35664-52010iNCP50..4FC200206

main35664-52020iNCP51,52,55,58,59..4FC200206

35664DRING, O(FOR 2ND BRAKE CYLINDER)

main90301-99114iNCP50..4FC200206

main90301-99116iNCP50..4FC200206

main90301-99118iNCP51,52,55,58,59..4FC200206

main90301-99119iNCP51,52,55,58,59..4FC200206

35664ERING, HOLE SNAP(FOR 2ND BRAKE CYLINDER)

main90520-99046iNCP50..4FC200206

main90520-99050iNCP51,52,55,58,59..4FC200206

35678FLANGE, BRAKE(FOR 2ND BRAKE)

main35678-52010iNCP50..4FC200206

main35678-52020iNCP51,52,55,58,59..4FC200206

main35678-52030iNCP51,52,55,58,59..4FC200206

main35678-52040iNCP51,52,55,58,59..4FC200206

main35678-52050iNCP51,52,55,58,59..4FC200206

35678AFLANGE, BRAKE, NO.1(FOR 2ND BRAKE)

main35678-52020×3iNCP51,52,55,58,59..4FC200206

35679FLANGE, BRAKE(FOR 1ST & REVERSE)

main35679-52010iNCP50..4FC200206

main35679-52020iNCP51,52,55,58,59..4FC200206

main35679-52030iNCP51,52,55,58,59..4FC200206

main35679-52040iNCP51,52,55,58,59..4FC200206

main35679-52050iNCP51,52,55,58,59..4FC200206

35679ARING, HOLE SNAP(FOR BRAKE FLANGE)

main90520-99042iNCP50..4FC200206

main90520-99054iNCP51,52,55,58,59..4FC200206

35682DISC, BRAKE(FOR 2ND BRAKE)

main35682-52010×2iNCP50..4FC200206

main35682-52020×3iNCP51,52,55,58,59..4FC200206

35683DISC, BRAKE(FOR 1ST & REVERSE)

main35683-52020×4iNCP50..4FC200206-200607

main35683-52040×4iNCP51,52,55,58,59..4FC200206-200508

main35683-52050×4iNCP51,52,55,58,59..4FC200508

main35683-52070×4iNCP50..4FC200607

35693PLATE, BRAKE (FOR 1ST & REVERSE)

main35693-52020×4iNCP50..4FC200206

main35693-52040×4iNCP51,52,55,58,59..4FC200206

35693ARING, SNAP(FOR 1ST & REVERSE PLATE)

main90520-99057iNCP51,52,55,58,59..4FC200206

35792CCLUTCH, 1 WAY, NO.2

main35792-52010iNCP50..4FC200206-201110

main35792-52021iNCP51,52,55,58,59..4FC200206

main35792-52030iNCP50..4FC201110

27 parts on this diagram · 2 diagrams in section
