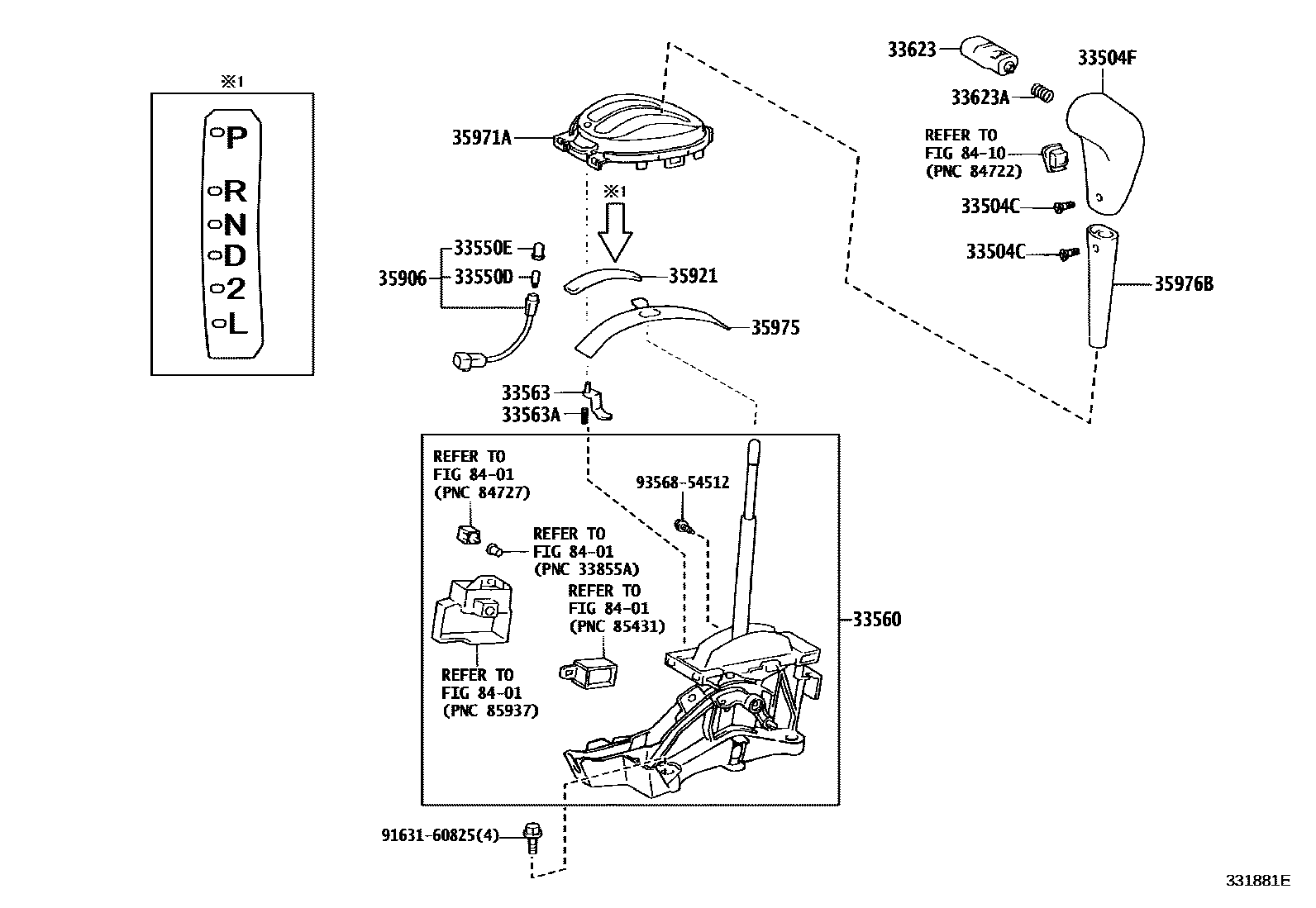

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40221iNCP5#..4FC200206

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14050-B8iNCP50,51,55,58,59,NLP51..5F200206-201409

DK.GRAY,TRIM1#

sub33504-14050

sub33504-14070

main33542-52010-B4iNCP5#..4FC200206

DK.GRAY,TRIM1#

33550DBULB, POSITION INDICATOR LAMP

main90981-11014iNCP5#..4FC200206

33550ECAP, POSITION INDICATOR LAMP

main35956-52030iNCP5#..4FC200206

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-52020iNCP5#..4FC200206-201104

sub33560-52021

main33560-52021iNCP5#..4FC201105

33563BUTTON, SHIFT LOCK RELEASE

main33563-52030iNCP5#..4FC200206

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-05055iNCP5#..4FC200206

33623BUTTON, SHIFT LEVER KNOB

main33623-52010-B4iNCP5#..4FC200206

DK.GRAY,TRIM1#

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-06082iNCP5#..4FC200206

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-52010iNCP5#..4FC200206

35921PLATE, CONTROL POSITION INDICATOR

main35921-52010iNCP5#..4FC200206

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-52110iNCP5#..4FC200206

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-52030iNCP5#..4FC200206

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-52010-B4iNCP5#..4FC200206

DK.GRAY,TRIM1#

8401

8410

9163160825

main91631-60825

9356854512

main93568-54512

18 parts on this diagram · 3 diagrams in section
