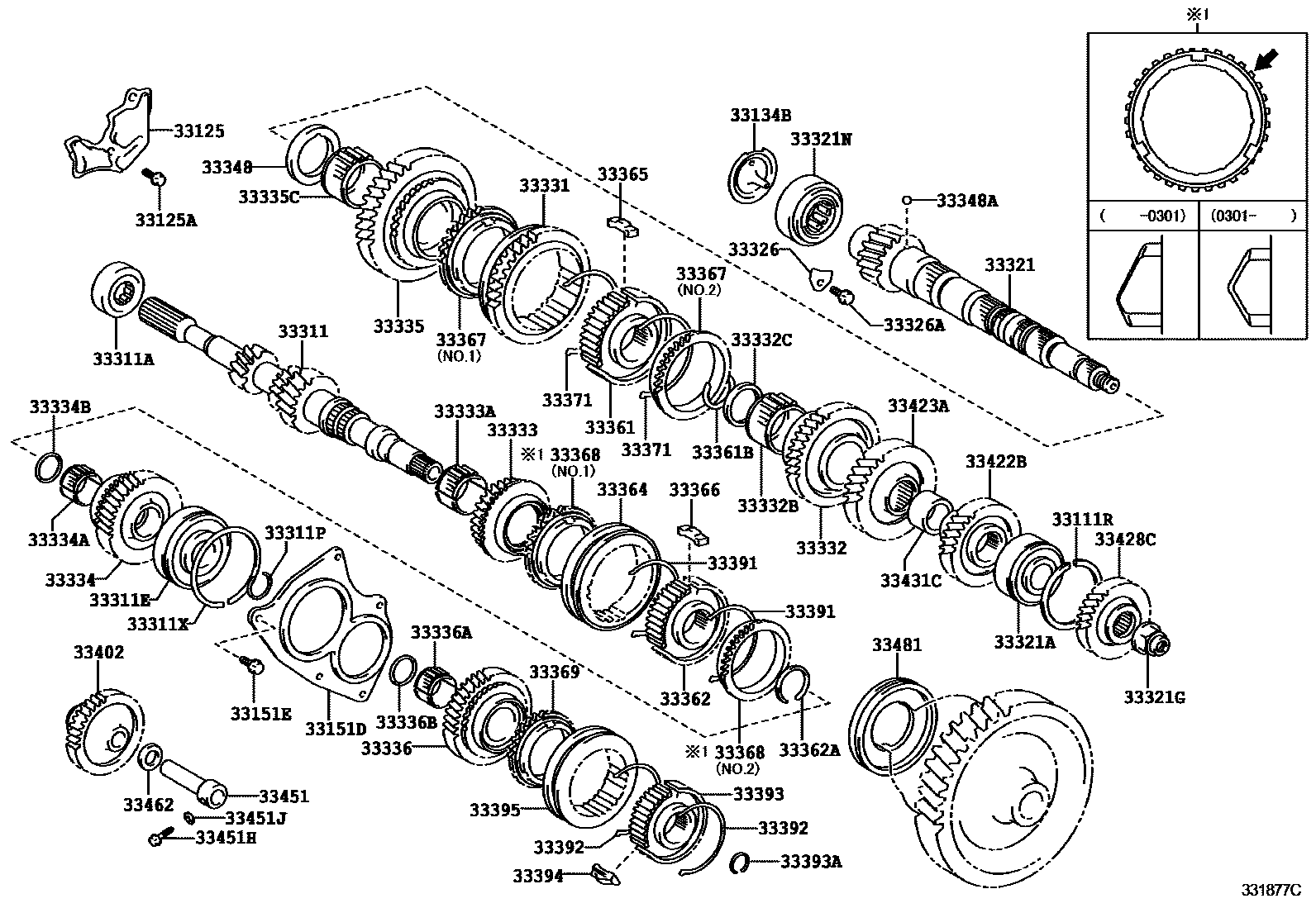

TRANSMISSION GEAR (MTM)

33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)

main90520-57002iNCP50,51,55,58,59,NLP51..5F200206

33125RECEIVER, MANUAL TRANSAXLE CASE

main33125-12011iNCP50,51,55,58,59,NLP51..5F200206

33125ABOLT(FOR TRANSAXLE CASE RECEIVER)

main91611-B0812iNCP50,51,55,58,59,NLP51..5F200206

33134BCOVER, OUTPUT SHAFT(MTM)

main33134-12022iNCP50,51,55,58,59,NLP51..5F200206

33151DRETAINER, BEARING, REAR(MTM)

main33151-52010iNCP50,51,55,58,59,NLP51..5F200206

33151EBOLT(FOR REAR BEARING RETAINER)

main90119-08944×5iNCP50,51,55,58,59,NLP51..5F200206

33311SHAFT, INPUT

main33311-12230iNCP50,51,55,58,59,NLP51..5F200206-201002

main33311-12231iNCP50,51,55,58,59..5F201002

33311ABEARING (FOR INPUT SHAFT FRONT)

main90365-25021iNCP50,51,55,58,59,NLP51..5F200206

33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)

main90363-25048iNCP50,51,55,58,59,NLP51..5F200206

33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)

main90520-22006iNCP50,51,55,58,59,NLP51..5F200206

main90520-22007iNCP50,51,55,58,59,NLP51..5F200206

main90520-22008iNCP50,51,55,58,59,NLP51..5F200206

main90520-22009iNCP50,51,55,58,59,NLP51..5F200206

main90520-22010iNCP50,51,55,58,59,NLP51..5F200206

main90520-22011iNCP50,51,55,58,59,NLP51..5F200206

33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)

main90520-64002iNCP50,51,55,58,59,NLP51..5F200206

33321SHAFT, OUTPUT

main33321-12061iNLP51200206-200706

main33321-12071iNCP51,58..5F200206-200706

main33321-17011iNCP50,55,59..5F200206-200706

main33321-52090iNLP51200706-200708

main33321-52100iNCP51,58..5F200706-201002

main33321-52101iNCP51,58..5F201002

main33321-52110iNCP50,55,59..5F200706-201002

main33321-52111iNCP50,55,59..5F201002

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-25060iNCP51,55,58,59..5F201111

main90363-25061iNCP55,59..5F200206-201111

main90363-25066iNCP50..5F200206

main90903-63010iNCP51,58,NLP51..5F200206-200908

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-18005iNCP50,51,55,58,59,NLP51..5F200206

33321NBEARING (FOR OUTPUT SHAFT FRONT)

main90365-33005iNCP50,51,55,58,59,NLP51..5F200206

33326PLATE, BEARING LOCK

main33326-12010iNCP50,51,55,58,59,NLP51..5F200206

33326ABOLT (FOR BEARING LOCK PLATE)

main91611-B0812iNCP50,51,55,58,59,NLP51..5F200206

33331GEAR, REVERSE

main33331-12060iNCP50,51,55,58,59,NLP51..5F200206

33332GEAR, 2ND

main33033-12060iNCP50,51,55,58,59,NLP51..5F200206-200706

main33033-12090iNCP50,51,55,58,59,NLP51..5F200706

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-32014iNCP50,51,55,58,59,NLP51..5F200206

33332CSPACER (FOR 2ND GEAR BEARING)

main90560-32008iNCP50,51,55,58,59,NLP51..5F200206

33333GEAR, 3RD

main33034-12110iNCP5#,NLP51..5F200206-200301

main33034-12111iNCP50,51,55,58,59,NLP51..5F200301-200706

main33034-12150iNCP50,51,55,58,59,NLP51..5F200706

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-31002iNCP50,51,55,58,59,NLP51..5F200206

33334GEAR, 4TH

main33035-12140iNCP50,55,59,NLP51..5F200706-201104

main33035-12141iNCP50,55,59..5F201104

main33035-20160iNCP50,55,59,NLP51..5F200206-200301

main33035-20161iNCP50,55,59,NLP51..5F200301-200706

main33035-20170iNCP51,58..5F200206-200301

main33035-20171iNCP51,58..5F200301-200706

main33035-52060iNCP51,58..5F200706-201104

main33035-52061iNCP51,58..5F201104

33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)

main90364-29002iNCP50,51,55,58,59,NLP51..5F200206

33334BSPACER (FOR 4TH GEAR BEARING)

main90560-29001iNCP50,51,55,58,59,NLP51..5F200206

33335GEAR, 1ST

main33032-12060iNCP50,51,55,58,59,NLP51..5F200206-200706

main33032-12090iNCP50,51,55,58,59,NLP51..5F200706-201104

main33032-12091iNCP50,51,55,58,59..5F201104

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-38007iNCP50,51,55,58,59,NLP51..5F200206

33336GEAR, 5TH

main33036-12100iNCP50,55,59..5F200206-200501

main33036-12110iNLP51200206-200501

main33036-12120iNLP51200706-200708

main33036-12130iNCP50,55,59..5F200706

main33036-12140iNCP51,58..5F200706

main33036-20060iNLP51200501-200706

main33036-20070iNCP50,55,59..5F200501-200706

main33036-20090iNCP51,58..5F200206-200501

main33036-42010iNCP51,58..5F200501-200706

33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)

main90364-24006iNCP50,51,55,58,59,NLP51..5F200206

33336BSPACER (FOR 5TH GEAR BEARING)

main90560-25006iNCP50,51,55,58,59,NLP51..5F200206

33348WASHER, 1ST GEAR THRUST

main33348-12010iNCP50,51,55,58,59,NLP51..5F200206

33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)

main90360-05012iNCP50,51,55,58,59,NLP51..5F200206

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-12030iNCP50,51,55,58,59,NLP51..5F200206

33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)

main90520-29018iNCP50,51,55,58,59,NLP51..5F200206

main90520-29019iNCP50,51,55,58,59,NLP51..5F200206

main90520-29020iNCP50,51,55,58,59,NLP51..5F200206

main90520-29021iNCP50,51,55,58,59,NLP51..5F200206

main90520-29022iNCP50,51,55,58,59,NLP51..5F200206

main90520-29023iNCP50,51,55,58,59,NLP51..5F200206

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-12020iNCP50,51,55,58,59,NLP51..5F200206

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90520-27046iNCP50,51,55,58,59,NLP51..5F200206

main90520-27047iNCP50,51,55,58,59,NLP51..5F200206

main90520-27048iNCP50,51,55,58,59,NLP51..5F200206

main90520-27049iNCP50,51,55,58,59,NLP51..5F200206

main90520-27050iNCP50,51,55,58,59,NLP51..5F200206

main90520-27051iNCP50,51,55,58,59,NLP51..5F200206

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-12050iNCP50,51,55,58,59,NLP51..5F200301-200901

main33364-12051iNCP50,51,55,58,59..5F200901

main33364-20031iNCP5#,NLP51..5F200206-200301

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-12021×3iNCP50,51,55,58,59,NLP51..5F200206-200407

main33365-52020×3iNCP50,51,55,58,59,NLP51..5F200407

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-12020×3iNCP50,51,55,58,59,NLP51..5F200206-200407

main33366-52020×3iNCP50,51,55,58,59,NLP51..5F200407

33367RING, SYNCHRONIZER, NO.1

main33367-12140iNCP50,51,55,58,59,NLP51..5F200206

main33367-12150iNCP50,51,55,58,59,NLP51..5F200206

33368RING, SYNCHRONIZER, NO.2

main33368-12130iNCP5#,NLP51..5F200206-200301

main33368-12140iNCP5#,NLP51..5F200206-200301

main33368-12200×2iNCP50,51,55,58,59,NLP51..5F200301

33369RING, SYNCHRONIZER, NO.3

main33369-20040iNCP50,51,55,58,59,NLP51..5F200206

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-12020×2iNCP50,51,55,58,59,NLP51..5F200206-200407

main33371-52020×2iNCP50,51,55,58,59,NLP51..5F200407

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33391-12020×2iNCP50,51,55,58,59,NLP51..5F200206-200407

main33391-52010×2iNCP50,51,55,58,59,NLP51..5F200407

33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3

main33391-12030×2iNCP50,51,55,58,59,NLP51..5F200206

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-12040iNCP50,51,55,58,59,NLP51..5F200206

33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

main90520-18002iNCP50,51,55,58,59,NLP51..5F200206

main90520-18003iNCP50,51,55,58,59,NLP51..5F200206

main90520-18004iNCP50,51,55,58,59,NLP51..5F200206

main90520-18006iNCP50,51,55,58,59,NLP51..5F200206

main90520-18007iNCP50,51,55,58,59,NLP51..5F200206

main90520-18008iNCP50,51,55,58,59,NLP51..5F200206

main90520-18009iNCP50,51,55,58,59,NLP51..5F200206

33394KEY, SYNCHROMESH SHIFTING, NO.3

main33394-12011×3iNCP50,51,55,58,59,NLP51..5F200206-200407

main33394-52020×3iNCP50,51,55,58,59,NLP51..5F200407

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-20040iNCP50,51,55,58,59,NLP51..5F200206-200504

main33395-20041iNCP50,51,55,58,59,NLP51..5F200504

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-12041iNCP50,51,55,58,59,NLP51..5F200206-200407

main33402-12042iNCP50,51,55,58,59,NLP51..5F200407

33422BGEAR, 4TH DRIVEN

main33422-10040iNCP51,58..5F200206-200706

main33422-12050iNCP50,55,59,NLP51..5F200206-200706

main33422-12090iNCP50,55,59,NLP51..5F200706

main33422-52040iNCP51,58..5F200706

33423AGEAR, 3RD DRIVEN

main33423-12010iNCP50,51,55,58,59,NLP51..5F200206

33428CGEAR, 5TH DRIVEN

main33428-10040iNCP51,58..5F200206-200501

main33428-12050iNCP50,55,59..5F200501-200706

main33428-12060iNLP51200501-200706

main33428-12070iNCP50,55,59..5F200206-200501

main33428-12080iNLP51200206-200501

main33428-12100iNLP51200706-200708

main33428-12110iNCP50,55,59..5F200706

main33428-12120iNCP51,58..5F200706

main33428-42010iNCP51,58..5F200501-200706

33431CSPACER, OUTPUT GEAR

main33431-12010iNCP50,51,55,58,59,NLP51..5F200206

33451SHAFT, REVERSE IDLER GEAR

main33451-12021iNCP50,51,55,58,59,NLP51..5F200206

33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)

main90109-08097iNCP50,51,55,58,59,NLP51..5F200206

33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)

main90430-08010iNCP50,51,55,58,59,NLP51..5F200206

33462WASHER, REVERSE IDLER THRUST

main33462-12010iNCP50,51,55,58,59,NLP51..5F200206-201209

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-12040iNCP50,51,58,NLP51..5F200206

main33481-16050iNCP55,59..5F200206

60 parts on this diagram · 1 diagram in section
